6-37
ASUS RS520-E8-RS8, RS520-E8-RS12-E
6.4.4 Preferences

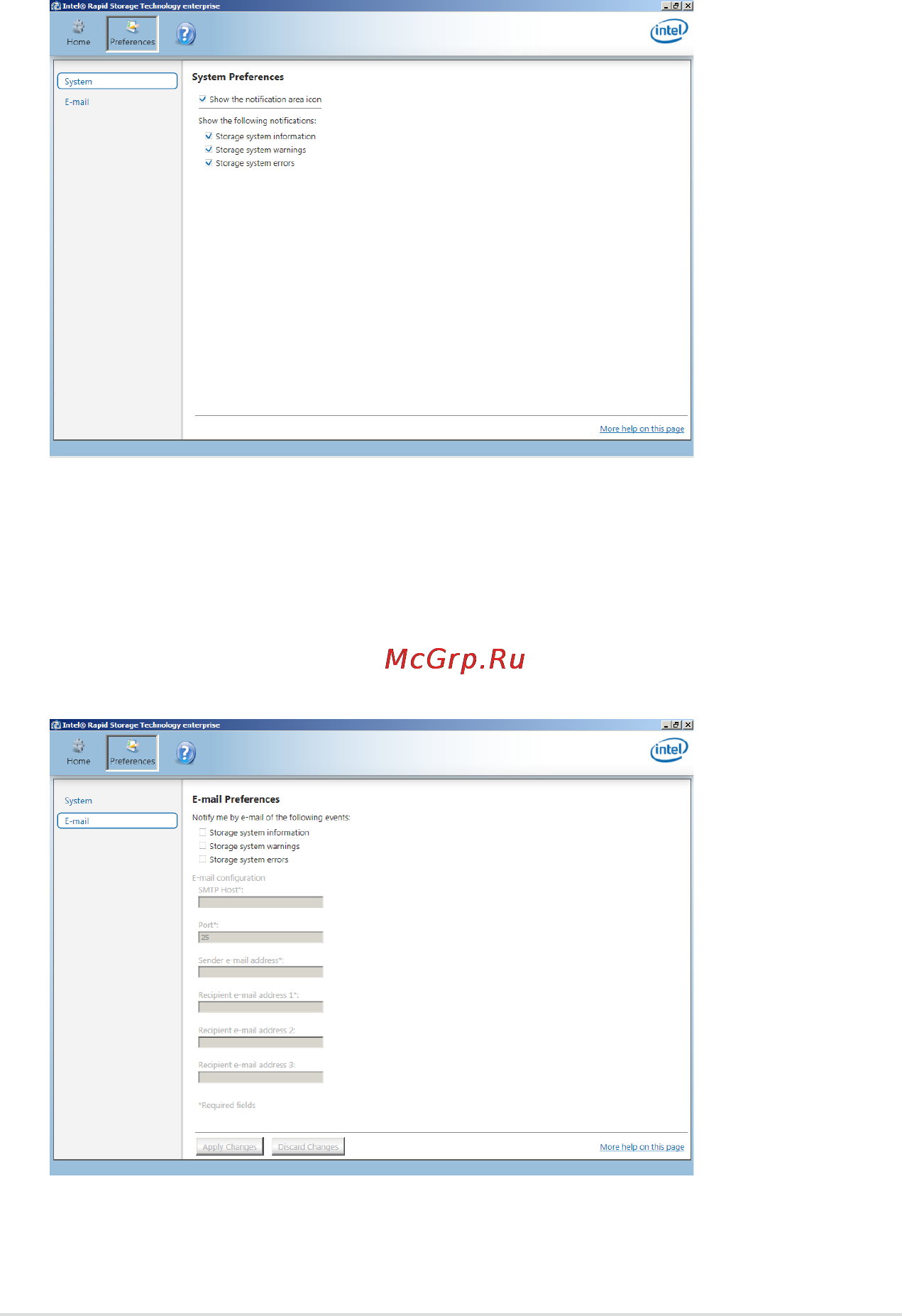

System Preferences
Allow you to set to show the notication area icon and show system information, warning, or
errors here.
E-Mail Preferences
Allow you to set to sent e-mail of the following events:
• Storage system information
• Storage system warnings
• Storage system errors
