7-25ASUS RS520-E8-RS8, RS520-E8-RS12-E
7.7 Intel
®
Rapid Storage Technology enterprise 4.0
installation
This section provides the instructions on how to install the Intel
®
Rapid Storage Technology
enterprise 4.0 on the system.
You need to manually install the Intel
®
Rapid Storage Technology enterprise 4.0 utility on a
Windows
®
operating system.
To install the Intel
®
Rapid Storage Technology enterprise 4.0 utility:
1. Restart the computer, and then log on with
Administrator
privileges.

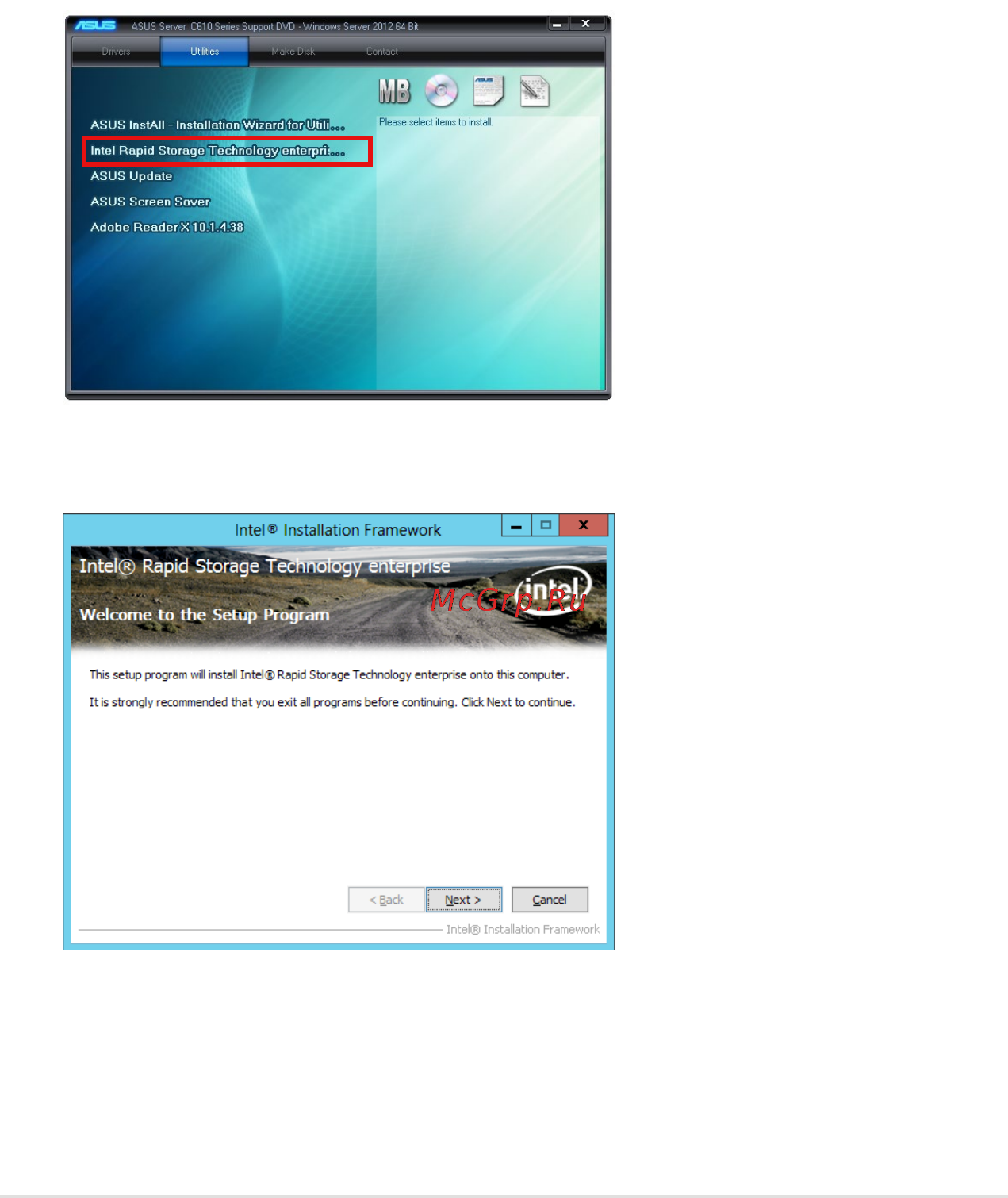

2. Insert the motherboard/system support DVD to the optical drive, and nd the utility
menu.
3. Click the
Intel
®
Rapid Storage Technology enterprise 4.0
to begin installation.
4. When the
Welcome to the Setup Program
appears, click
Next
to start the installation.
