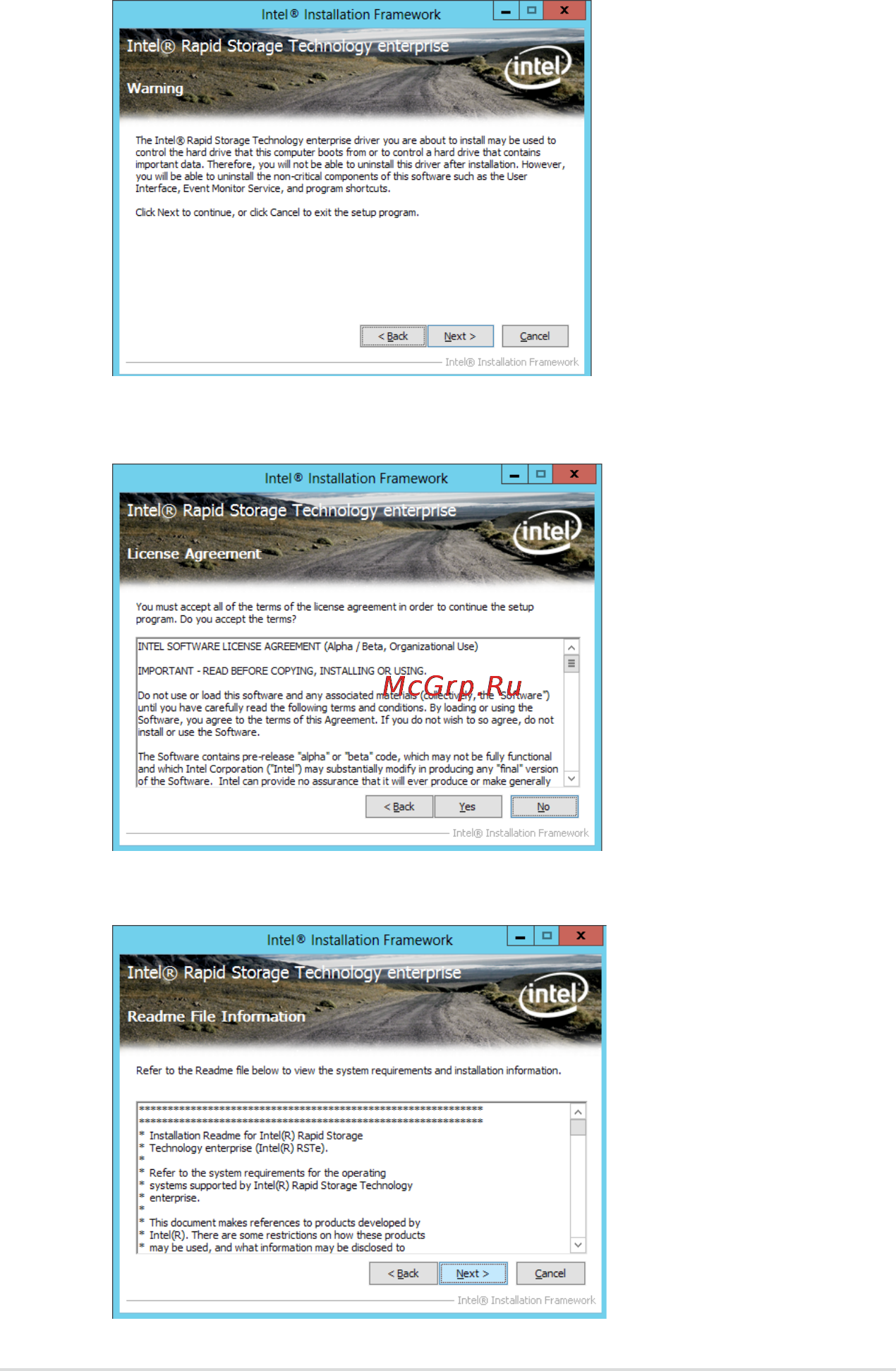

7-26 Chapter 7: Driver installation
5. Read the
Warning
message and click
Next
to continue.
6. Read the License Agreement and click Yes to continue.
7. Read the
Readme File Information
and click
Next
to continue.
