7-27ASUS RS520-E8-RS8, RS520-E8-RS12-E

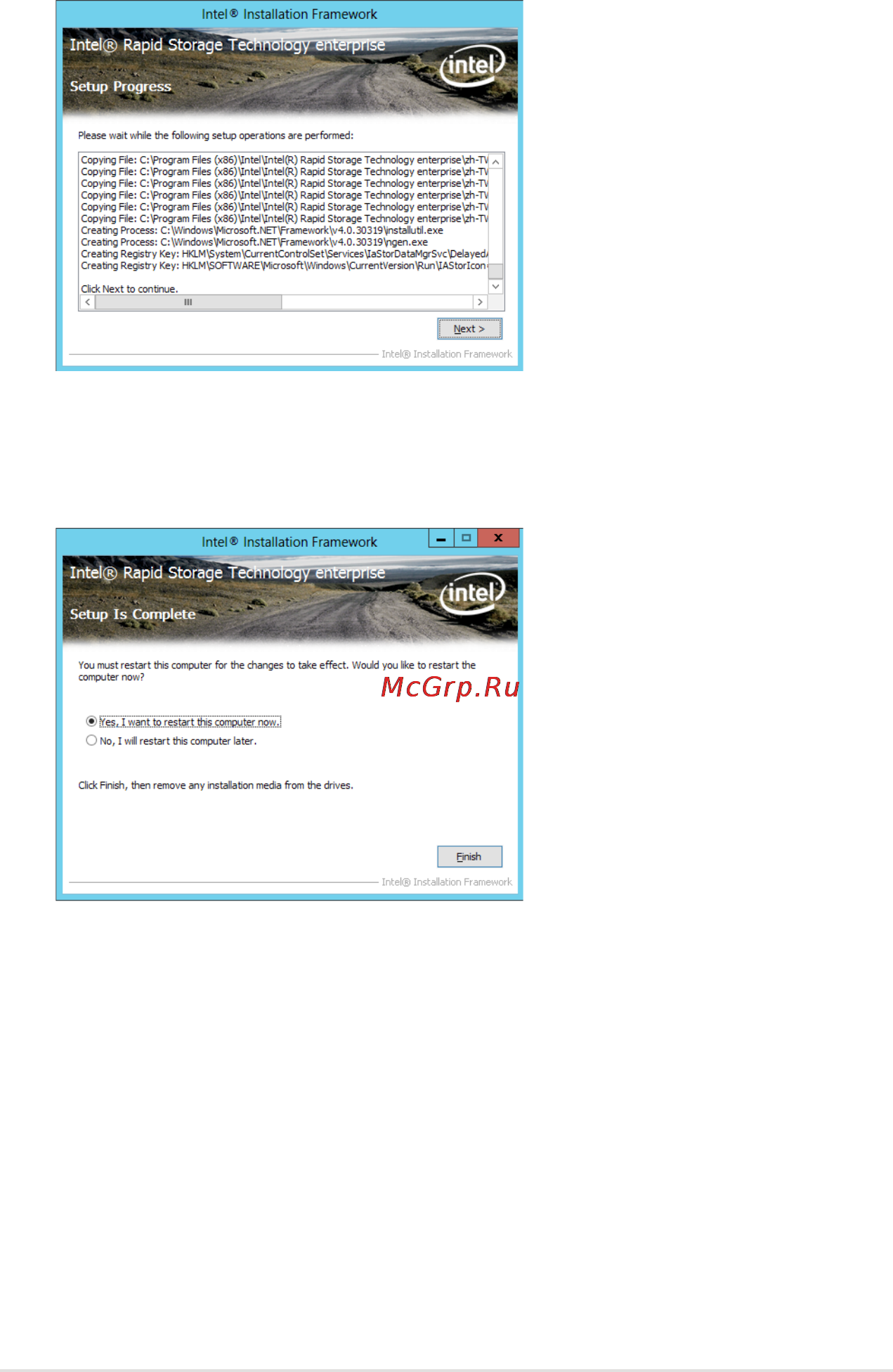

9. Select
Yes, I want to restart my computer now
and click
Finish
to restart your
computer before using the program.
8. After completing the installation, click
Next
to complete the setup process.
