Chapter 1: Product introduction
1-8
Asset tag

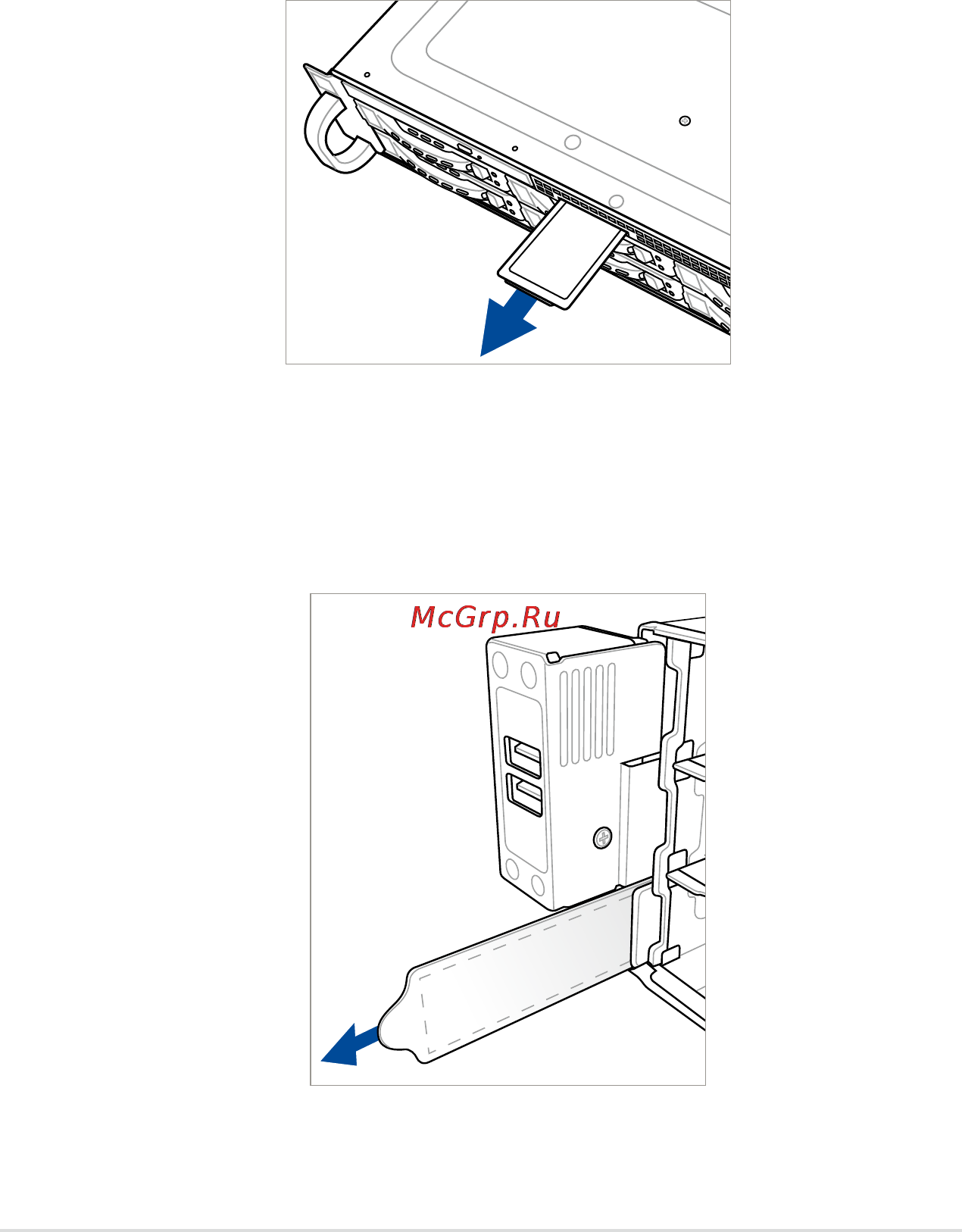

The Asset tag is a simple but useful device that is conveniently located on the front panel of
the server that you can pull out or easily slide back in. It has a piece of paper that allows you
to write down important information about to the server.
RS520-E8-RS8
RS520-E8-RS12-E
