ASUS RS520-E8-RS8, RS520-E8-RS12-E
1-11
1.7 LED information

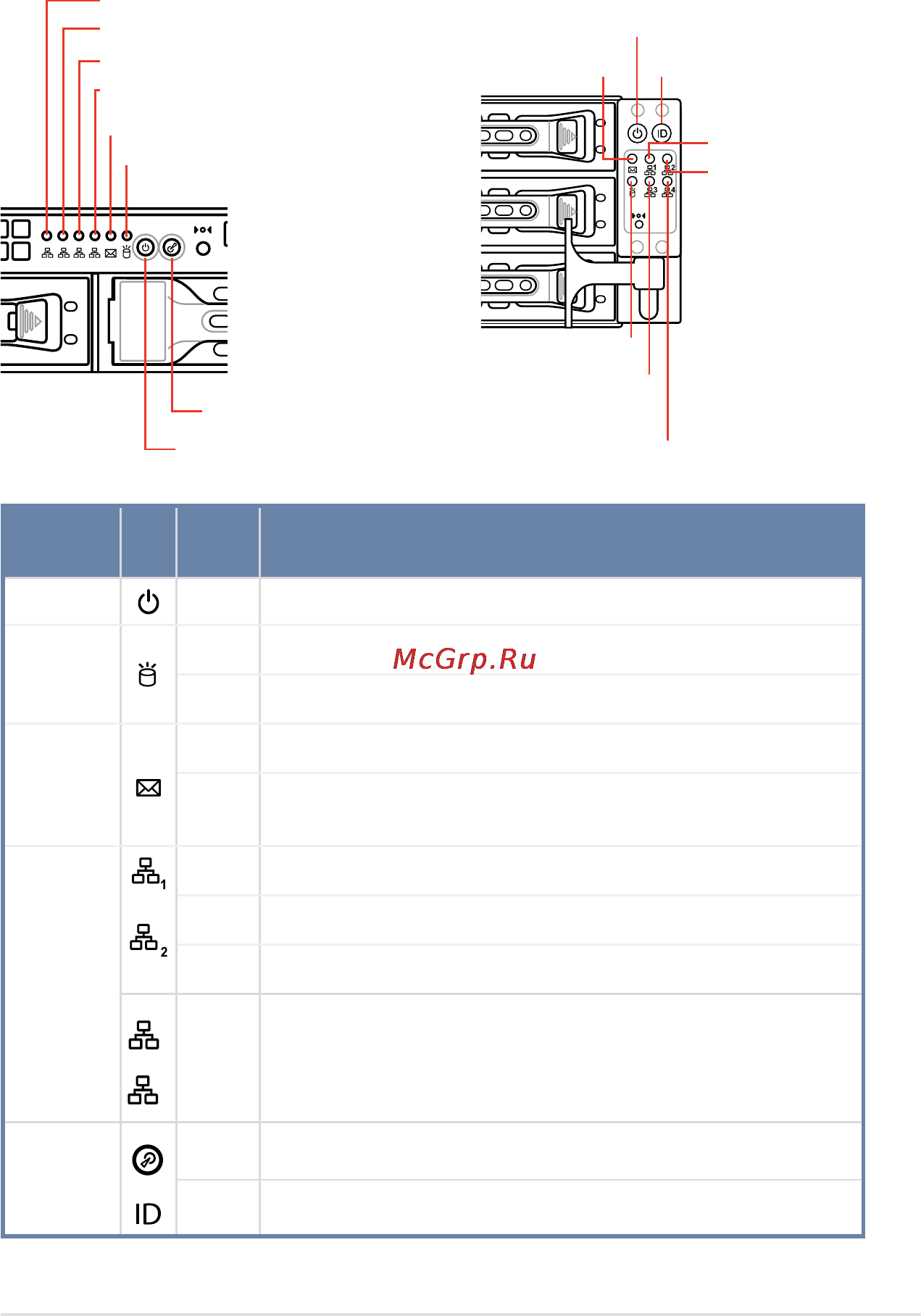

1.7.1 Front panel LEDs
LED Icon
Display
status
Description
Power LED ON System power ON
HDD
Access
LED
OFF No activity
Blinking Read/write data into the HDD
Message
LED
OFF System is normal; no incoming event
ON
With the onboard ASMB8-iKVM: a hardware monitor event is
indicated
LAN LEDs
OFF No LAN connection
Blinking LAN is transmitting or receiving data
ON LAN connection is present
3
4
Blinking LAN is transmitting or receiving data
Location
LED
1
2
Q-Code
DM
1
2
3
4
RESET
ON Location switched is pressed
OFF Normal status (Press the location switch again to turn off)
RS520-E8-RS8
LAN4 LED (for Mezzanine card)
LAN3 LED (for Mezzanine card)
1234
RS520-E8-RS12-E
LAN2 LED
LAN1 LED
Message LED
HDD Access LED
Power button with LED
Location button with LED
Location button with LED
Power button with LED
LAN4 LED (for Mezzanine card)
LAN3 LED (for Mezzanine
card)
HDD Access LED
Message LED
LAN1 LED
LAN2 LED
