2-5
ASUS RS520-E8-RS8, RS520-E8-RS12-E

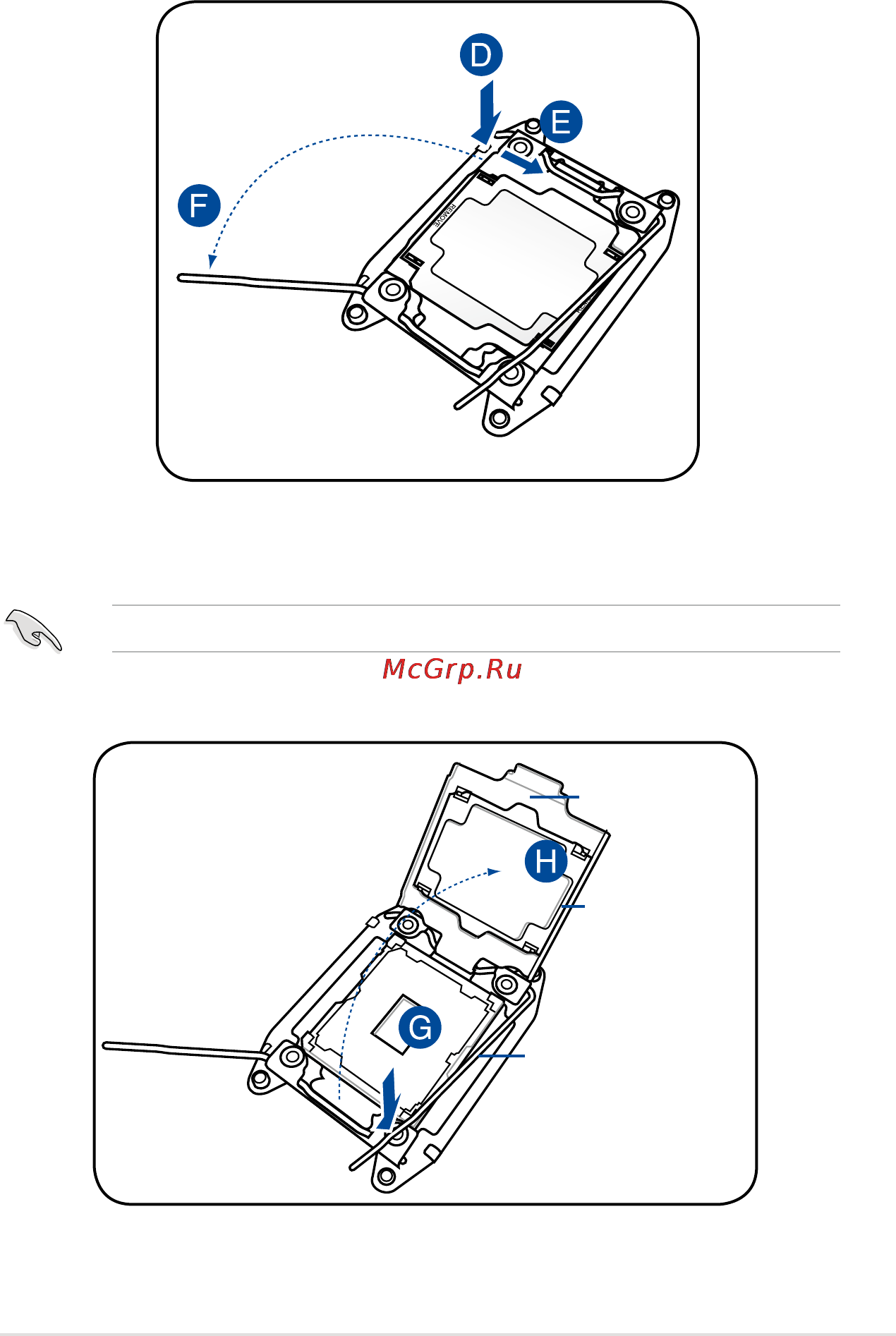

4. Press the left load lever (D), move it to the right (E) until it is released from then
retention tab (F), then gently pull it until it is fully extended.
5. Gently push the right load lever down to slightly lift the load plate (G).
Do not insert the load lever into the retention tab.
6. Hold the edge then gently lift the load plate (H).
Load plate
Load lever
edge of the Load plate
