ASUS RS520-E8-RS8, RS520-E8-RS12-E

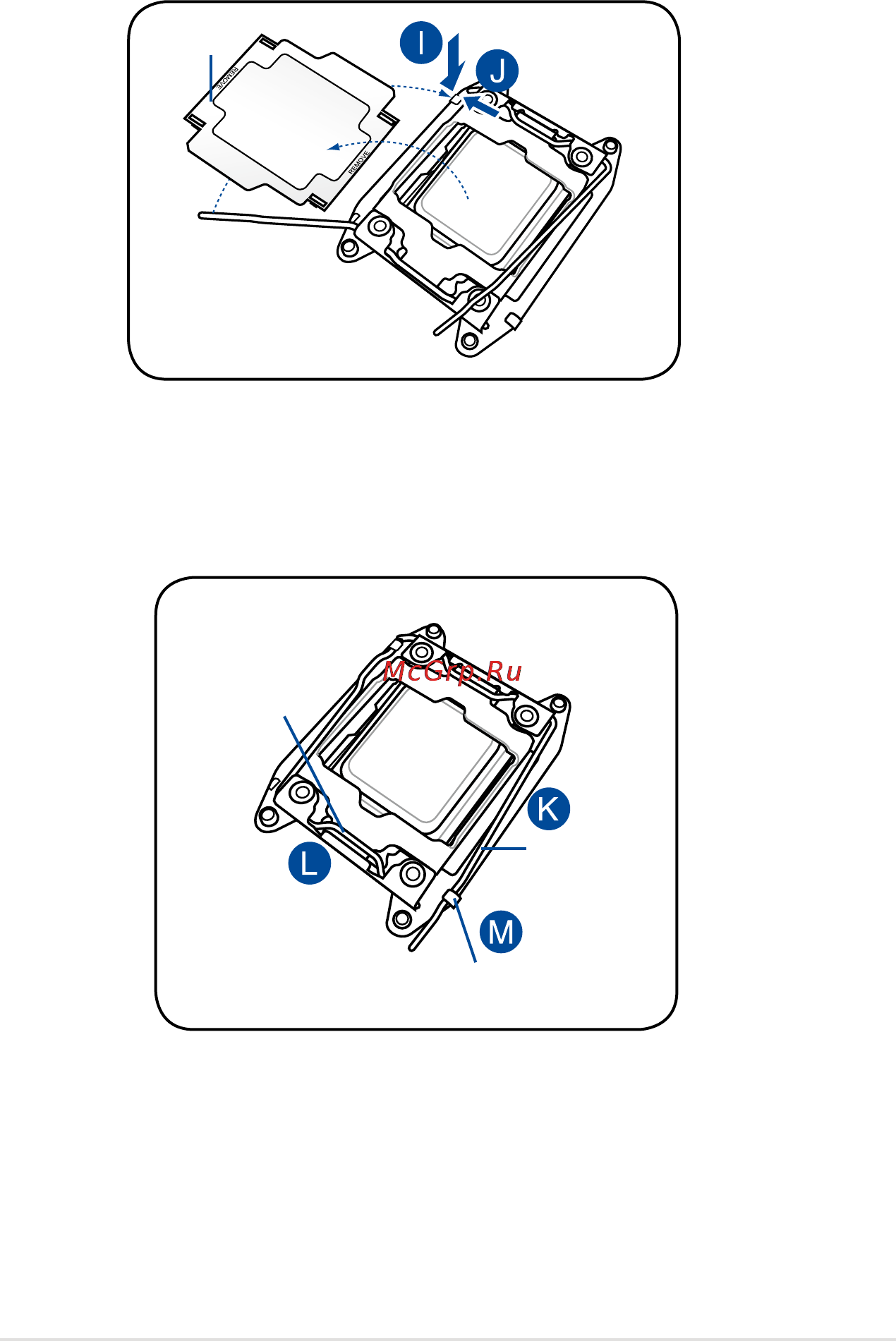

11. Push the left load lever down (I) ensuring that the edge of the load plate is xed and
tucked securely under the lever (J), then the PnP cap will eject automatically.
PnP cap
Retention tab
Load lever
edge of load plate
12. Push the reght load lever down (K) ensuring that the edge of the load plate is xed and
tucked securely under the lever (L), then insert the right load lever under the retention
tab (M).
