2-19
ASUS RS520-E8-RS8, RS520-E8-RS12-E

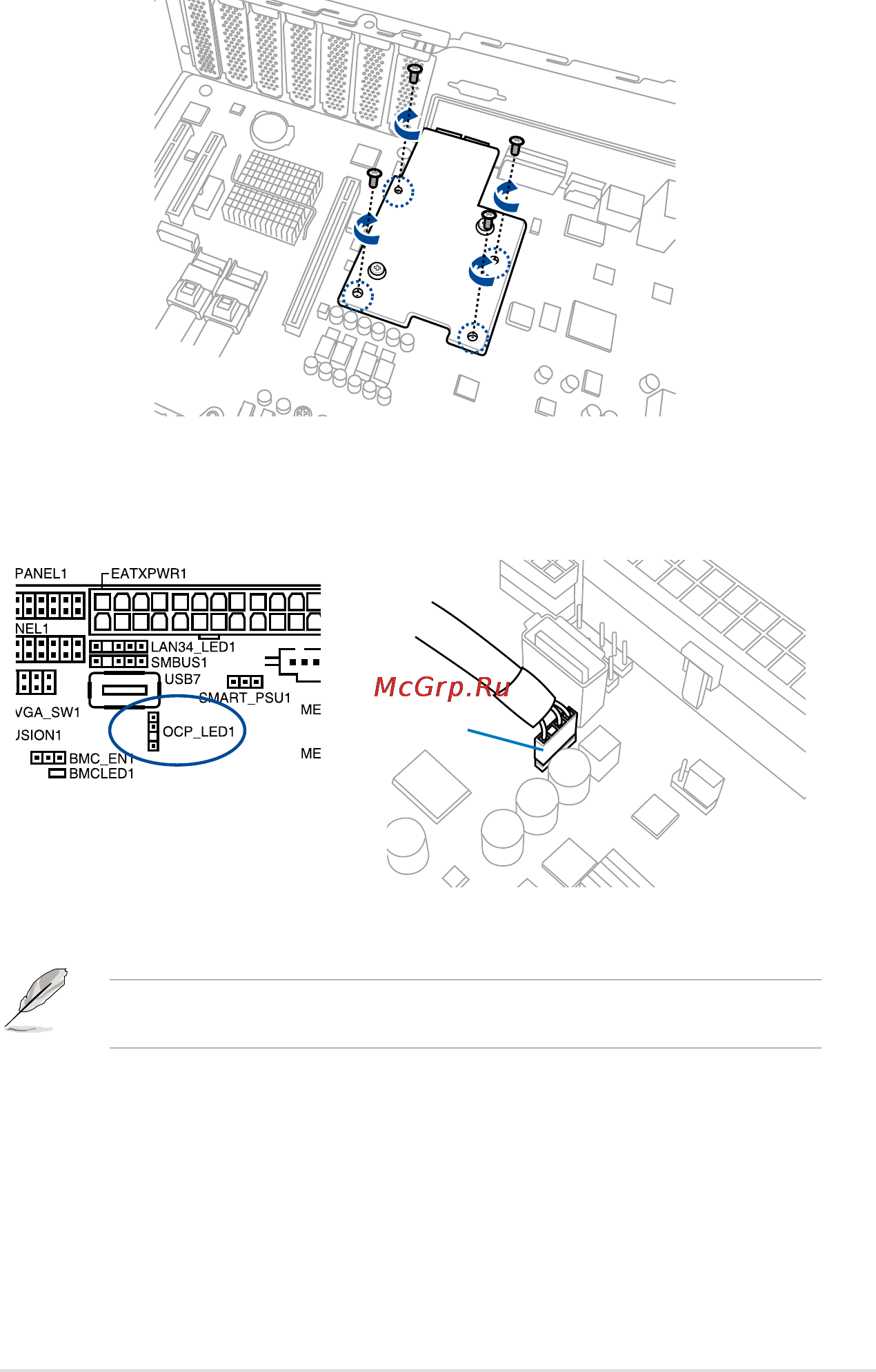

4. Secure the Mezzanine card with the four (4) bundled screws.
5. Connect the signal end (black) to the OCP_LED1 header on the motherboard.
OCP_LED1
The two ends of the signal cable are different in size and color for easy recognization.
Please refer to your exact cable.
