Foxconn nt-ibt29-0h0wbae [16/55] 2 connection of nanopc
![Foxconn nt-ibt18-0h0wbae [16/55] 2 connection of nanopc](/views2/1167518/page16/bg10.png)
10
PLACEMENT AND CONNECTING
2-2 Connection of NanoPC

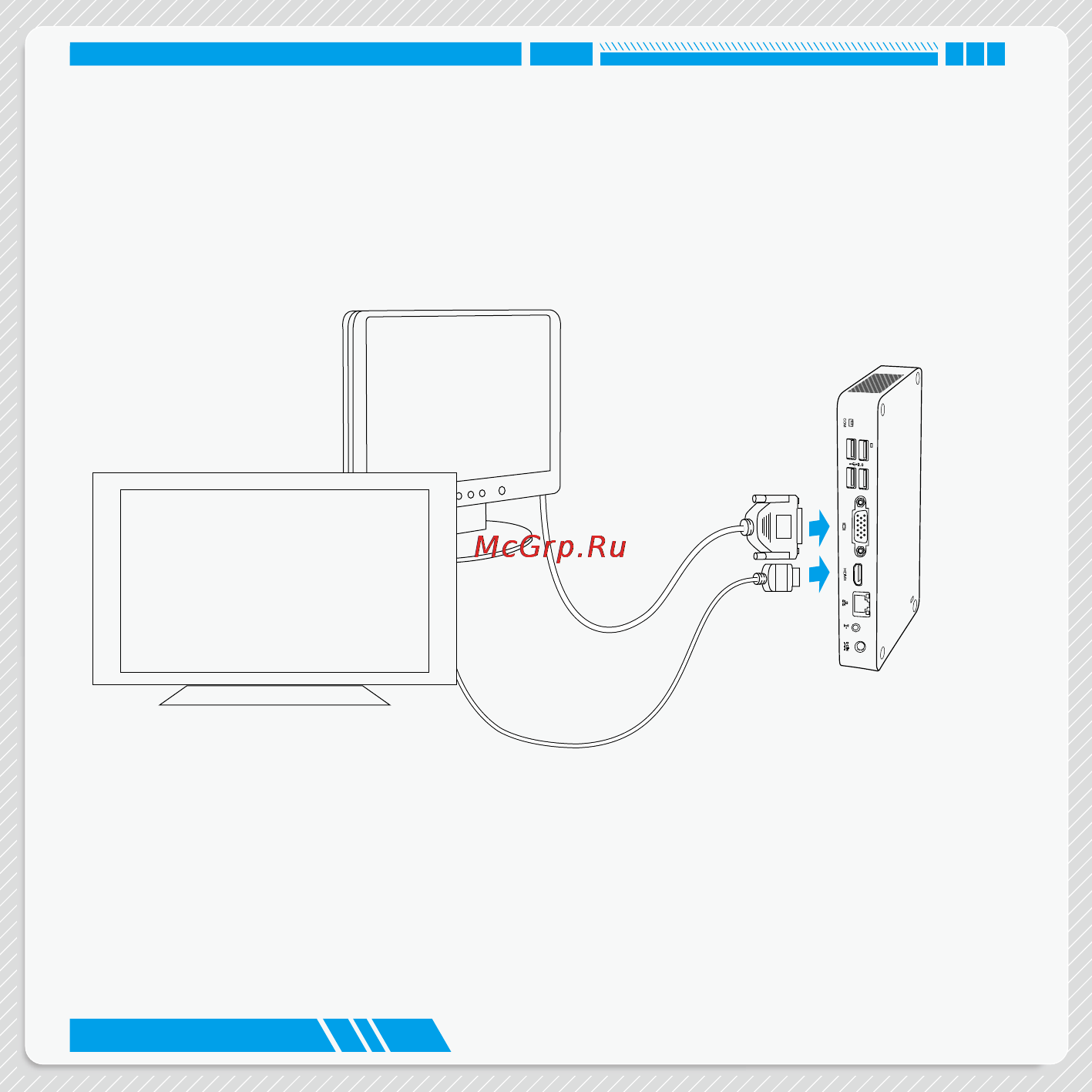

Connect display
Connect a display or TV that has HDMI port or VGA port to your NanoPC.
