UTILITY
■ Fox WINFLASH
Utility
Fox WINFLASH
Fox WINFLASH is a useful utility to backup and update your system BIOS.
Supporting Operating Systems:
■ Windows 8.1
■ Windows 8
■ Windows 7 (64bit)
1. Local Update

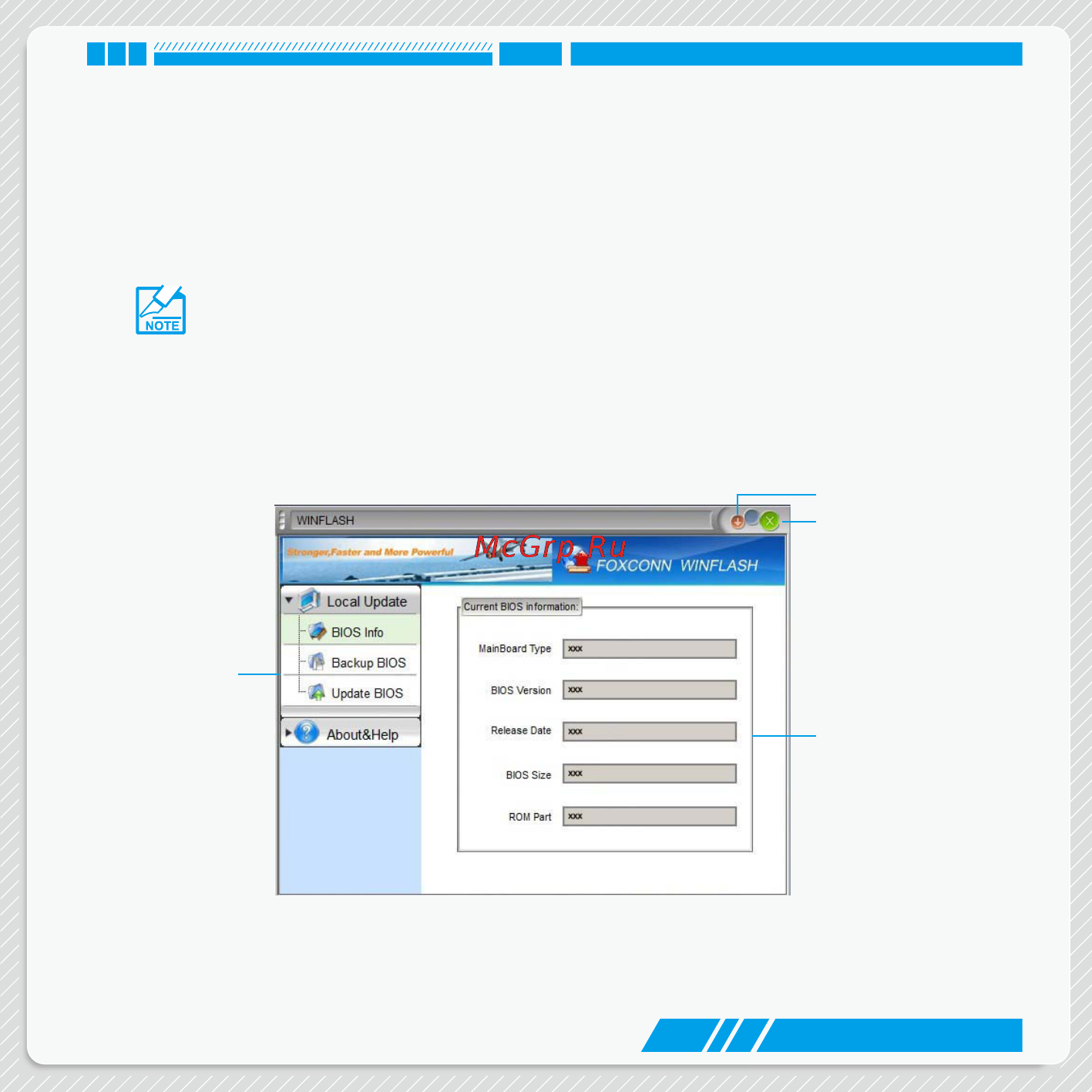

1-1 Local Update - BIOS Information
This page lets you know your system BIOS information.
Note: BIOS Size 32Mb = 32M bit = 4M Byte
BIOS Size 16Mb = 16M bit = 2M Byte
Please refer to the physical motherboard for details.
Toolbar
Show current BIOS
information
Minimum
Exit
Please set the BIOS setting “BIOS Write Protect” or “Super BIOS Protect” to
[Disabled] when running this application.
