42
INSTALL OS

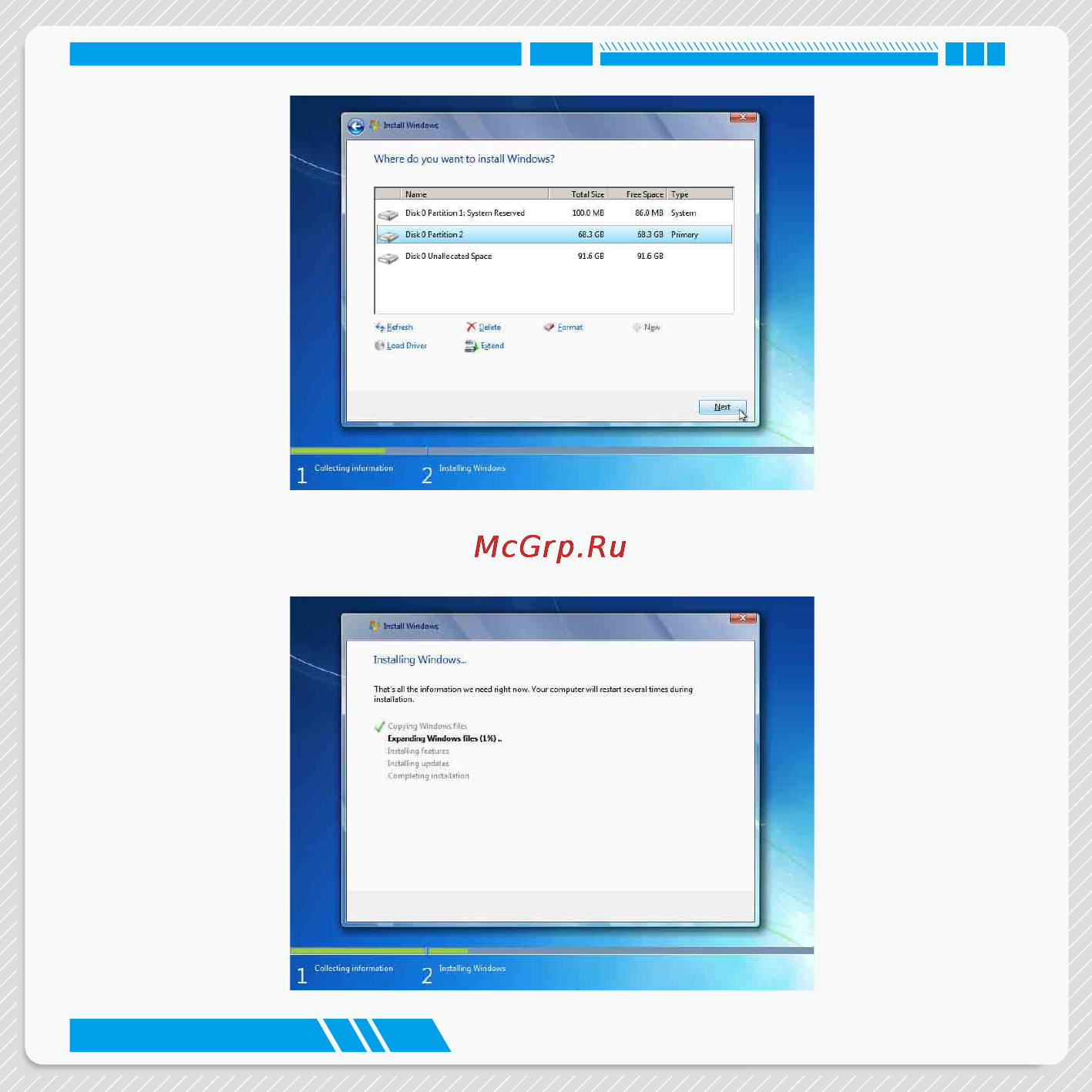

10. The setup program will then start to install Windows 8.1/Windows 8/Windows 7(64 bit) on your hard
disk. During the installation, your computer will restart several times.
