13
PLACEMENT AND CONNECTING

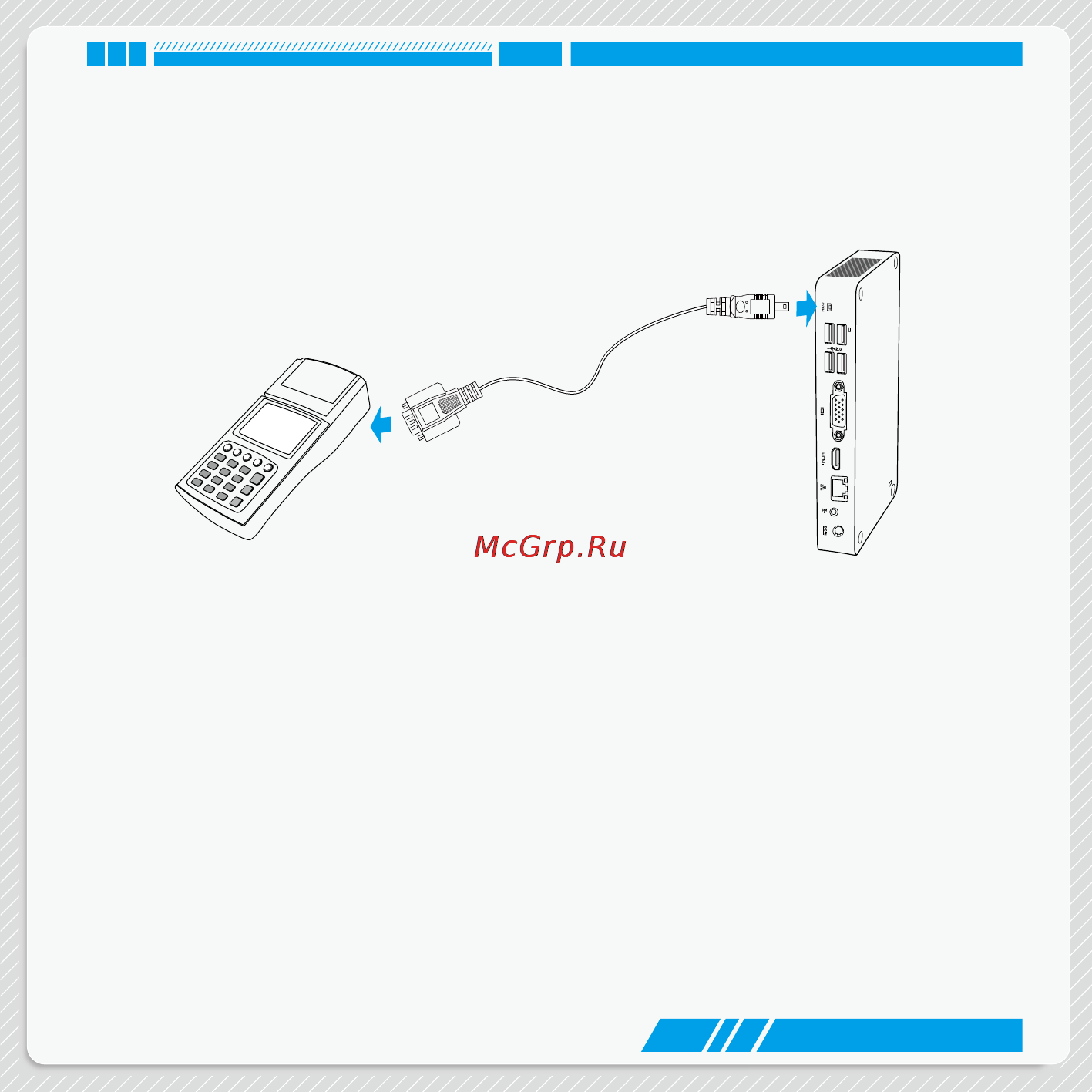

Connect Point Of Sales
Connect one end of cable to the COM port, and the other end to a Point Of Sales.
