Component identification 10
UID button functionality
The UID button can be used to display the HP ProLiant Pre-boot Health Summary when the server will not
power on. For more information, see the HP iLO 4 User Guide on the HP website
(http://www.hp.com/go/ilo/docs).
Power fault LEDs
The following table provides a list of power fault LEDs, and the subsystems that are affected. Not all
power faults are used by all servers.
Subsystem LED behavior
System board 1 flash
Processor 2 flashes
Memory 3 flashes
Riser board PCIe slots 4 flashes
FlexibleLOM 5 flashes
Removable HP Flexible Smart Array
controller/Smart SAS HBA controller
6 flashes
System board PCIe slots 7 flashes
Power backplane or storage backplane 8 flashes
Power supply 9 flashes
Systems Insight Display LEDs

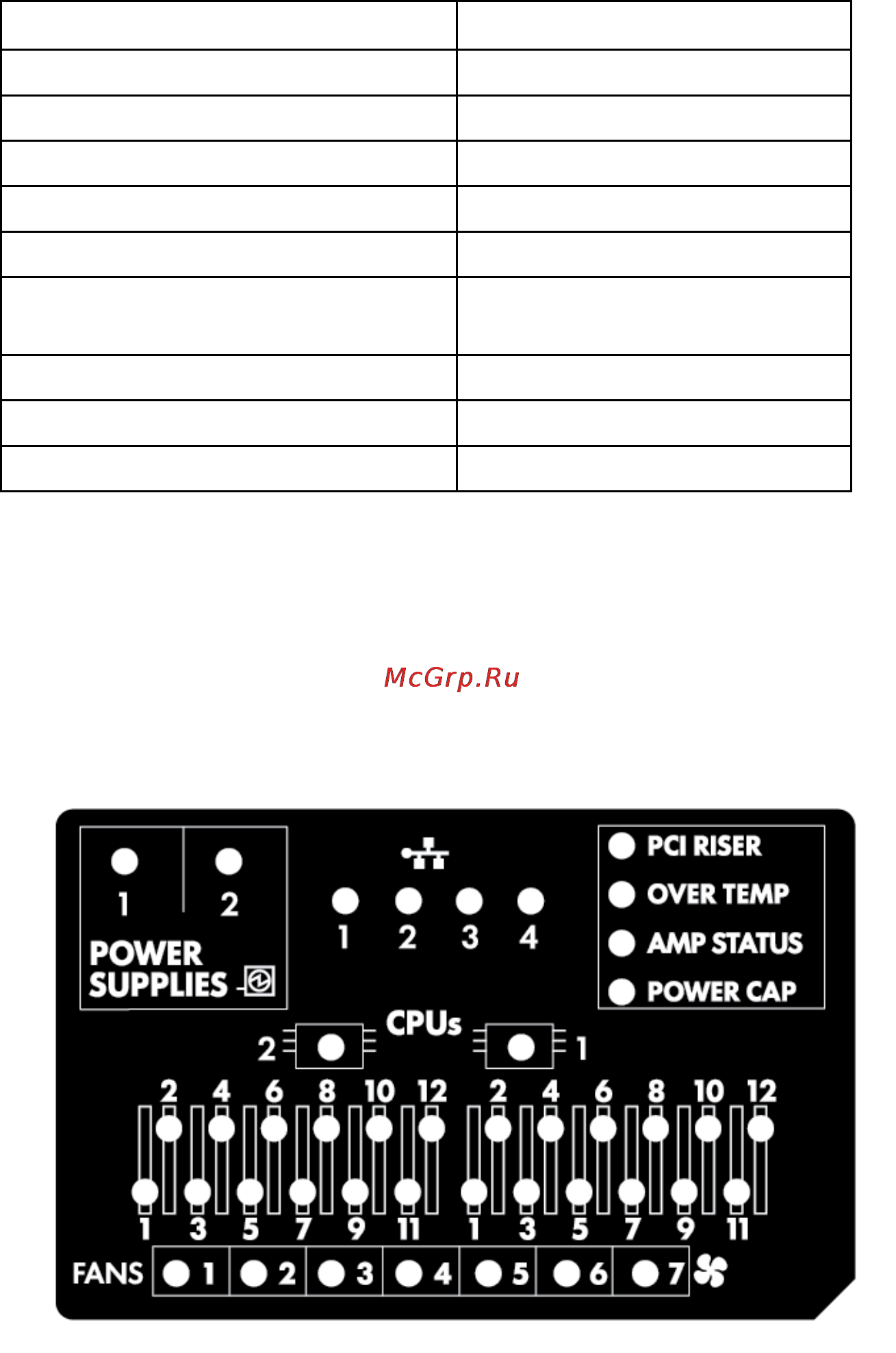

The HP Systems Insight Display LEDs represent the system board layout. The display provides status for all
internal LEDs and enables diagnosis with the access panel installed. To view the LEDs, access the HP
Systems Insight Display.
