HP dl360 g9 8sff cto server [103/152] Lff universal media bay cabling

Cabling 103

Connect the VGA/USB cable to the Front VGA/USB connector toward the rear of the system board.

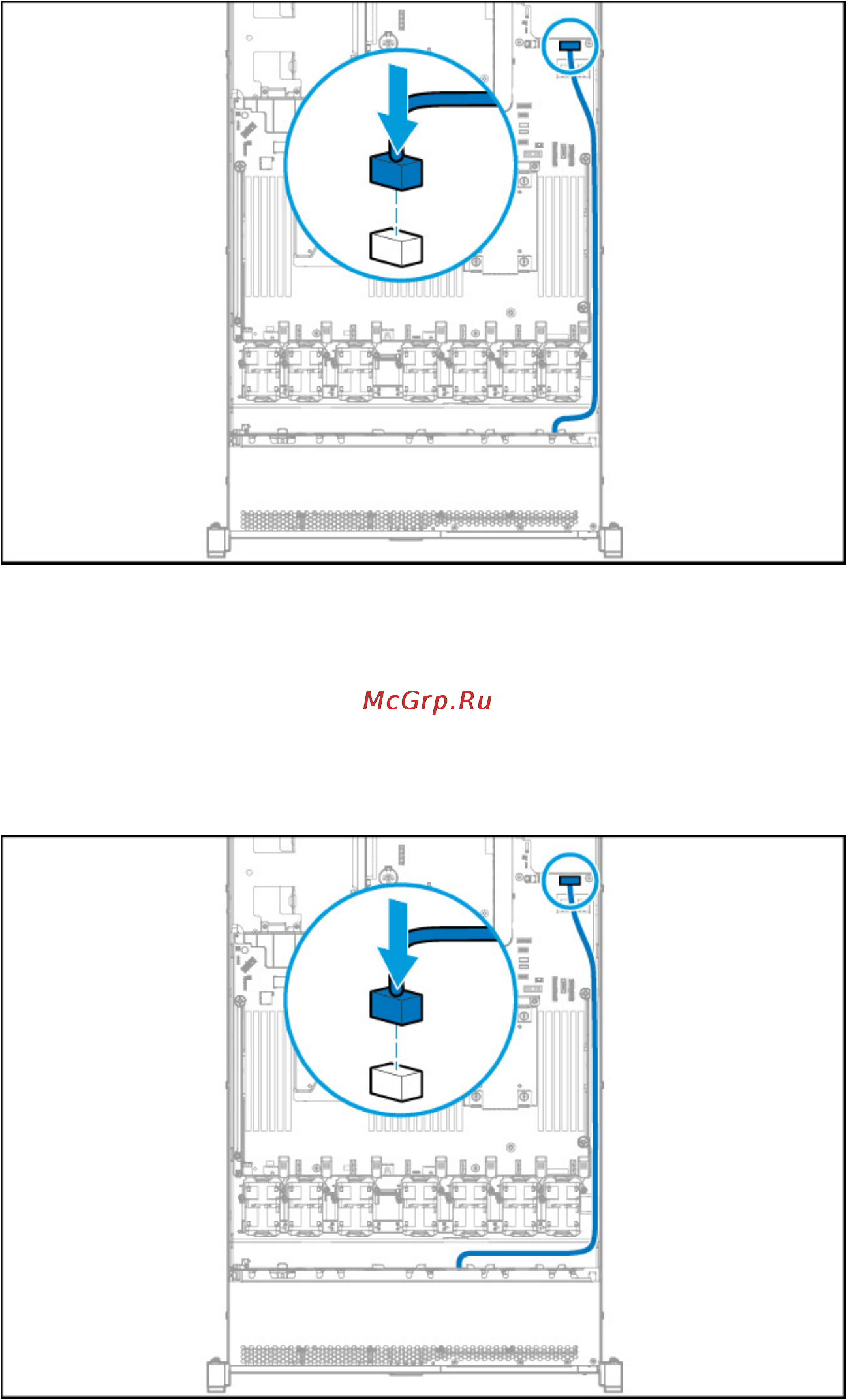

4-LFF Universal Media Bay cabling

Route the cables along the edge of the system board, and then connect the cables to the system board:

• 4 LFF VGA/USB connections

Connect the VGA/USB cable to the Front VGA/USB connector toward the rear of the system board.

• 4 LFF optical drive connection
