Component identification 20
• 10 SFF configuration

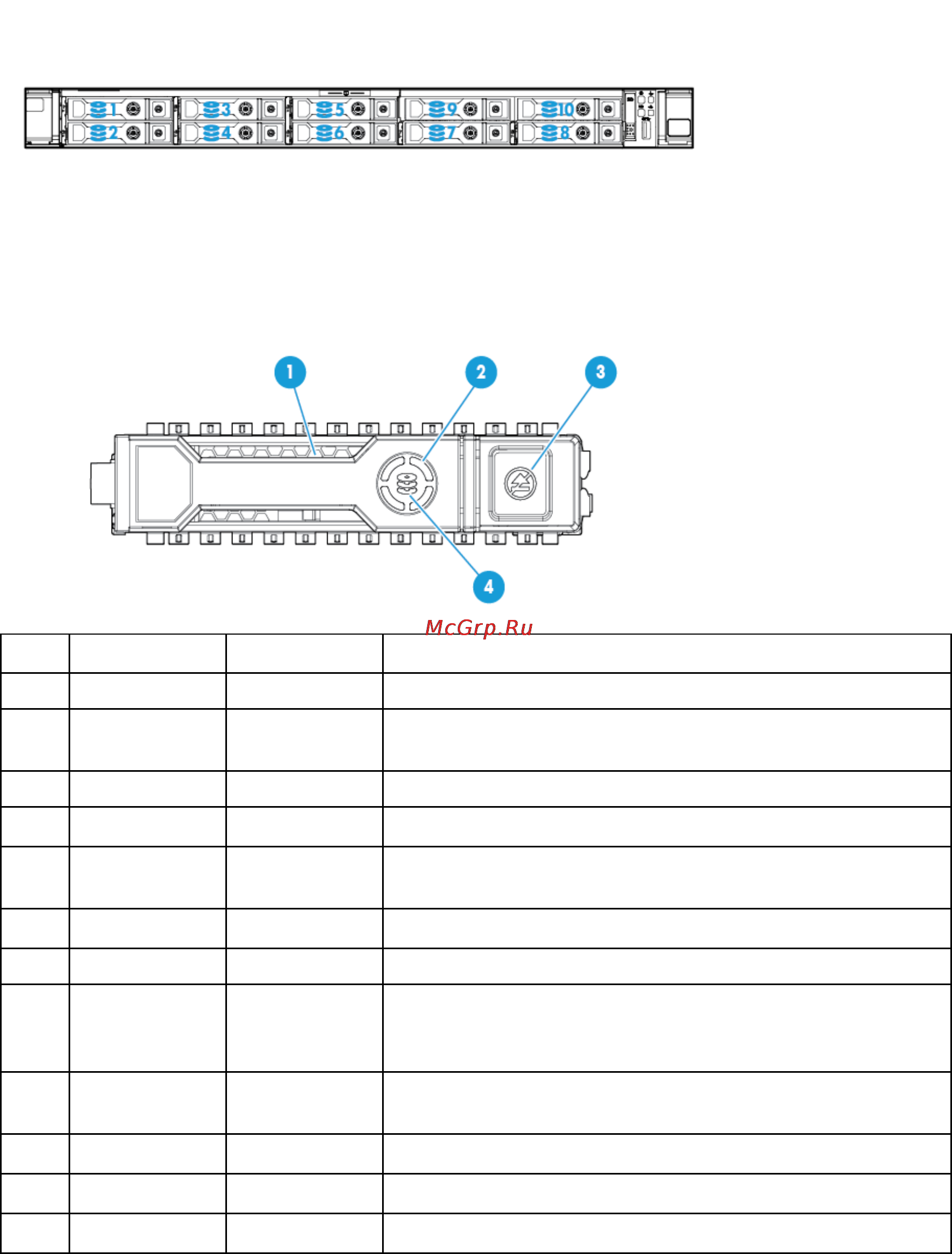

Hot-plug drive LED definitions
Item LED Status Definition
1 Locate Solid blue The drive is being identified by a host application.
Flashing blue
The drive carrier firmware is being updated or requires an
update.
2 Activity ring Rotating green Drive activity
Off No drive activity
3 Do not remove Solid white
Do not remove the drive. Removing the drive causes one or more
of the logical drives to fail.
Off Removing the drive does not cause a logical drive to fail.
4 Drive status Solid green The drive is a member of one or more logical drives.
Flashing green
The drive is rebuilding or performing a RAID migration, strip size
migration, capacity expansion, or logical drive extension, or is
erasing.
Flashing
amber/green
The drive is a member of one or more logical drives and predicts
the drive will fail.
Flashing amber The drive is not configured and predicts the drive will fail.
Solid amber The drive has failed.
Off The drive is not configured by a RAID controller.
