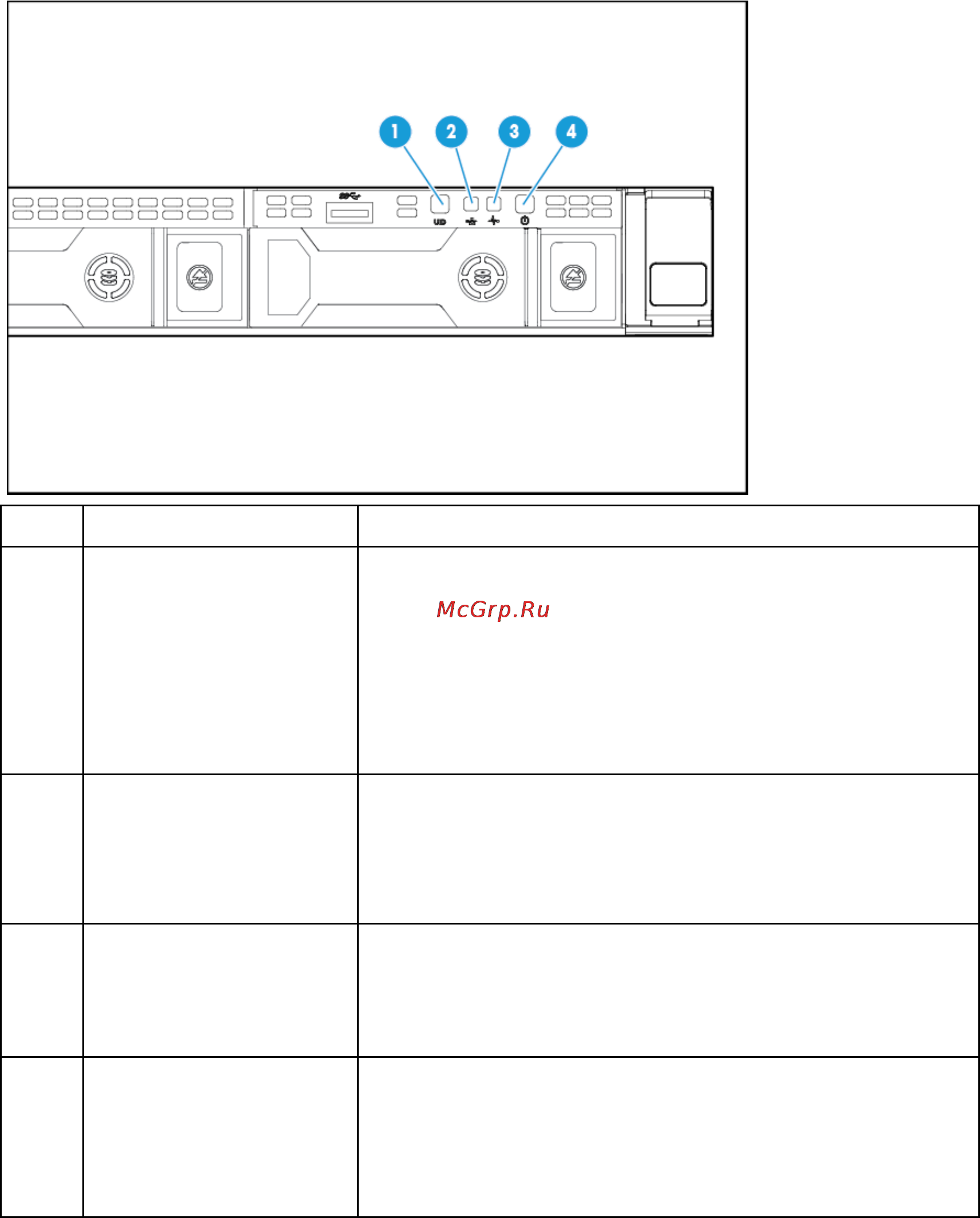

Component identification 9

• 4 LFF

Item Description Status

1 UID button/LED* Solid blue = Activated

Flashing blue:

•

1 Hz/cycle per sec = Remote management or firmware

upgrade in progress

•

4 Hz/cycle per sec = iLO manual reboot sequence initiated

•

8 Hz/cycle per sec = iLO manual reboot sequence in progress

Off = Deactivated

2 NIC status LED* Solid green = Link to network

Flashing green (1 Hz/cycle per sec) = Network active

Off = No network activity

3 Health LED* Solid green = Normal

Flashing green (1 Hz/cycle per sec) = iLO is rebooting.

Flashing amber = System degraded

Flashing red (1 Hz/cycle per sec) = System critical†

Power On/Standby button

and system power LED*

Solid green = System on

Flashing green (1 Hz/cycle per sec) = Performing power on

sequence

Solid amber = System in standby

Off = No power present**

*When all four LEDs described in this table flash simultaneously, a power fault has occurred. For more information,

see "Power fault LEDs (on page 10)."

**Facility power is not present, power cord is not attached, no power supplies are installed, power supply failure has

occurred, or the power button cable is disconnected.

†To identify components in a degraded or critical state, see the Systems Insight Display LEDs, check iLO/BIOS logs,

and reference the server troubleshooting guide.
