HP dl360 g9 8sff cto server [13/152] Item description

Component identification 13

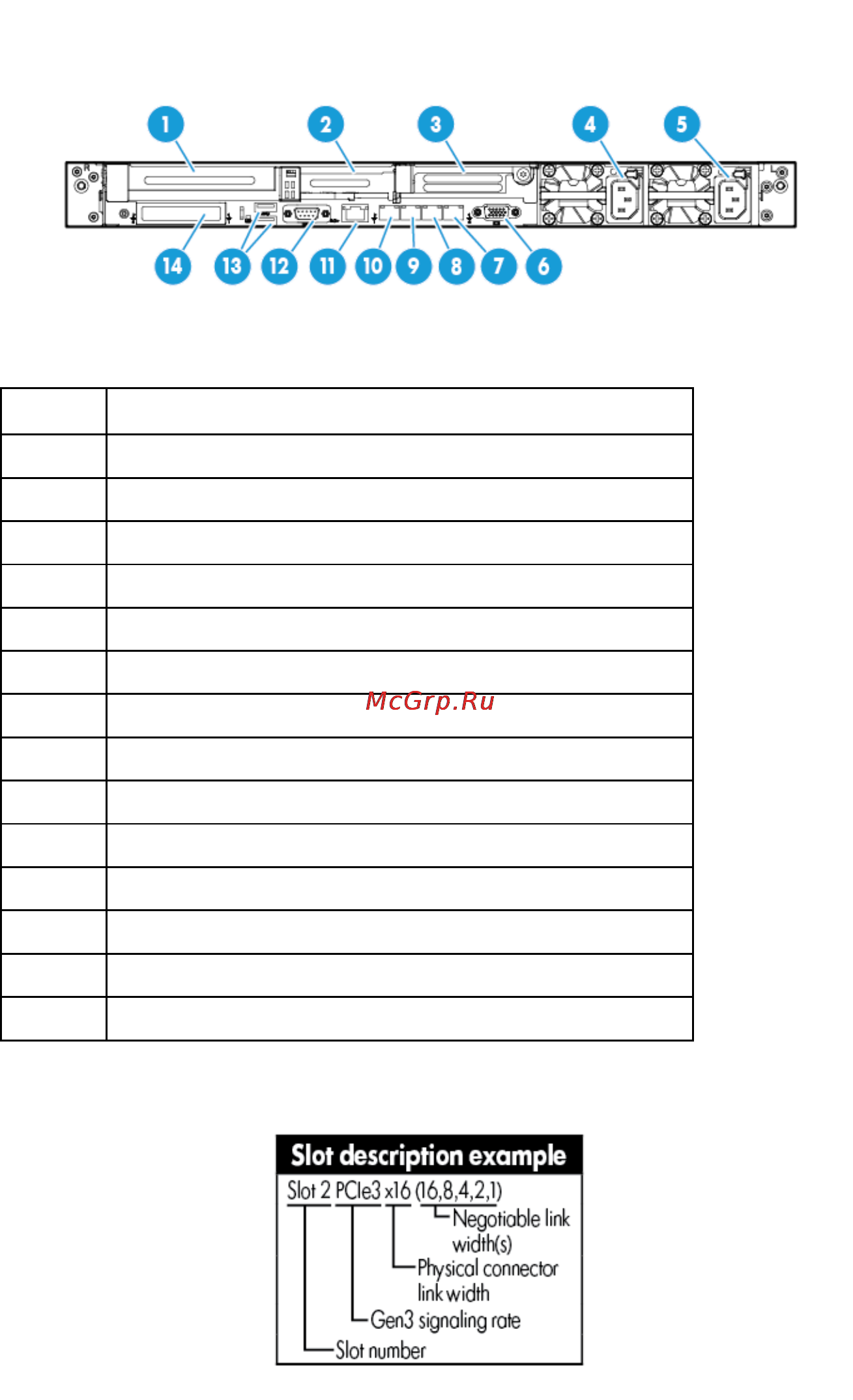

Rear panel components

Item Description

1 Slot 1 PCIe3 x16 (16, 8, 4, 1)

2 Slot 2 PCIe 3 x8 ( 8, 4, 1)

3 Slot 3 PCIe 3 x16 ( 16, 8, 4, 1)*

4 Power supply 2

5 Power supply 1

6 Video connector

7 NIC connector 4

8 NIC connector 3

9 NIC connector 2

10 NIC connector 1

11 iLO 4 connector

12 Serial connector (optional)

13 USB 3.0 connectors

14 FlexibleLOM bay

*The slot 3 PCIe 3 riser is optional and requires a second processor before installation.
