HP dl360 g9 8sff cto server [7/152] Component identification

Component identification 7

Component identification

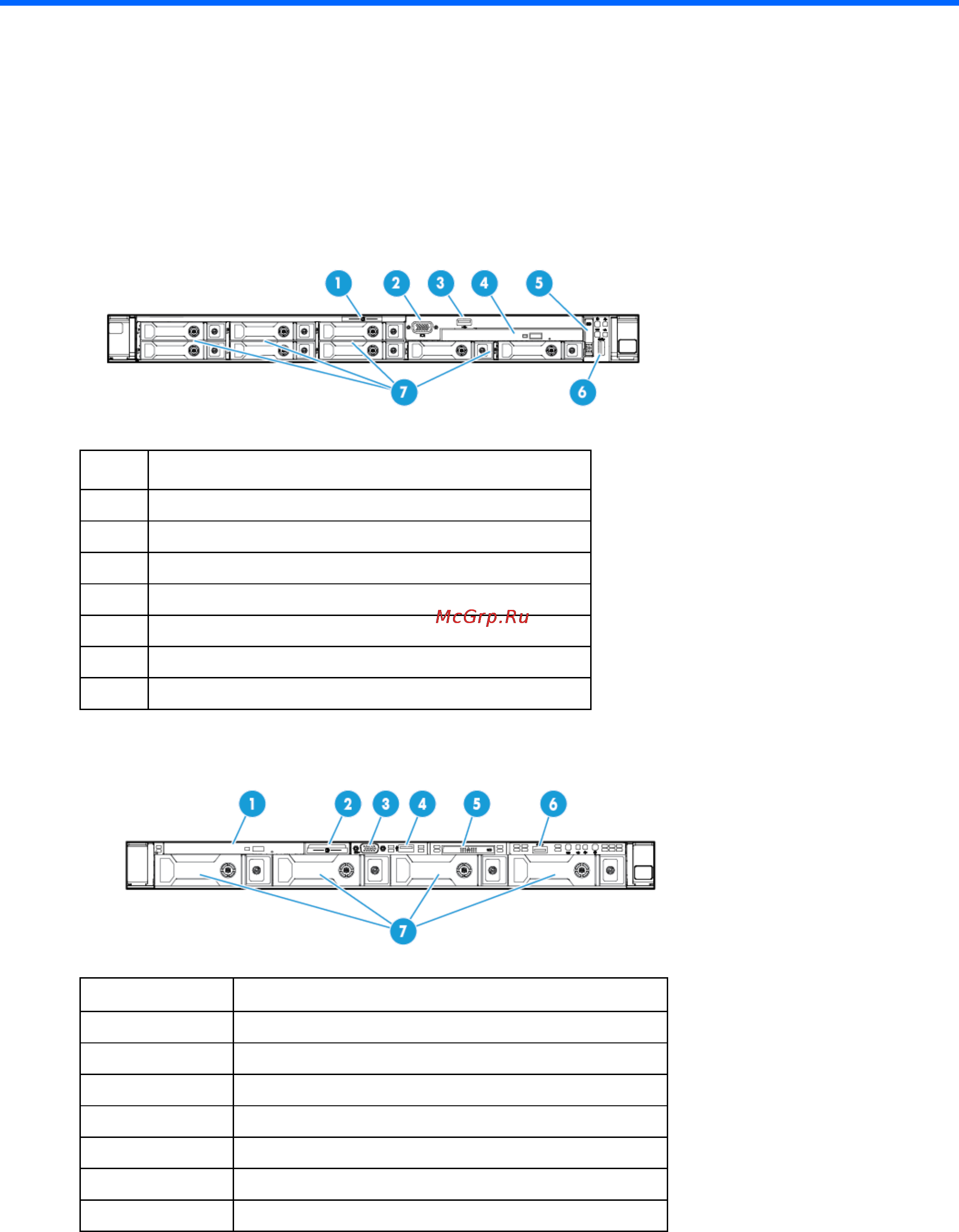

Front panel components

• 8 SFF

Item Description

1 Serial label pull tab

2 Front video connector (optional)

3 USB 2.0 connector (optional)

4 Optical drive (optional)

5 Systems Insight Display (optional)

6 USB 3.0 connector

7 SAS/SATA/SSD drive bays

• 4 LFF

Item Description

1 Optical drive (optional)

2 Serial label pull tab

3 Front video connector (optional)

4 USB 2.0 connector (optional)

5 Systems Insight Display (optional)

6 USB 3.0 connector

7 SAS/SATA/SSD drive bays
