HP dl360 g9 8sff cto server [16/152] Non hot plug pci riser board slot definitions
![HP dl360 g9 8sff cto server [16/152] Non hot plug pci riser board slot definitions](/views2/1169377/page16/bg10.png)
Component identification 16
Non-hot-plug PCI riser board slot definitions
Primary riser cage connector, connected to processor 1 or the southbridge
PCIe 3-slot riser cage* PCIe 2-slot x16 riser cage

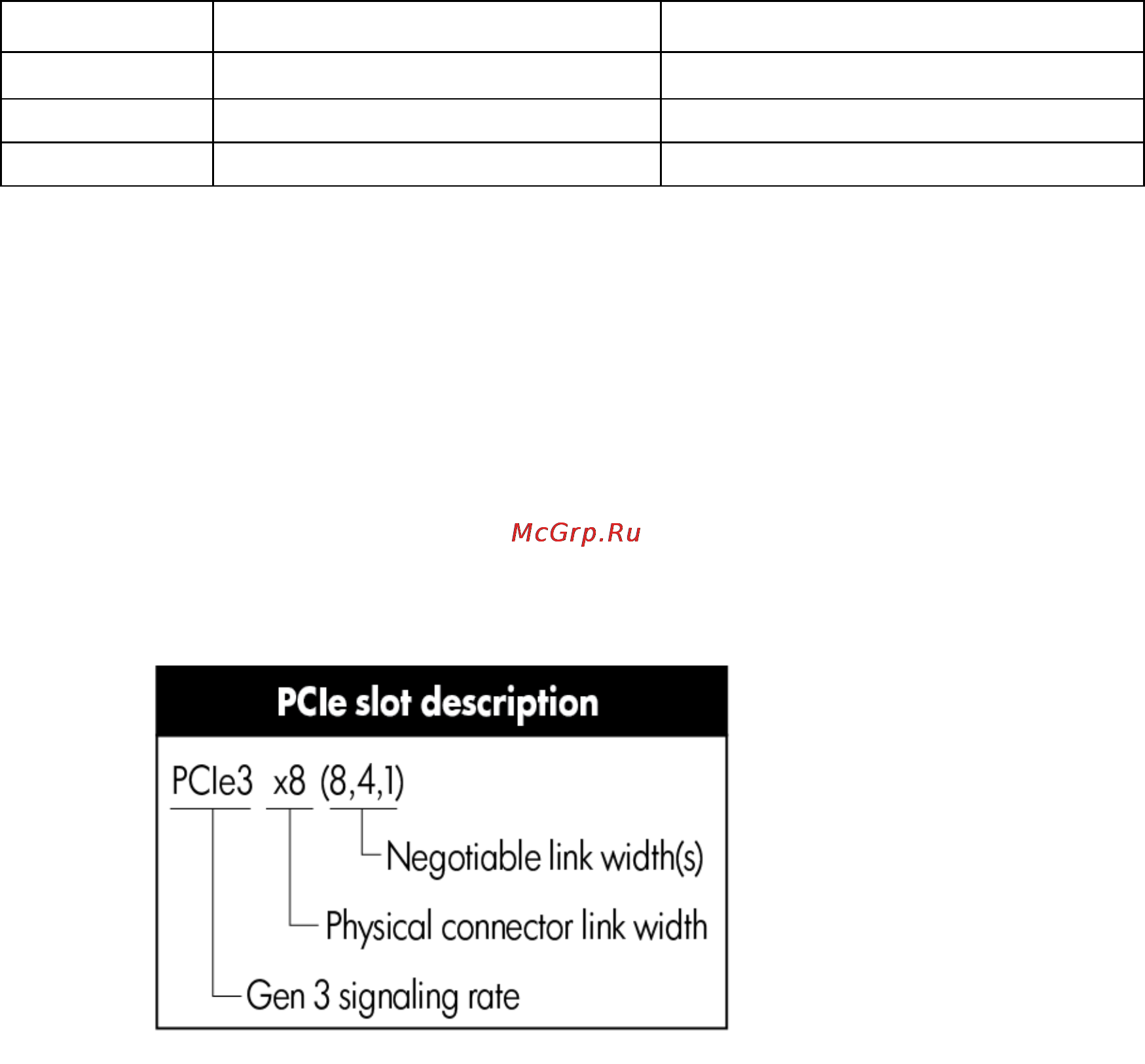

1 - 3/4L/FH PCIe3 x8 (8,4,2,1) PCIe3 x16 (16,8,4,2,1)
2 - LP PCIe3 x8 (8,4,2,1) PCIe3* x8 (8,4,2,1)
3 - LP/3/4L/FH PCIe3 x16 (16, 8,4,2,1)** —
*The server ships with one PCIe3 riser cage installed in the primary riser cage connector.
**The x16 PCIe3 riser cage is optional and can be converted to a FH riser. This conversion requires a
second processor to be installed.
Notes:
• "Primary" denotes the riser cage is installed in the primary riser connector.
• "Secondary" denotes the riser cage is installed in the secondary riser connector.
• Installing the riser cages listed in the table above in either the primary or secondary riser connectors
determines the form factor of the PCI cards supported by those riser cages.
• FL/FH denotes full-length, full-height. HL/FH denotes half-length, full-height. LP denotes low profile.
