HP dl360 g9 8sff cto server [17/152] System board components
![HP dl360 g9 8sff cto server [17/152] System board components](/views2/1169377/page17/bg11.png)
Component identification 17

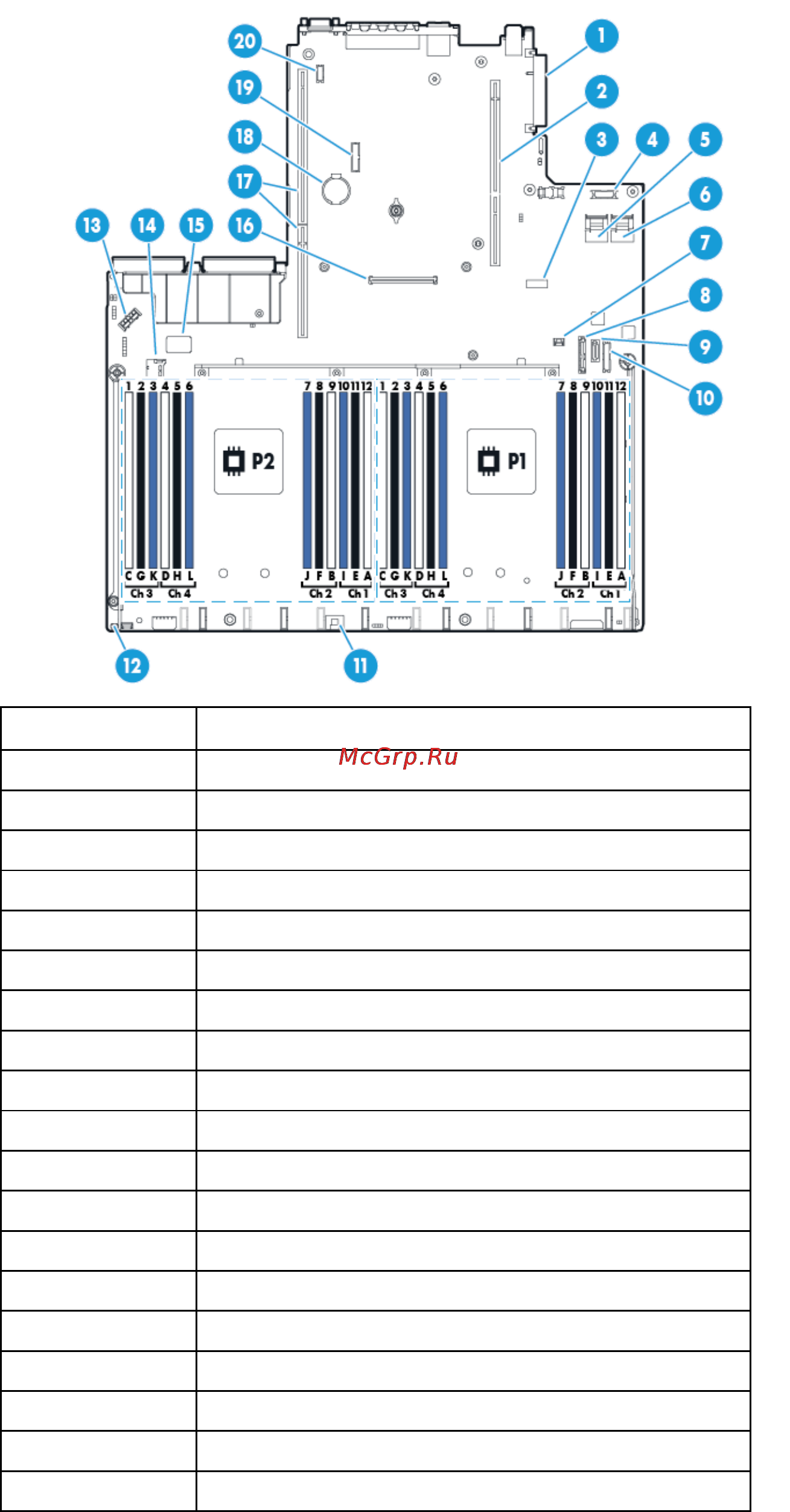

System board components
Item Description
1 FlexibleLOM connector
2 Primary (processor 1) PCI riser connector
3 System maintenance switch
4 Front VGA/USB 2.0 connector
5 x4 SATA port 1
6 x4 SATA port 2
7 Backplane presence detect connector
8 Optical/SATA port 5
9 SATA port 4
10 Front power/USB 3.0 connector
11 HP Smart Storage Battery connector
12 Optional Location Discovery Services connector
13 Drive backplane power connector
14 MicroSD card slot
15 Dual internal USB 3.0 connector
16 Smart Array/HBA connector
17 Secondary (processor 2) PCI riser connector
18 System battery
19 TPM connector
