Hardware options installation 43
14.

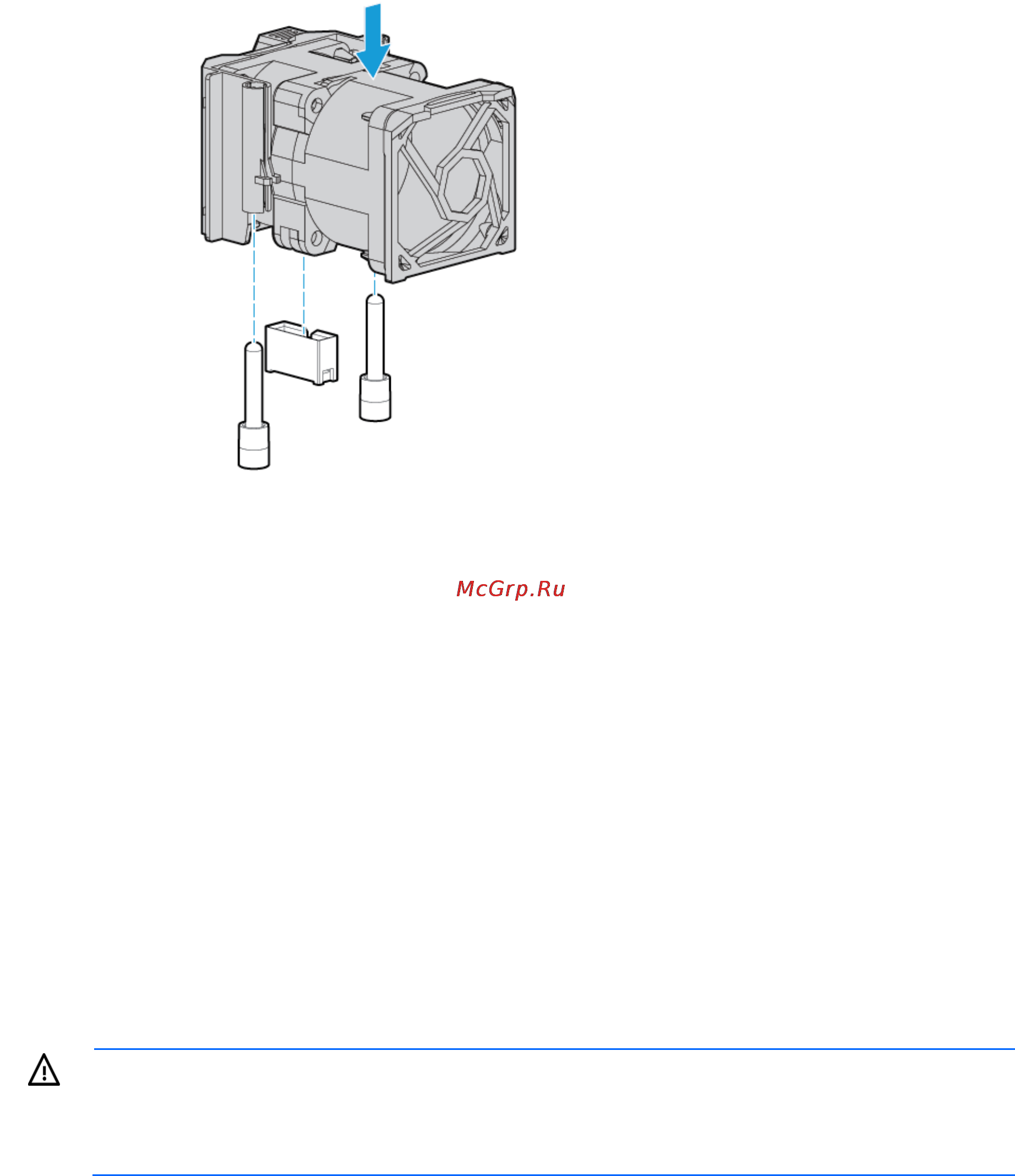

Install the fans into locations 1 and 2.
15. Install the access panel (on page 24).
16. Install the server into the rack.
17. Connect each power cord to the server.
18. Connect each power cord to the power source.
19. Press the Power On/Standby button.
The server exits standby mode and applies full power to the system. The system power LED changes
from amber to green.
High performance heatsink
Although these heatsinks are required for certain processors, they can also be used to reduce fan power
consumption with processors that only need standard performance heatsinks.
Fan power savings varies by server configuration and workload and thus has been optimized to improve
fan power in either high workloads, dense configurations, and/or extended ambient configurations.
For a list of processors that are compatible with these high performance heatsinks, see the QuickSpecs on
the HP website (http://www.hp.com/go/qs).
WARNING: To reduce the risk of personal injury, electric shock, or damage to the equipment,
remove the power cord to remove power from the server. The front panel Power On/Standby
button does not completely shut off system power. Portions of the power supply and some
internal circuitry remain active until AC power is removed.
To install the component:
1. Power down the server (on page 23).
2. Remove all power:
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
3. Do one of the following:
