Component identification 15

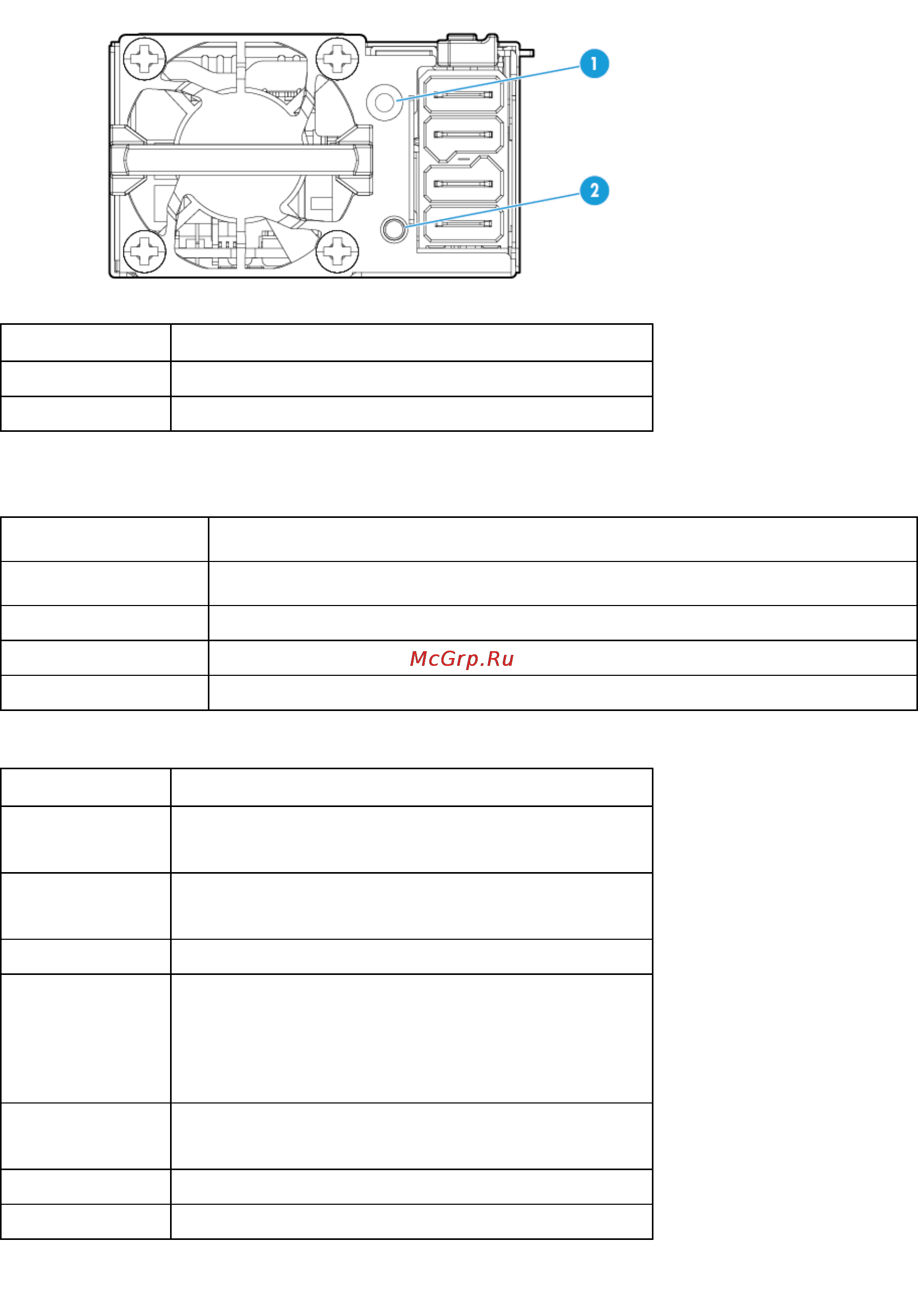

Flex slot battery backup module LEDs and buttons
Item Description
1 FSBBU module LED
2 Battery check button
When the battery check button is pressed, the LED indicates the state of the battery. The number of times
that the LED flashes indicates the state of change.
# of LED flashes % state of change
0 < 5%
1 <= 30%
2 31% – 69%
3 >= 70%
The state of the LED indicates the FSBBU operating mode.
LED Mode/State
Off
•
Ship/storage mode
•
Cycle power operating
Flashing amber
•
Battery diagnostic
•
Active mode
Solid amber Online mode and charger is ON
Flashing green Discharge mode
•
RSOC—70-100% frequency=0.5Hz; duty=0.5
•
RSOC—31-69% frequency=1Hz; duty=0.5
•
RSOC—0-30% frequency=1.5Hz; duty=0.5
Solid green
•
Online mode and charger is OFF
•
Battery is fully charged
Flashing red Auxiliary path A/B protection
Solid red FSBBU fault or other protections
For more information about the FSBBU module, see "HP 750 W Flex Slot Hot Plug Battery Backup Module
(on page 95)."
