MSI z170a-g45 gaming [26/172] M2_1 2 m slots

Overview of Components

Important

●

Intel

RST only supports PCIe M.2 SSD with UEFI

ROM.

Video Demonstration

Watch the video to learn how to Install

M.2 module.

http://youtu.be/JCTFABytrYA

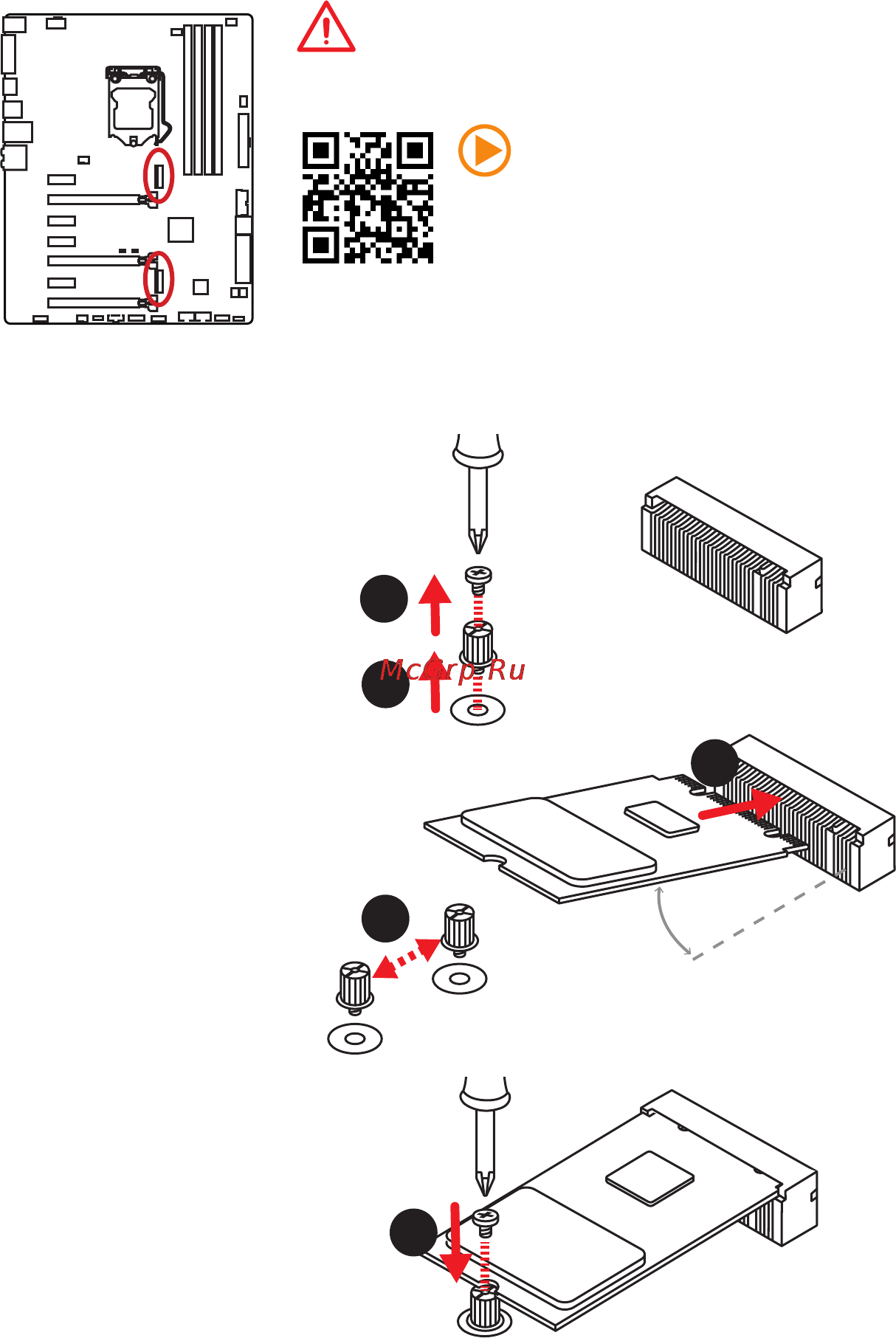

Installing M.2 module

M2_1~2: M.2 Slots

30°

3. Tighten the base screw

into the hole of the

distance to the M.2 slot

as the length your M.2

module.

4. Insert your M.2 module

into the M.2 slot at a

30-degree angle.

5. Put the screw in the

notch on the trailing edge

of your M.2 module and

tighten it into the base

screw.

1. Remove the screw from

the base screw.

2. Remove the base

screw.

M.2_1

M.2_2
