Chapter 2: Installation
2-7

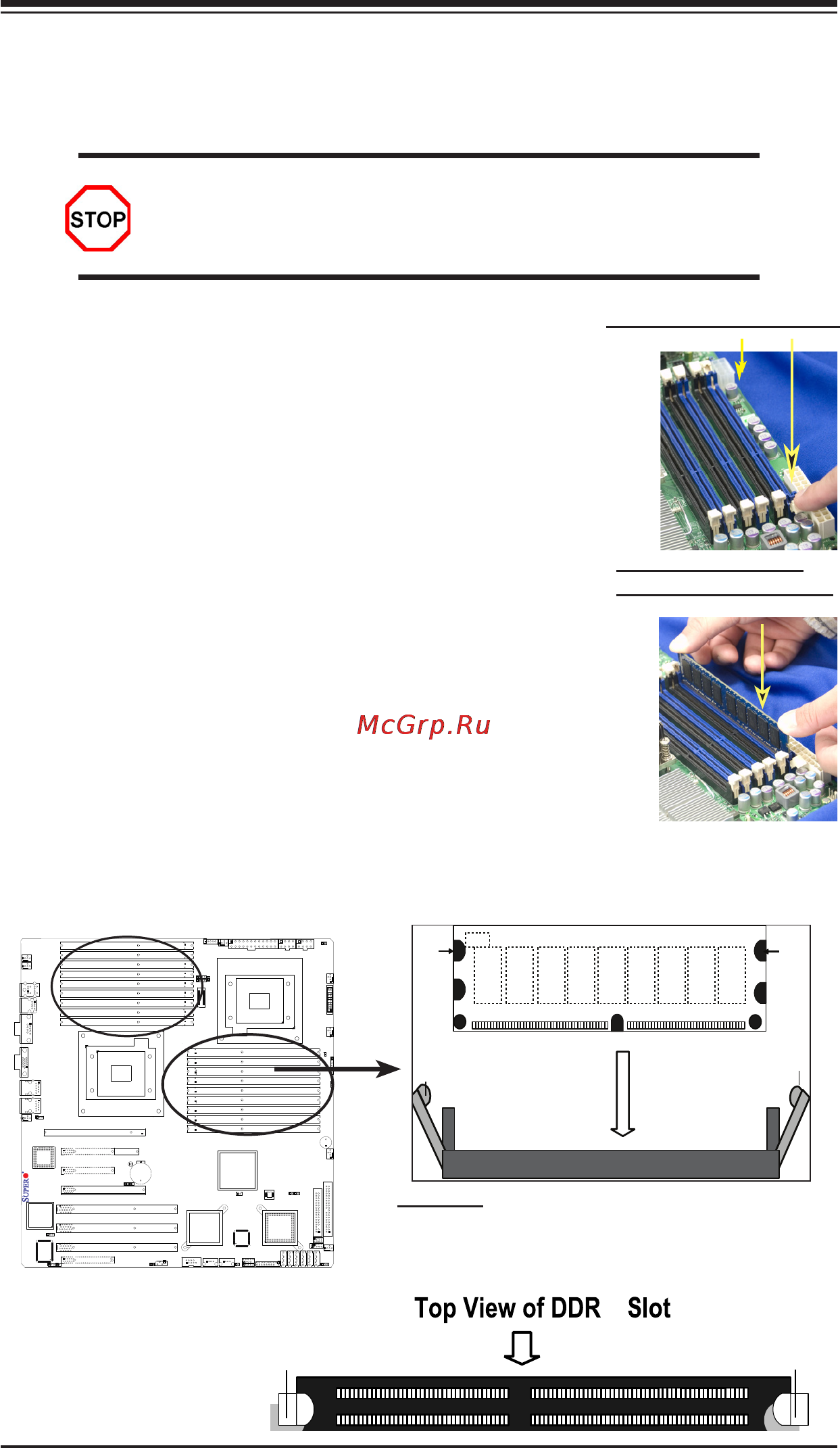

2-4 Installing and Removing the Memory Modules
Note: Check the Supermicro web site for recommended memory modules.
CAUTION
Exercise extreme care when installing or removing DIMM
modules to prevent any possible damage.
Press down the release tabs
Insert & press down a
DIMM module into the slot
Installing & Removing DIMMs
1. Insert the desired number of DIMMs into the memory
slots, starting with P1-DIMM #1A. When populating
multiple DIMM modules within a channel, always start
with Bank1 rst. (For best performance, please use the
memory modules of the same type and same speed in
the same bank.)
2. Press down the release tabs on the ends of a memory
slot. Insert each DIMM module vertically into its slot.
Pay attention to the notch along the bottom of the
module to prevent inserting the DIMM module incor-
rectly.
3. Gently press down on the DIMM module until it snaps
into place in the slot. Repeat for all modules.
4. Reverse the steps above to remove the DIMM mod-
ules from the motherboard.
X8DTN+
Note: Notch
should align
with the
receptive point
on the slot
Notc
h
Release
Tab
Release
Tab
DIMM DDR3
Notch
To Install: Insert module vertically and press
down until it snaps into place. Pay attention to the
alignment notch at the bottom.
To Remove:
Use your thumbs
to gently push the
release tabs near both
ends of the module.
This should release it
from the slot.
3
Release Tab
Release Tab
