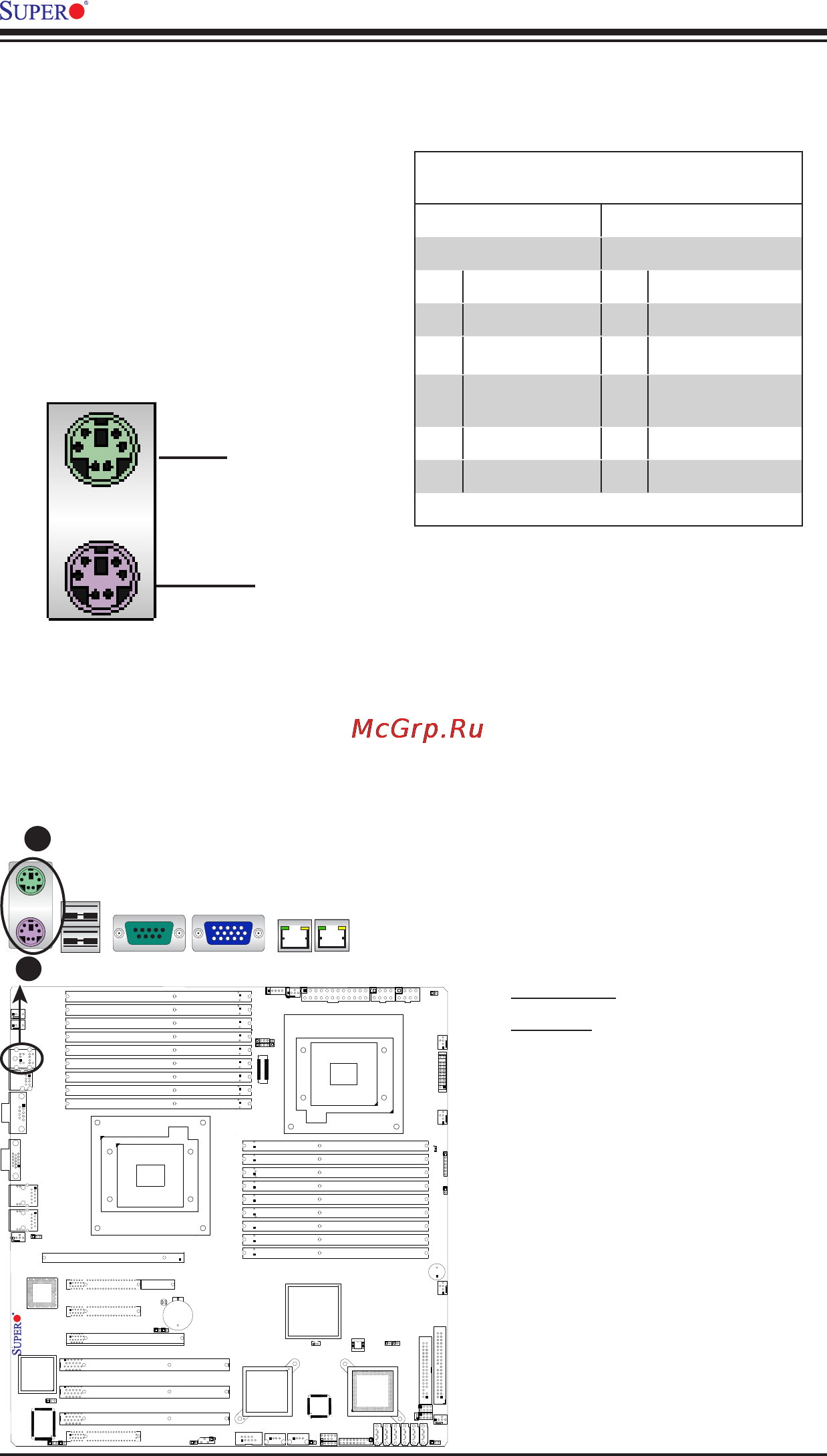

2-14

X8DTN+/X8DTN+-LR User's Manual

ATX PS/2 Keyboard and PS/2

Mouse Ports

The ATX PS/2 keyboard and PS/2

mouse (JKM1) are located next to

the Backpanel USB ports on the

motherboard. See the table at right

for pin denitions.

PS/2 Keyboard/Mouse Pin

Denitions

PS2 Keyboard PS2 Mouse

Pin# Denition Pin# Denition

1 KB Data 1 Mouse Data

2 NC 2 NC

3 Ground 3 Ground

4 Mouse/KB VCC

(+5V)

4 Mouse/KB VCC

(+5V)

5 KB Clock 5 Mouse Clock

6 No Connection 6 No Connection

NC: No Connection

Keyboard

Mouse

X8DTN+

A. Keyboard

B. Mouse

2. Back Panel IO Port and Onboard IO Connection Pin

Denitions
