X8DTN+/X8DTN+-LR User's Manual
4-3 AdvancedSetupCongurations

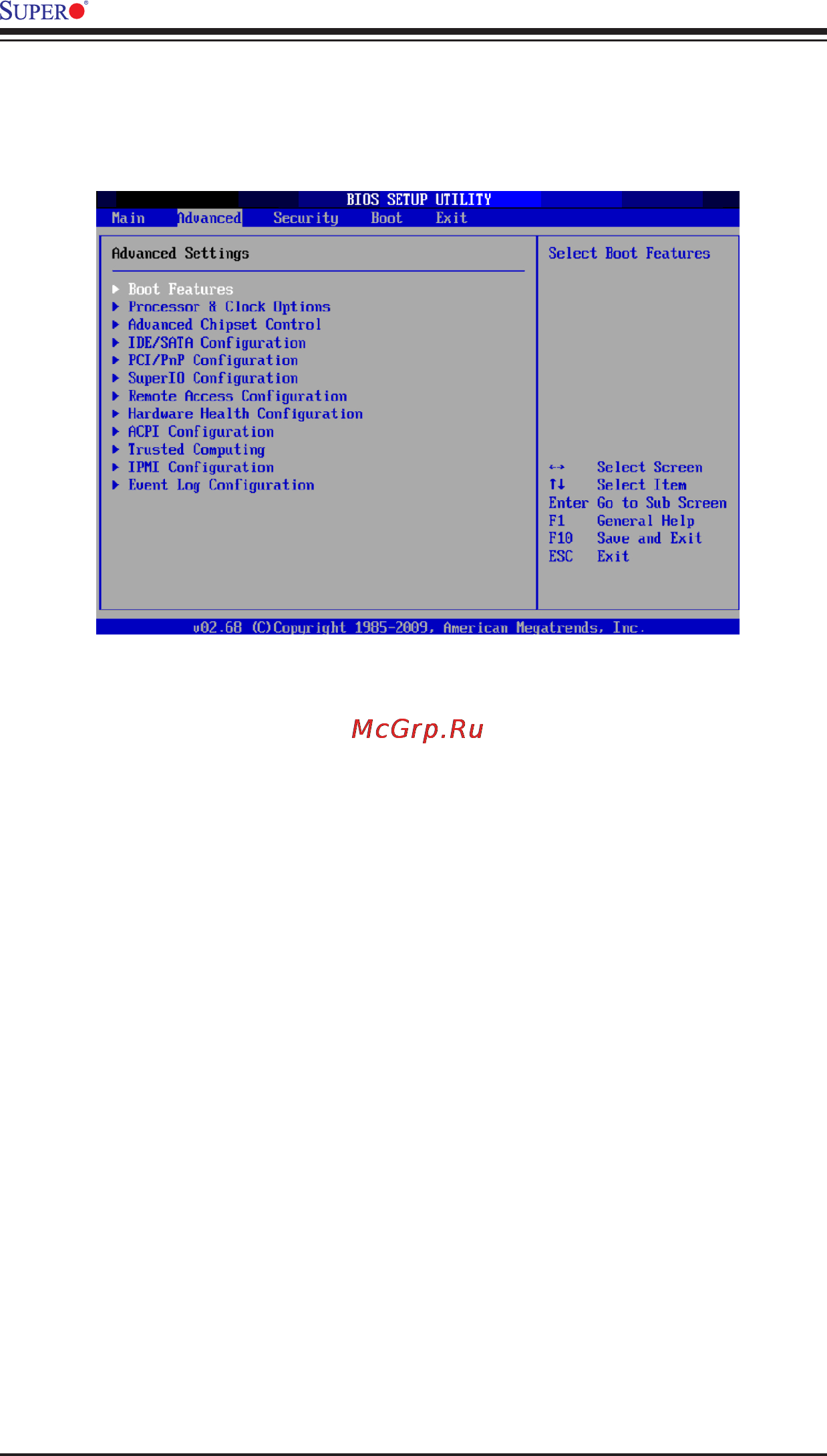

Use the arrow keys to select Boot Setup and press <Enter> to access the submenu
items.
Boot Features
Quick Boot
If Enabled, this option will skip certain tests during POST to reduce the time needed
for system boot. The options are Enabled and Disabled.
Quiet Boot
This option allows the user to modify the bootup screen display between POST
messages and the OEM logo. Select Disabled to display the POST messages.
Select Enabled to display the OEM logo instead of the normal POST messages.
The options are Enabled and Disabled.
AddOn ROM Display Mode
This sets the display mode for the Option ROM. The options are Force BIOS and
Keep Current.
Bootup Num-Lock
This feature selects the Power-on state for Numlock key. The options are Off
and On.
Wait For 'F1' If Error
This feature forces the system to wait until the 'F1' key is pressed if an error oc-
curs. The options are Disabled and Enabled.
