Chapter 2: Installation
2-17
IPMI CODE
SAS CODE
SAN MAC
BIOS
LICENSE
MAC CODE
BAR CODE
X10DRC/i-LN4+(-T4+)
Rev. 1.01

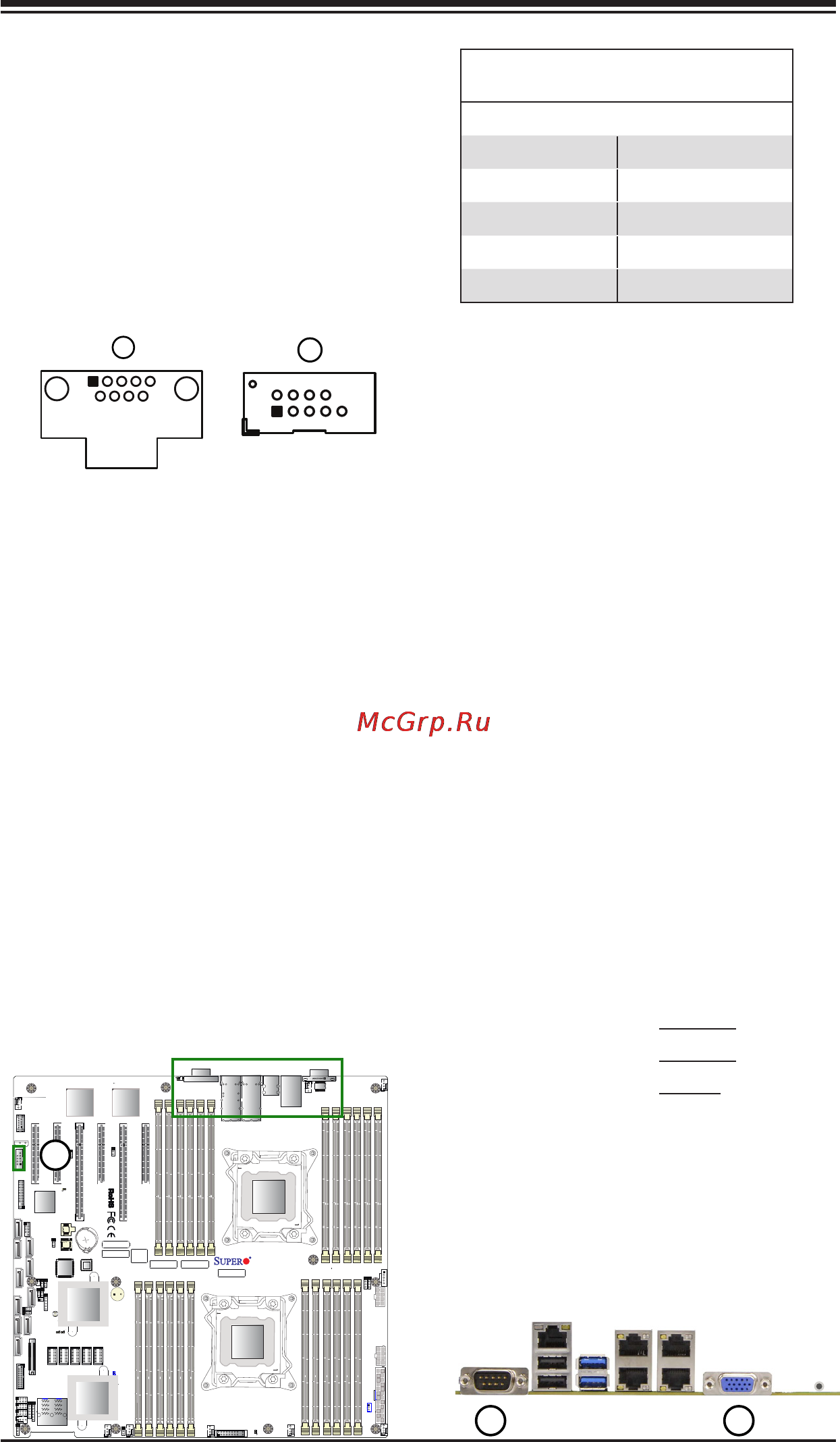

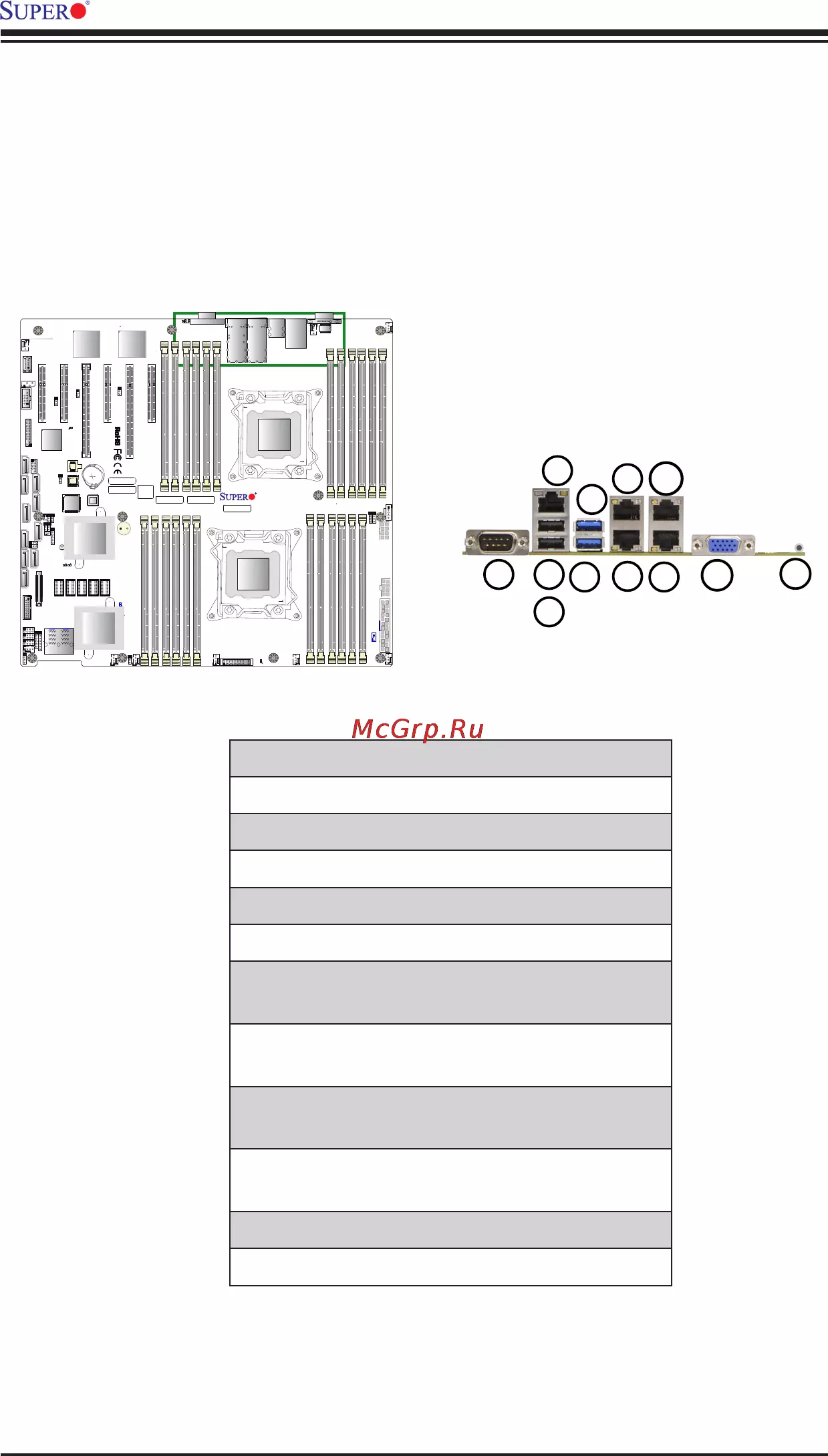

Video Connection
A Video (VGA) port is located next to
LAN Ports 3/4 on the I/O backplane.
Refer to the board layout below for
the location.
1. COM1
2. COM2
3. VGA
Serial Ports
Two COM connections (COM1 &
COM2) are located on the mother-
board. COM1 is located on the Back-
plane I/O panel. COM2, located next
to CPU2 PCI-E Slot1, provides front
access support. See the table on the
right for pin denitions.
Serial COM) Ports
Pin Denitions
Pin # Denition Pin # Denition
1 DCD 6 DSR
2 RXD 7 RTS
3 TXD 8 CTS
4 DTR 9 RI
5 Ground 10 N/A
COM1
COM2
COM1
COM2
2
1
2
1
3
