Chapter 2: Installation
2-37
IPMI CODE
SAS CODE
SAN MAC
T-SGPIO1
T-SGPIO2
JD1
JS39
LEDS6
LEDS5
LEDM1
LE2
LE1
FANB
FANA
FAN4
FAN3
FAN2
FAN1
FAN5
FAN6
JBT1
JIPMB1
SP1
JPS7
JPG1
JPLAN1
JPLAN2
JWD1
JPME2
JI2C2
JVRM1
JPB1
JTPM1
JSD2
JSD1
JS1
JPP0
JPP1
JPWR2
JPWR1
J24
JPI2C1
BIOS
LICENSE
MAC CODE
BAR CODE
SAS 4~7 (3.0)
SAS 0~3 (3.0)
P1-DIMMD3
P1-DIMMD2
P1-DIMMD1
P1-DIMMC3
P1-DIMMC2
P1-DIMMB3
P1-DIMMB2
P1-DIMMB1
P1-DIMMA3
P1-DIMMA2
P2-DIMMH3
P2-DIMMH2
P2-DIMMH1
P2-DIMMG3
P2-DIMMG2
P2-DIMMF3
P2-DIMMF2
P2-DIMMF1
P2-DIMME3
P2-DIMME2
USB 7/8 (3.0)
USB 0/1
P1-DIMMC1
P1-DIMMA1
CPU2 SLOT6 PCI-E 3.0 X8
CPU2 SLOT5 PCI-E 3.0 X16
CPU2 SLOT4 PCI-E 2.0 X4 IN X8
JL1
S-SATA0
CPU1 SLOT3 PCI-E 3.0 X16
S-SATA1
S-SATA2
CPU2 SLOT2 PCI-E 3.0 X8
S-SATA3
I-SATA0
I-SATA3
I-SATA4
I-SATA1
CPU2 SLOT1 PCI-E 3.0 X8
COM2
I-SATA5
UID
VGA
LAN3/4
LAN1/2
IPMI_LAN
COM1
CPU2
CPU1
P2-DIMME1
P2-DIMMG1
I-SATA2
JI2C1
CLOSE 1st
OPEN 1st
CLOSE 1st
OPEN 1st
USB 6 (3.0)
BIOS
USB2/3
S-SGPIO1
X10DRC/i-LN4+(-T4+)
Rev. 1.01
BMC
LAN CTRL
LSI 3108
SAS CTRL
Intel PCH
USB4/5
(3.0)
JBAT1
TPM/PORT80
JUIDB1
Front CTRL Panel
JF1
FANC
JVRM2
JSTBY1
1
LAN CTRL
DS13
JPS1

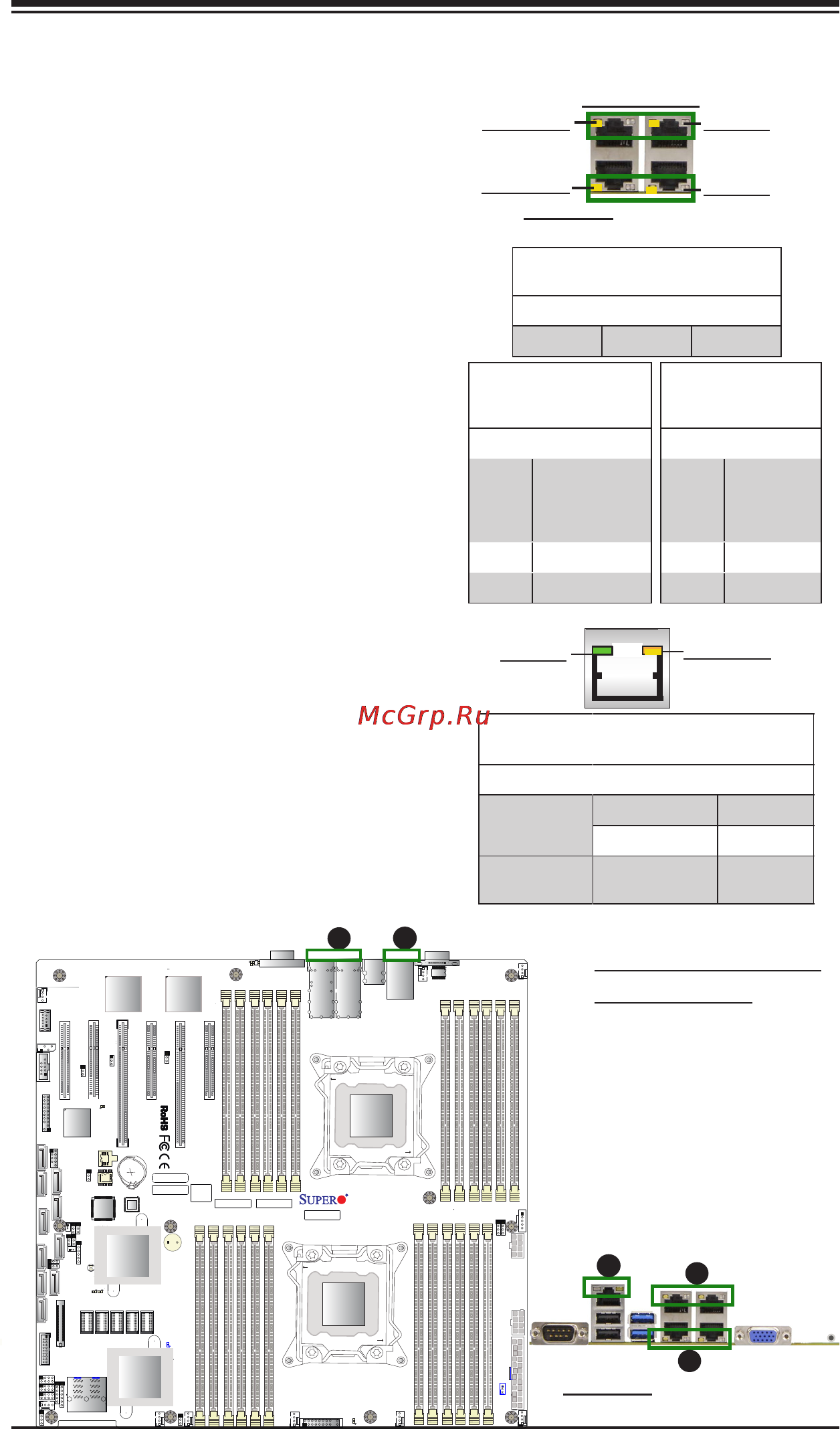

A. LAN1/2 & LAN3/4 LEDs
B. IPMI LAN LEDs
IPMI Dedicated LAN LEDs
In addition to LAN 1/LAN 2, an IPMI-LAN
is also located on the I/O back panel. The
amber LED on the right indicates activity,
while the green LED on the left indicates the
speed of the connection. See the tables at
right for more information.
LAN 1/LAN 2
IPMI LAN
(X8ST3-F)
Link LED
Activity LED
IPMI LAN
IPMI LAN Link LED (Left) &
Activity LED (Right)
Color/State Denition
Link (Left) Green: Solid 100 Mbps
Amber: Solid 1 Gbps
Activity (Right) Orange:
Blinking
Active
A
B
LAN Port LEDs
Four LAN ports (LAN 1/2 & LAN 3/4) are
located on the IO back panel of the moth-
erboard. Each Ethernet LAN port has two
LEDs. The orange LED on the left indicates
activity, while the other Link LED may be
green, amber or off to indicate the speed
of the connections. See the tables at right
for more information.
LAN Port Activity LED (Left)
LED State
Color Status Denition
Orange Flashing Active
A
B
2-9 LED Indicators
A
Rear View (when facing the
rear side of the chassis)
Rear View (when facing the
rear side of the chassis)
Activity LED
Activity LED
Link LED
Link LED
LAN Port LEDs
10G-LAN Link LED
Settings
(For X10DRC/i-T)
Color Denition
Off No Con-
nection,
10 or 100
Mbps
Green 10 Gbps
Amber 1 Gbps
LAN Link LED
Settings
(For X10DRC/i-LN4+)
Color Denition
Off No Connec-
tion, 10 Mbps
Green 100 Mbps
Amber 1 Gbps
