2-34
X10DRC/i-LN4+/-T4+ Motherboard User’s Manual
IPMI CODE
SAS CODE
SAN MAC
T-SGPIO1
T-SGPIO2
JD1
JS39
LEDS6
LEDS5
LEDM1
LE2
LE1
FANB
FANA
FAN4
FAN3
FAN2
FAN1
FAN5
FAN6
JBT1
JIPMB1
SP1
JPS7
JPG1
JPLAN1
JPLAN2
JWD1
JPME2
JI2C2
JVRM1
JPB1
JTPM1
JSD2
JSD1
JS1
JPP0
JPP1
JPWR2
JPWR1
J24
JPI2C1
BIOS
LICENSE
MAC CODE
BAR CODE
SAS 4~7 (3.0)
SAS 0~3 (3.0)
P1-DIMMD3
P1-DIMMD2
P1-DIMMD1
P1-DIMMC3
P1-DIMMC2
P1-DIMMB3
P1-DIMMB2
P1-DIMMB1
P1-DIMMA3
P1-DIMMA2
P2-DIMMH3
P2-DIMMH2
P2-DIMMH1
P2-DIMMG3
P2-DIMMG2
P2-DIMMF3
P2-DIMMF2
P2-DIMMF1
P2-DIMME3
P2-DIMME2
USB 7/8 (3.0)
USB 0/1
P1-DIMMC1
P1-DIMMA1
CPU2 SLOT6 PCI-E 3.0 X8
CPU2 SLOT5 PCI-E 3.0 X16
CPU2 SLOT4 PCI-E 2.0 X4 IN X8
JL1
S-SATA0
CPU1 SLOT3 PCI-E 3.0 X16
S-SATA1
S-SATA2
CPU2 SLOT2 PCI-E 3.0 X8
S-SATA3
I-SATA0
I-SATA3
I-SATA4
I-SATA1
CPU2 SLOT1 PCI-E 3.0 X8
COM2
I-SATA5
UID
VGA
LAN3/4
LAN1/2
IPMI_LAN
COM1
CPU2
CPU1
P2-DIMME1
P2-DIMMG1
I-SATA2
JI2C1
CLOSE 1st
OPEN 1st
CLOSE 1st
OPEN 1st
USB 6 (3.0)
BIOS
USB2/3
S-SGPIO1
X10DRC/i-LN4+(-T4+)
Rev. 1.01
BMC
LAN CTRL
LSI 3108
SAS CTRL
Intel PCH
USB4/5
(3.0)
JBAT1
TPM/PORT80
JUIDB1
Front CTRL Panel
JF1
FANC
JVRM2
JSTBY1
1
LAN CTRL
DS13
JPS1

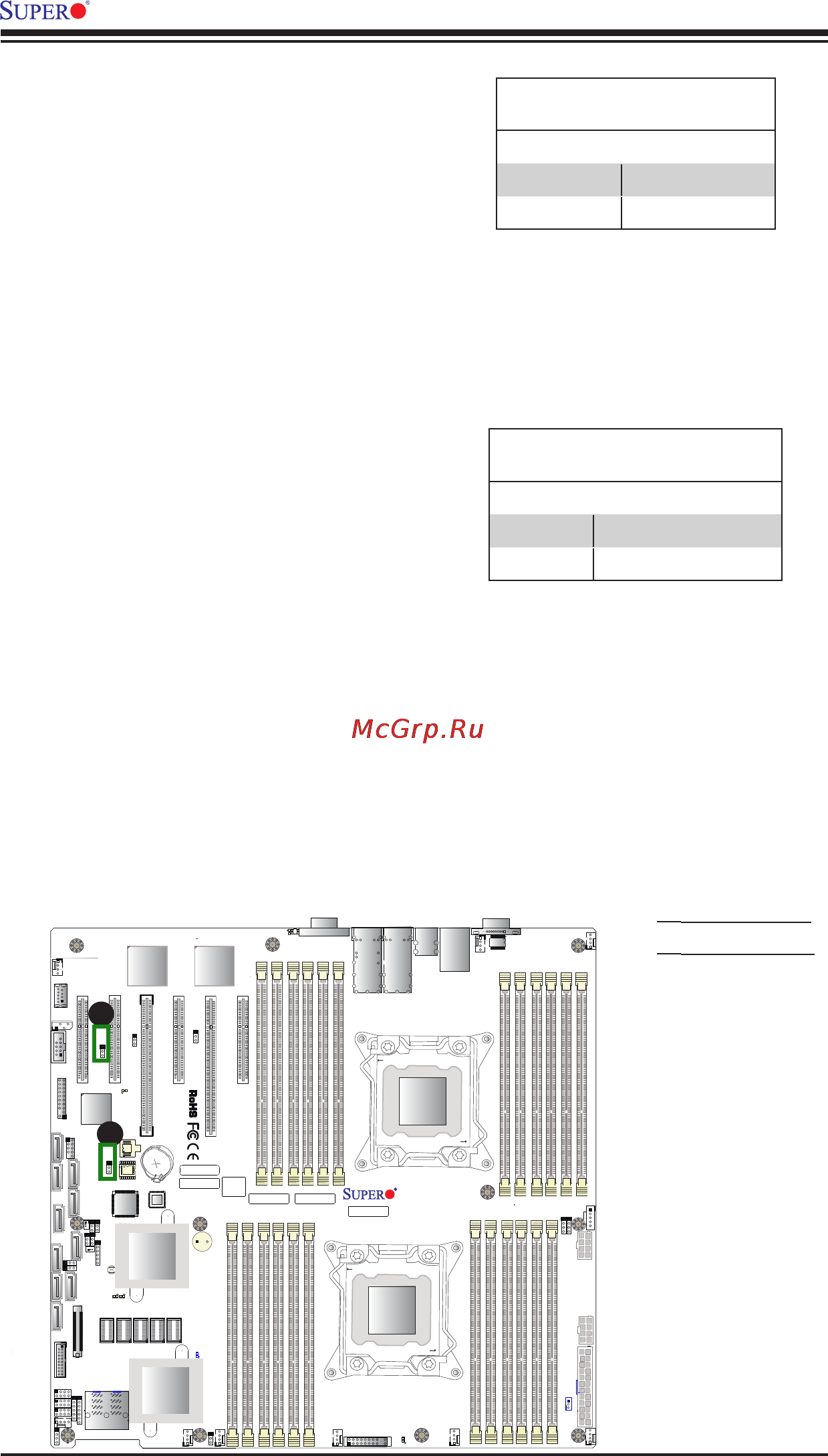

A. VGA Enabled
B. BMC Enabled
A
B
VGA Enable
Jumper JPG1 allows the user to enable
the onboard VGA connector. The default
setting is on pins 1-2 to enable the con-
nection. See the table on the right for
jumper settings.
VGA Enable
Jumper Settings
Jumper Setting Denition
1-2 Enabled (Default)
2-3 Disabled
BMC Enable
Jumper JPB1 allows you to enable the
embedded ASpeed AST 2400 BMC
(Baseboard Management) Controller to
provide IPMI 2.0/KVM support on the
motherboard. See the table on the right
for jumper settings.
BMC Enable
Jumper Settings
Jumper Setting Denition
Pins 1-2 BMC Enable (Default)
Pins 2-3 Disabled
