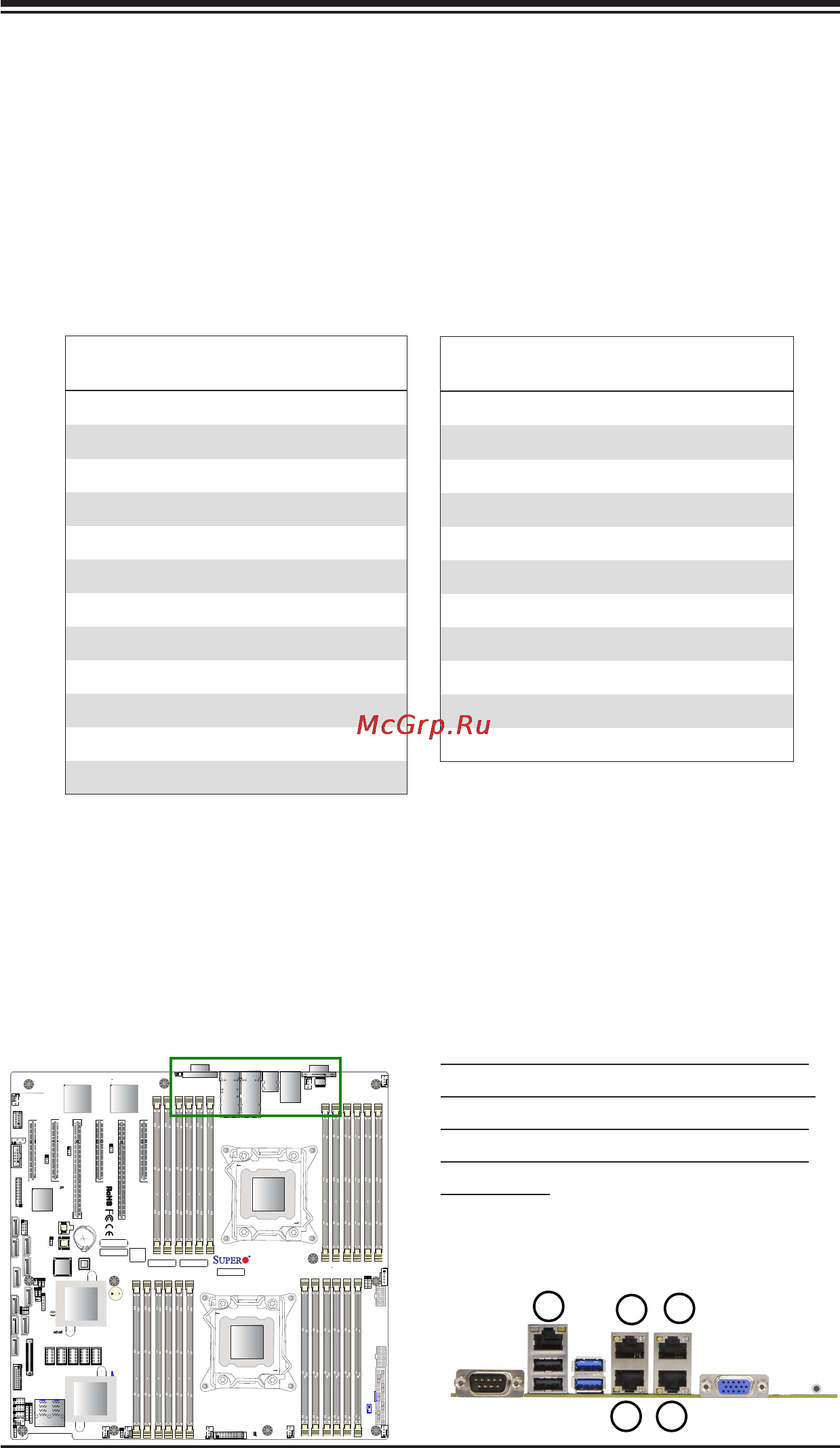

Chapter 2: Installation
2-19
IPMI CODE
SAS CODE
SAN MAC
BIOS
LICENSE
MAC CODE
BAR CODE
X10DRC/i-LN4+(-T4+)
Rev. 1.01
1. GLAN1 (for -LN4+),10-GLAN1 (for -T4+)
2. GLAN2 (for -LN4+), 10-GLAN2 (for -T4+)
3. GLAN3 (for -LN4+),10-GLAN3 (for -T4+)
4. GLAN4 (for -LN4+),10-GLAN4 (for -T4+)
5. IPMI_LAN
GLAN/10G-LAN (TLAN) Ports & IPMI_LAN Port
Four Ethernet ports (LAN1/2, LAN3/4) are located on the I/O backplane on the
motherboard. These Ethernet ports support Gigabit LANs on the X10DRC/i-LN4+
and support 10G-LANs on the X10DRC/i-T4+. In addition, an IPMI_LAN, located
above USB 0/1 ports, can be used for IPMI SOL (Serial-over LAN) support. All
these ports accept RJ45 type cables. Please refer to the LED Indicator Section for
LAN LED information.
GLAN/TLAN Ports
Pin Denition
Pin# Denition Pin# Denition
A1 TDR1+ A10 TDR4+
A3 TRCT1 A12 TRCT4
A2 TDR1- A11 TDR4-
A4 TDR2+- A13 IET+
A6 TRCT2 A14 IET-
A5 TDR2-- A15 YEL+
A7 TDR3+ A16 YEL-
A9 TRCT3 A17 ORG-/GRE+
A8 TDR3- A18 ORG+/GRE-
1
2
3
4
5
IPMI LAN Port
Pin Denition
Pin# Denition Pin# Denition
11 TX1- 20 YEL+
10 TX1+ 19 YEL-
13 TX2- 22 ORG-/GRN+
12 TX2+- 21 ORG+/GRN-
15 TX3- 23 SGND
14 TX3+ 24 SGND
17 TX4- 25 SGND
16 TX4+ 26 SGND
9 VCC
18 GND
