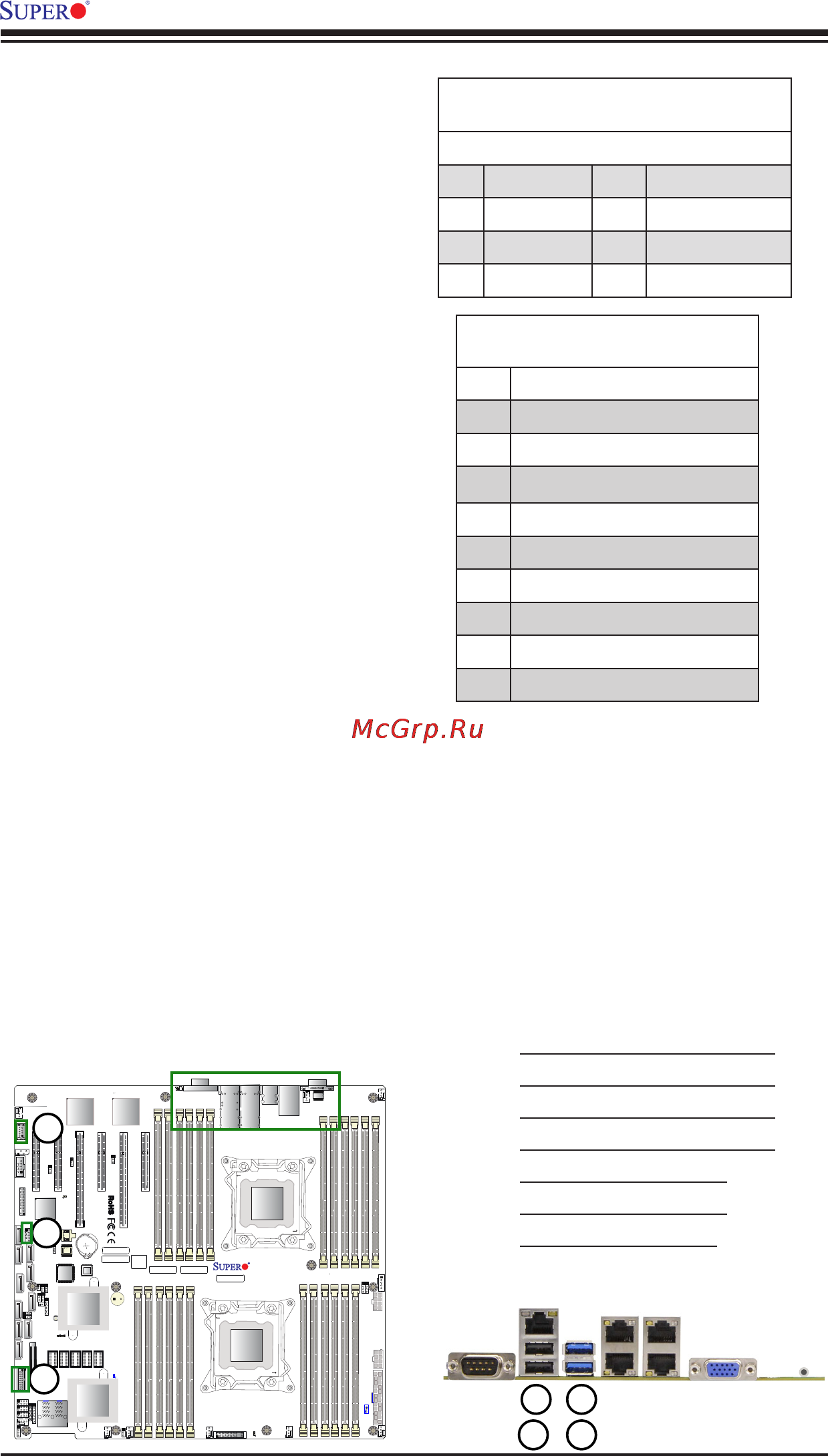

2-18
X10DRC/i-LN4+/-T4+ Motherboard User’s Manual
IPMI CODE
SAS CODE
SAN MAC
BIOS
LICENSE
MAC CODE
BAR CODE
X10DRC/i-LN4+(-T4+)
Rev. 1.01
1
1. Backpanel USB0 (USB 2.0)
2. Backpanel USB1 (USB 2.0)
3. Backpanel USB4 (USB 3.0)
4. Backpanel USB5 (USB 3.0)
5. FP USB 7/8 (USB3.0)
6. FP USB 2/3 (USB2.0)
7. FP USB 6 (USB 3.0)
Universal Serial Bus (USB)
Two USB 2.0 ports (USB 0/1) and two
USB 3.0 ports (USB 4/5), located on
the I/O backpanel, provide backpanel
USB support. In addition, two USB 3.0
headers, located on the motherboard,
provide three front accessible USB
3.0 connections (USB 7/8, USB6).
A USB 2.0 header is also located
on the motherboard to provide two
USB 2.0 connections (USB 2/3) for
front access support. (Cables are not
included). See the tables on the right
for pin denitions.
2
3
4
5
6
7
Back Panel USB (2.0) 0/1, 2/3
Pin Denitions
Pin# Denition Pin# Denition
1 +5V 5 +5V
2 USB_PN1 6 USB_PN0
3 USB_PP1 7 USB_PP0
4 Ground 8 Ground
USB (3.0) USB 4/5, 7/8, 6
Pin Denitions
Pin# Description
1 VBUS
2 SSRX-
3 SSRX+
4 Ground
5 SSTX-
6 SSTX+
7 GND_DRAIN
8 D-
9 D+
