AWK-4121 Introduction
1-6
Power Consumption:
• 0.121 to 0.494 A @ 12 to 48 VDC
• 0.3 A @ 24 VDC
Reverse Polarity Protection:
Present
Standards and Certifications
Safety:
UL 60950-1, EN 60950-1
EMC:
EN 301 489-1/17, FCC Part 15 Subpart B Class B, EN 55022/55024
Radio:
EN 300 328, EN 301 893, TELEC
Note: Please check Moxa’s website for the most up
-to-date certification status.
Reliability
MTBF (mean time between failures):
364,564 hours
Warranty
Warranty Period:
5 years
Details:
See www.moxa.com/warranty
ATTENTION
The AWK
-4121 is NOT a portable mobile device and should be located at least 20 cm away from the human
body.
The AWK
-4121 is NOT designed for the general public. A well-
trained technician should be enlisted to ensure
safe deployment of
AWK-4121 units, and to establish a wireless network.
Patent http://www.moxa.com/doc/operations/Moxa_Patent_Marking.pdf

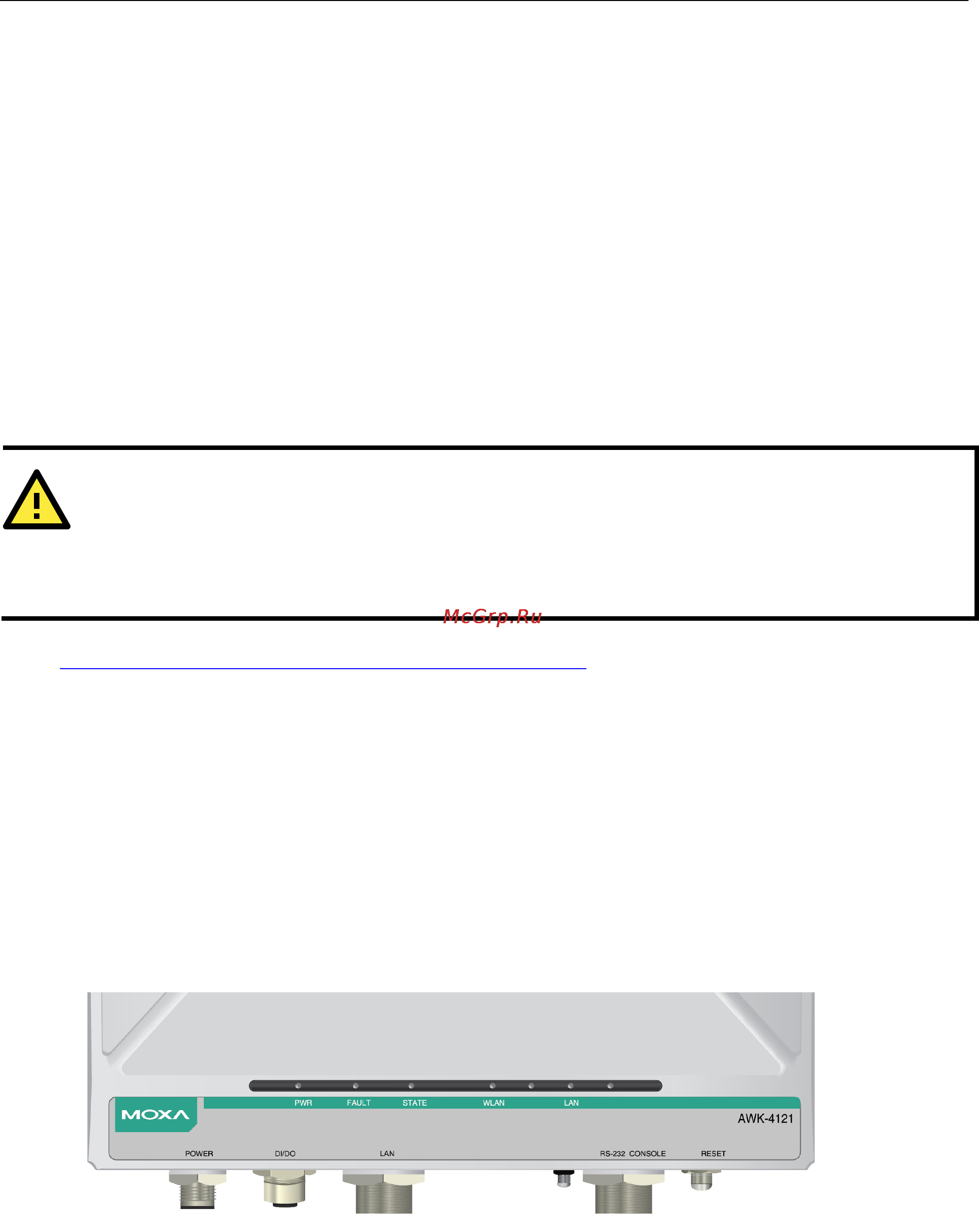

Functional Design
LED Indicators
The LEDs on the front panel of AWK-4121 provide a quick and easy means of determining the current
operational status and wireless settings.
The FAULT LED indicates system failures and user-configured events. If the AWK-4121 cannot retrieve the IP
address from a DHCP server, the FAULT LED will blink at one-second intervals.
