AWK-4121 Introduction
1-8
Reset Button
The RESET button is located on the bottom panel of the AWK-4121. You can reboot the AWK-4121 or reset it
to factory default settings by pressing the RESET button with a pointed object such as an unfolded paper clip.
• System reboot: Hold the RESET button down for under 5 seconds and then release.
• Reset to factory default: Hold the RESET button down for over 5 seconds until the STATE LED starts
blinking green. Release the button to reset the AWK-4121.

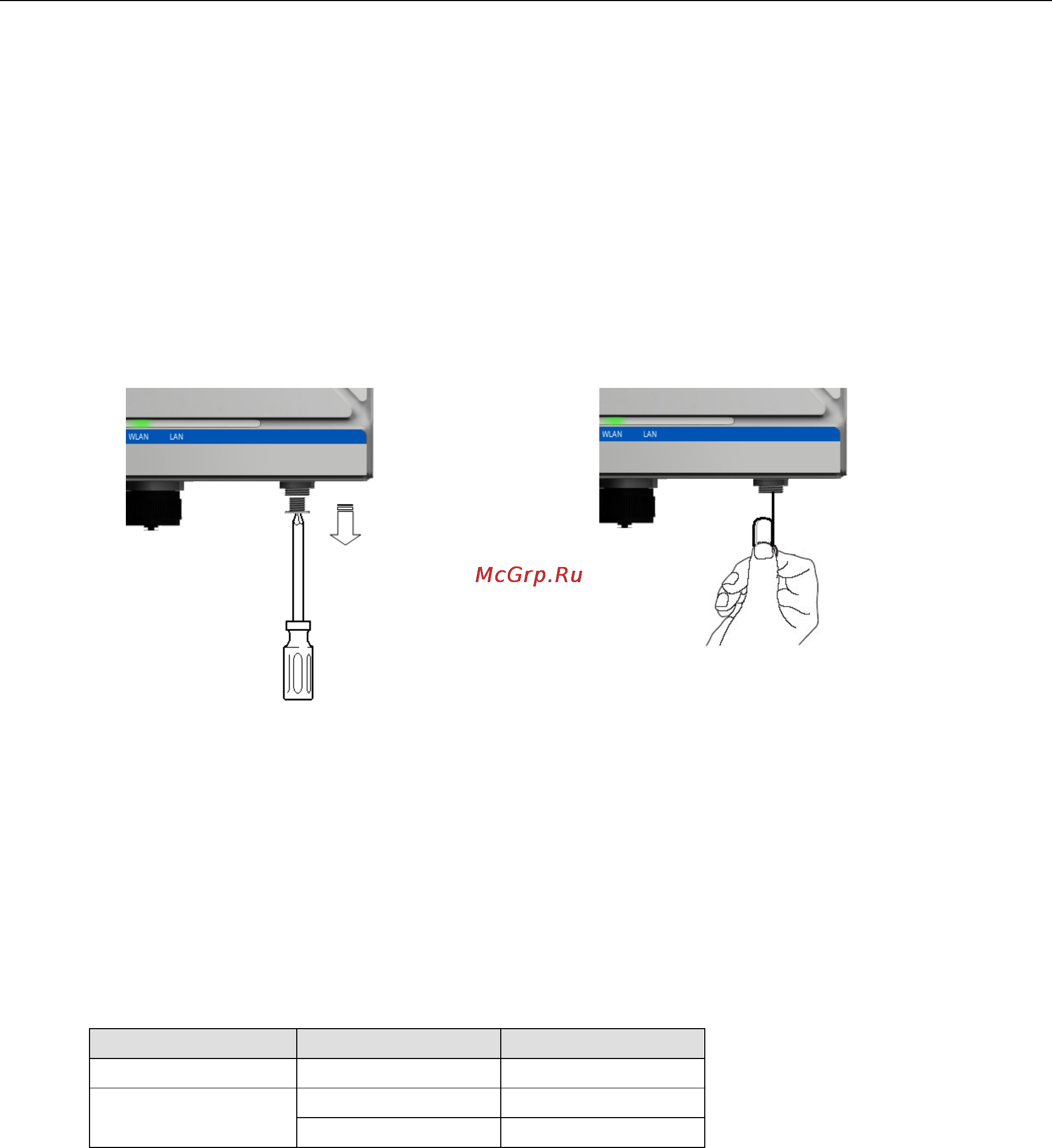

STEP 1:
Remove the reset button cover.
STEP 2:
Using a pointed object, press and hold the reset
button.
Relay (Digital Output)
The AWK-4121 has one relay output, which consists of the 2 contacts for the 8-pin M12 connector on the
bottom panel, as shown below. These relay contacts forward system failure and user-configured events.
The two wires attached to the relay contacts form an open circuit when a user-configured event is triggered. If
a user-configured event does not occur, the relay circuit will remain closed. For safety reason, the relay circuit
is kept open when the AWK-4121 is not powered.
The AWK-4121’s relay status is summarized as follows:
Power Status Event Relay
Off – Open
On Yes Open
No Short
