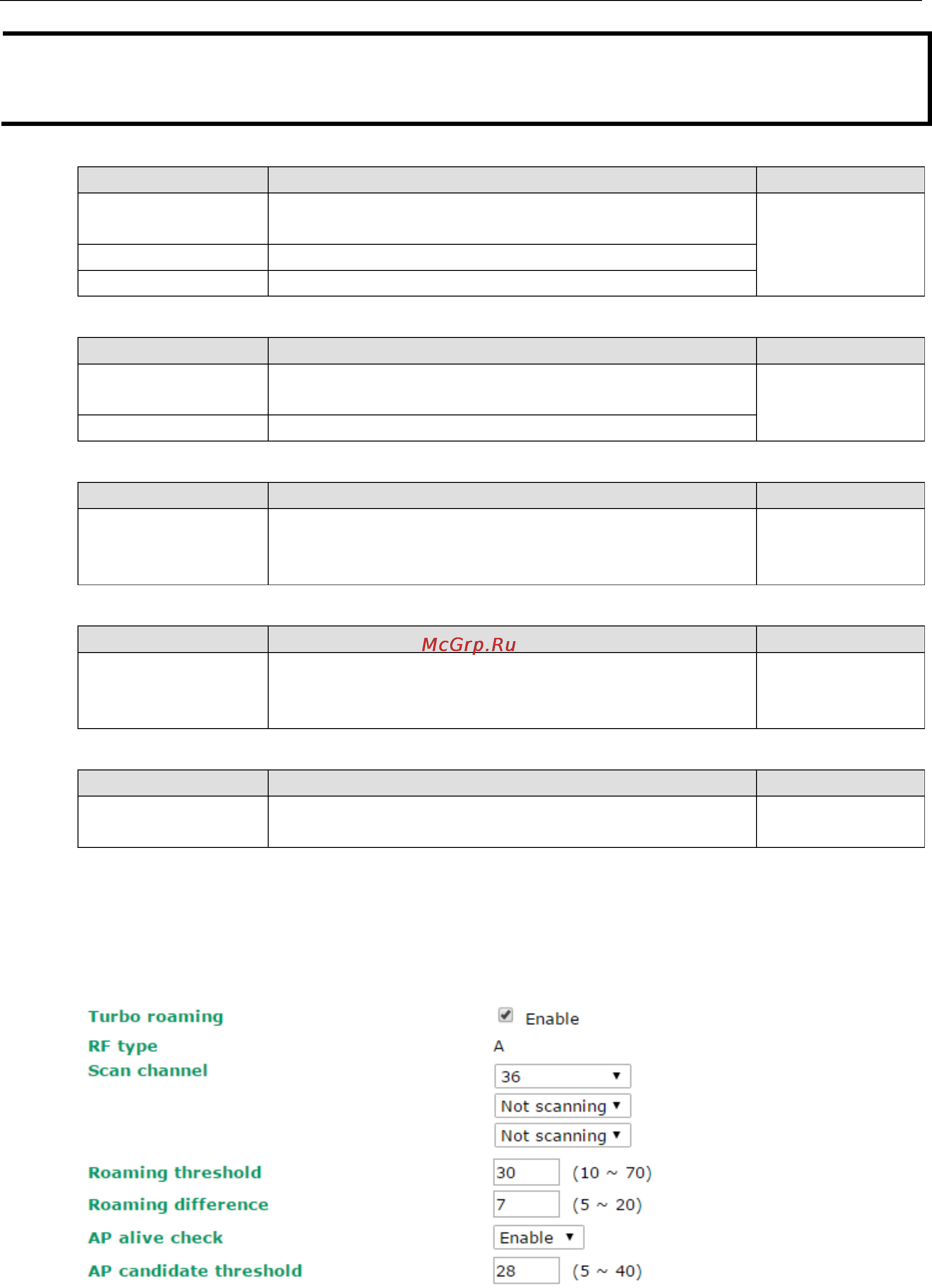

AWK-4121 Web Console Configuration
3-20
NOTE
Make sure the same
Transmission distance parameters are set in both AP and Client sides, and both
Bridges
. When this parameter is more than 500, an optimal algorithm will be enabled to support long-
distance
transmission.
Antenna
Setting Description Factory Default
Auto The AWK-4121 uses two antennas (MAIN and AUX) and
enables the diversity function for reducing multipath effects.
Auto
MAIN Diversity function is disabled. Only MAIN antenna is in use.
AUX Diversity function is disabled. Only AUX antenna is in use.
EAPOL version
Setting Description Factory Default
1 EAPOL version 1 was standardized in the 2001 version of
802.1X, which is much more commonly implemented.
1
2 EAPOL version 2 was specified in 802.1X-2004.
WMM
Setting Description Factory Default
Enable/ Disable
WMM is a QoS standard for WLAN traffic. Voice and video data
will be given priority bandwidth when enabled with WMM
supported wireless clients.
Disable
Full 11a channel support
Setting Description Factory Default
Enable/ Disable “Full 11a channel support” allows users to select one channel
from 802.11a, including channels in licensed and unlicensed
bands.
Disable
Turbo Roaming (for Client mode only)
Setting Description Factory Default
Enable/ Disable Moxa’s Turbo Roaming can enable rapid handover when the
AWK-4121, as a client, roams among a group of APs.
Disable
When Turbo Roaming is enabled, RF type and Scan channels will be shown as follows. RF type shows the
current RF type, which this client is using now. You can set up Scan channels for the APs among which this
client is going to roam. There are three Scan channels available. Please note that the Scan channels may need
to be modified when the RF type is changed. (For example, channel 36 is not available in B, G or B/G Mix
mode.)
