AWK-4121 Web Console Configuration
3-5
Basic Settings
The Basic Settings group includes the most commonly used settings required by administrators to maintain and
control the AWK-4121.

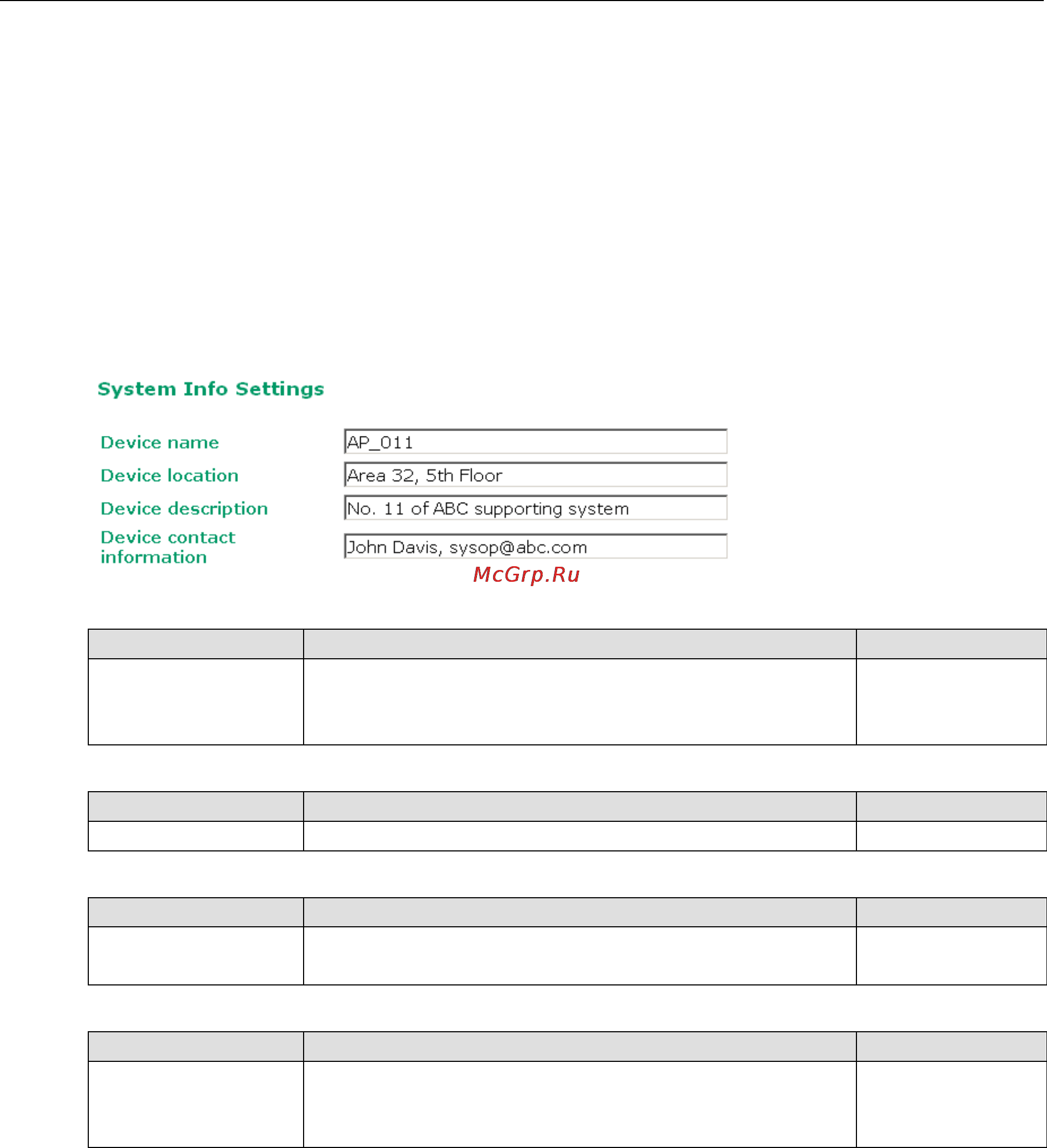

System Info Settings
The System Info items, especially Device name and Device description, are displayed and included on the
Overview page, SNMP information, and alarm emails. Setting System Info items makes it easier to identify
the different AWK-4121s connected to your network.
Device name
Format Description Factory Default
Max. 31 Characters This option is useful for specifying the role or application of
different AWK-4121 units.
AWK-4121_<Serial
No. of this
AWK-4121>
Device location
Format Description Factory Default
Max. 31 Characters This specifies the location of different AWK-4121 units. None
Device description
Format Description Factory Default
Max. 31 Characters Use this space to record more detailed description of
AWK-4121.
None
Device name
Format Description Factory Default
Max. 31 Characters To provide information about whom to contact in order to
resolve problems, use this space to record contact information
of the person responsible for maintaining this AWK-4121.
None
