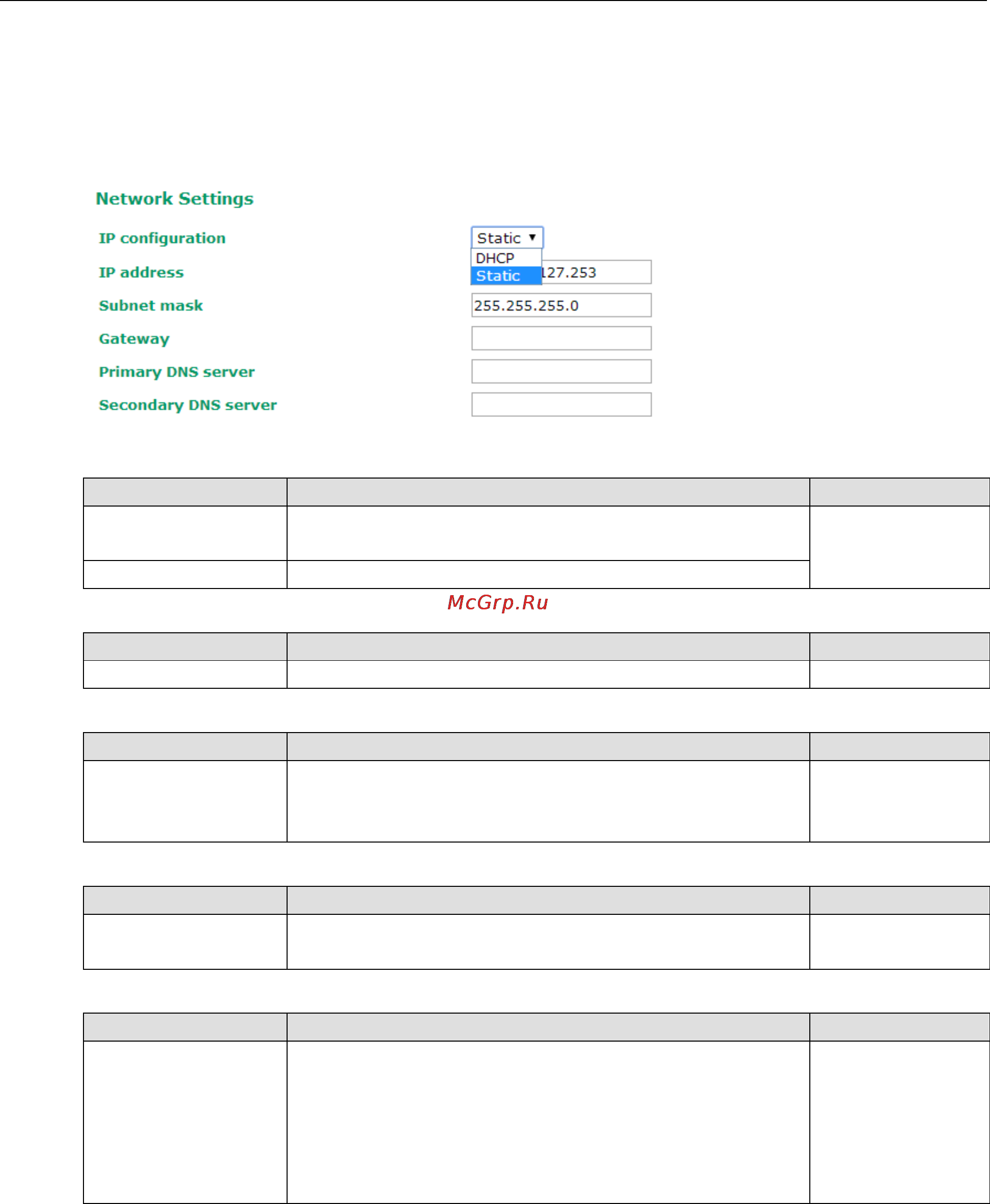

AWK-4121 Web Console Configuration
3-6
Network Settings
The Network Settings configuration allows you to modify the usual TCP/IP network parameters. An
explanation of each configuration item is given below.
IP configuration
Setting Description Factory Default
DHCP The AWK-4121’s IP address will be assigned automatically by
the network’s DHCP server
Static
Static Set up the AWK-4121’s IP address manually.
IP address
Setting Description Factory Default
AWK-4121’s IP address
Identifies the AWK-4121 on a TCP/IP network. 192.168.127.253
Subnet mask
Setting Description Factory Default
AWK-4121’s subnet
mask
Identifies the type of network to which the AWK-4121 is
connected (e.g., 255.255.0.0 for a Class B network, or
255.255.255.0 for a Class C network).
255.255.255.0
Gateway
Setting Description Factory Default
AWK-4121’s default
gateway
The IP address of the router that connects the LAN to an
outside network.
None
Primary/ Secondary DNS server
Setting Description Factory Default
IP address of Primary/
Secondary DNS server
The IP address of the DNS Server used by your network. After
entering the DNS Server’s IP address, you can input the
AWK-
4121’s URL (e.g., http://ap11.abc.com) in your browser’s
address field instead of entering the IP address. The Secondary
DNS server will be used if the Primary DNS server fails to
connect.
None
