AWK-4121 Web Console Configuration
3-24
VLAN Tagged
Setting Description Factory Default
A comma-separated
list
of VLAN IDs. Each of
the VLAN IDs range
from 1 to 4094.
Specify which VLANs can communicate with this specific VLAN.
(Empty)
NOTE
The VLAN feature can allow wireless clients to manage the AP. If the VLAN Management ID matches a VLAN ID,
then those wireless clients who are members of that VLAN will have AP management access.
CAUTION: Once a VLAN
Management ID is configured and is equivalent to one of the VLAN IDs on the AP, all
members of that User VLAN will have management access to the AP. Be careful to restrict VLAN membership
to those with legitimate access to the AP.
DHCP Server (for AP mode only)
DHCP (Dynamic Host Configuration Protocol) is a networking protocol that allows administrators to assign
temporary IP addresses to network computers by “leasing” an IP address to a user for a limited amount of time,
instead of assigning permanent IP addresses.
The AWK-4121 can act as a simplified DHCP server and easily assign IP addresses to your DHCP clients by
responding to the DHCP requests from the client ends. The IP-related parameters you set on this page will also
be sent to the client.
You can also assign a static IP address to a specific client by entering its MAC address. The AWK-4121 provides
a Static DHCP mapping list with up to 16 entities. Be reminded to check the Active check box for each entity
to activate the setting.
You can check the IP assignment status under Status
DHCP Client List.

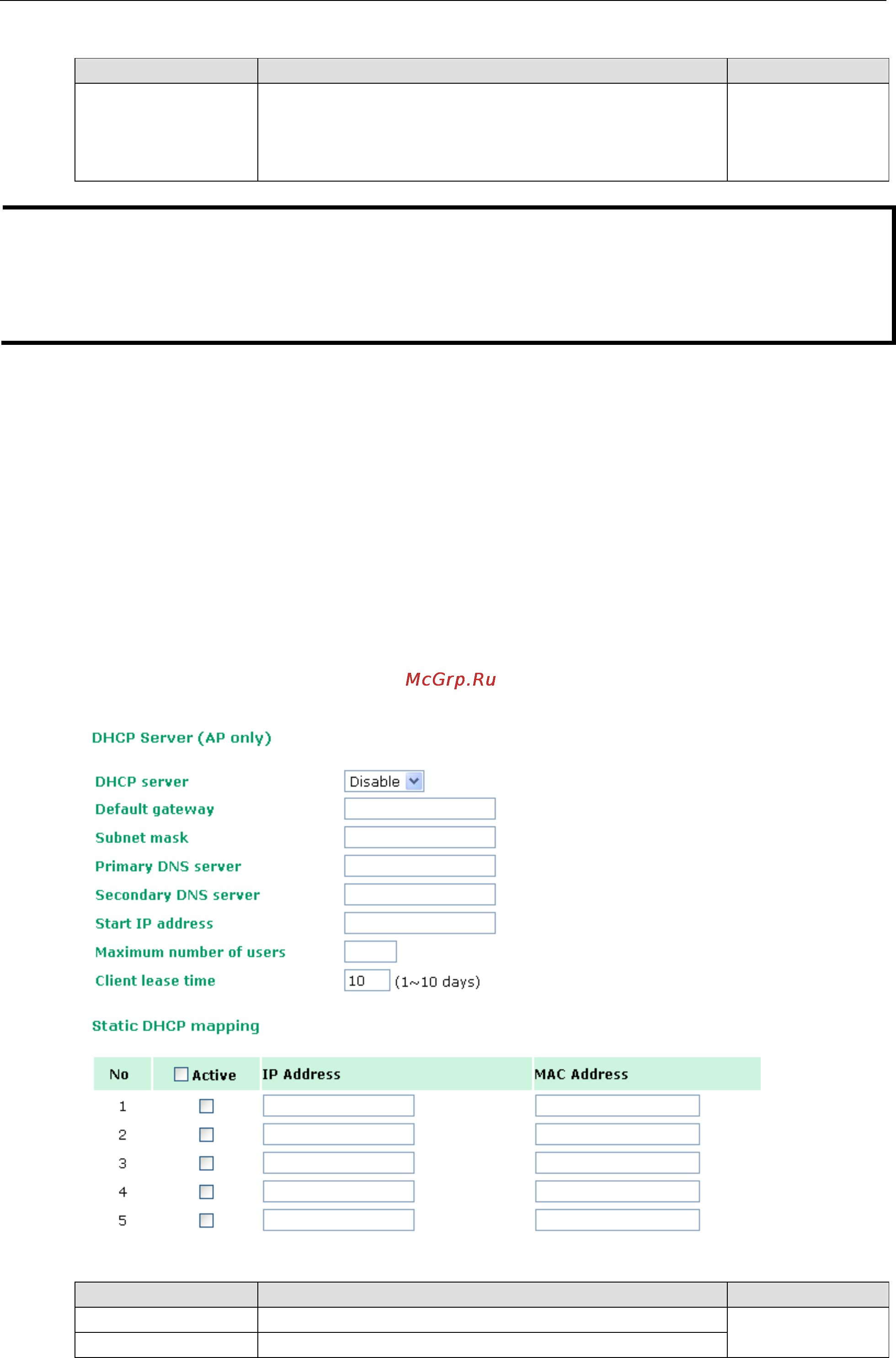

DHCP server
Setting Description Factory Default
Enable Enables AWK-4121 as a DHCP server Disable
Disable Disable DHCP server function
