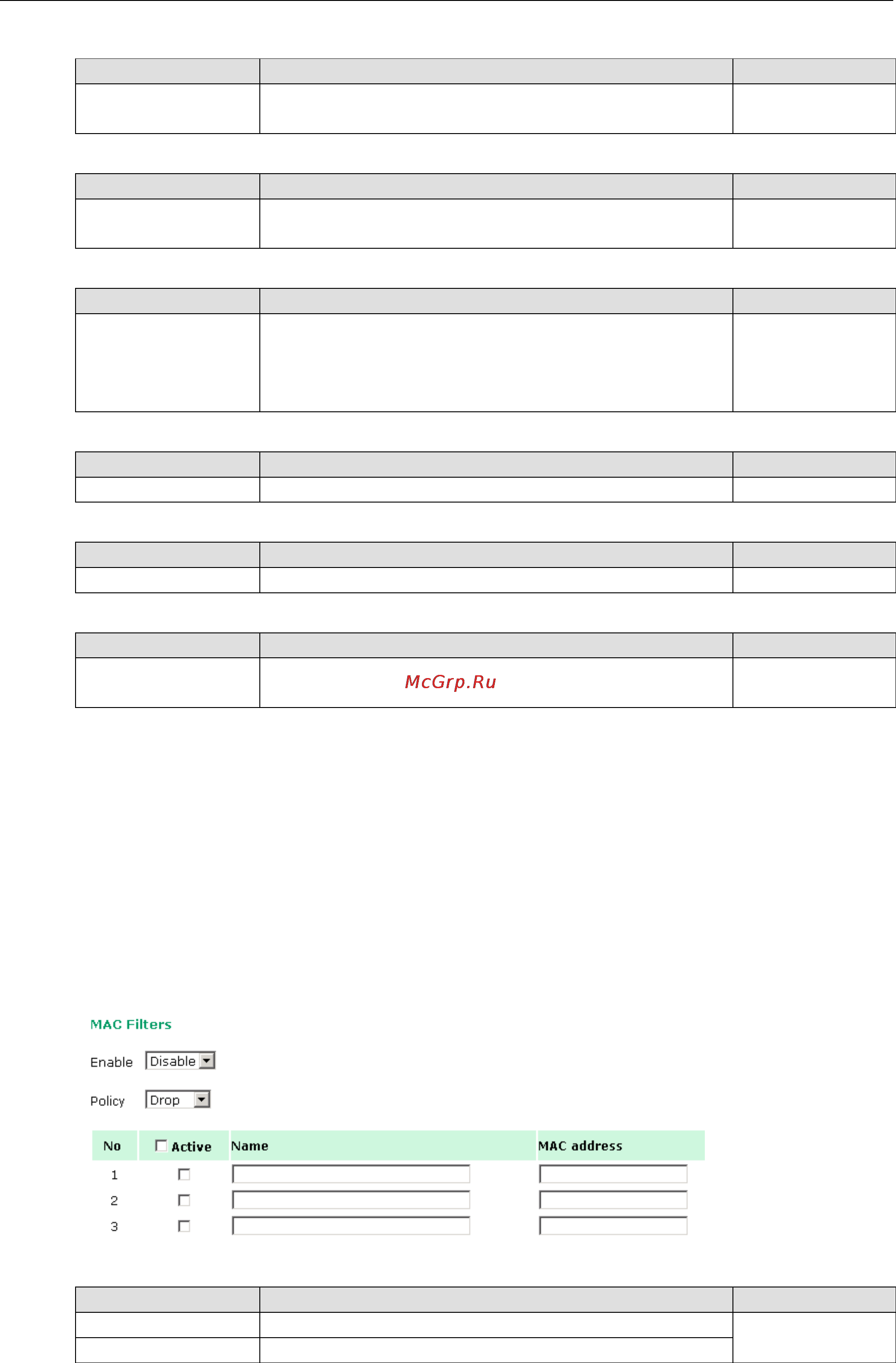

![Moxa AWK-4121-EU-T [43/89] Packet filters](/views2/1198170/page43/bg2b.png)
AWK-4121 Web Console Configuration
3-25
Default gateway
Setting Description Factory Default
IP address of a default
gateway
The IP address of the router that connects to an outside
network
None
Subnet mask
Setting Description Factory Default
subnet mask Identifies the type of sub-network (e.g., 255.255.0.0 for a
Class B network, or 255.255.255.0 for a Class C network)
None
Primary/ Secondary DNS server
Setting Description Factory Default
IP address of Primary/
Secondary DNS server
The IP address of the DNS Server used by your network. After
entering the DNS Server’s IP address, you can use URL
as well.
The Secondary DNS server will be used if the Primary DNS
server fails to connect.
None
Start IP address
Setting Description Factory Default
IP address Indicates the IP address which AWK-4121 can start assigning None
Maximum number of users
Setting Description Factory Default
1 – 999 Specifies how many IP address can be assigned continuously None
Client lease time
Setting Description Factory Default
1 – 10 days The lease time for which an IP address is assigned. The IP
address may go expired after the lease time is reached.
10 (days)
Packet Filters
The AWK-4121 includes various filters for IP-based packets going through LAN and WLAN interfaces. You can
set these filters as a firewall to help enhance network security.
MAC Filter
The AWK-4121’s MAC filter is a policy-based filter that can allow or filter out IP-based packets with specified
MAC addresses. The AWK-4121 provides 8 entities for setting MAC addresses in your filtering policy.
Remember to check the Active check box for each entity to activate the setting.
Enable
Setting Description Factory Default
Enable Enables MAC filter Disable
Disable Disables MAC filter
