AWK-4121 Web Console Configuration
3-3
In the following paragraphs, we will go through each of the AWK-4121’s management functions in detail. You
can also get a quick overview of these functions in the Function Guide section of Chapter 2.
ATTENTION
The model name of the AWK
-4121 is shown as AWK-4121-XX where XX indicates the country code. The
country code represents the AWK
-4121 version and which bandwidth it uses. We use AWK-4121-US as an

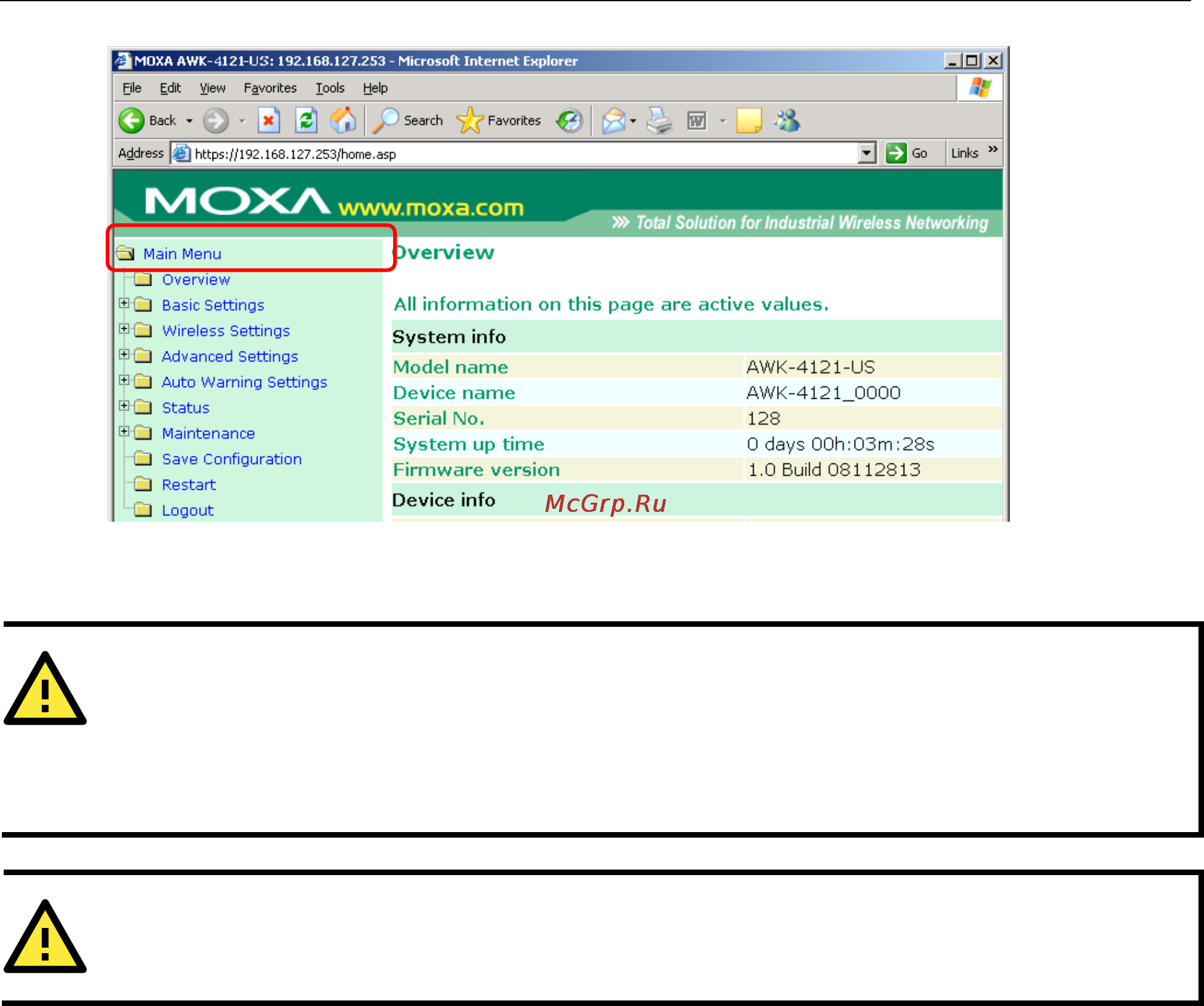

example in the following figures. The country code for the model name on your screen may vary if you are using
a different version (band) AWK
-4121.
ATTENTION
For security reasons, you will need to log back into the AWK
-4121 after the 5-minute time-out.
