Moxa IA3341-LX [12/72] Configuring the ethernet interface

IA3341 Linux User’s Manual Getting Started

2-4

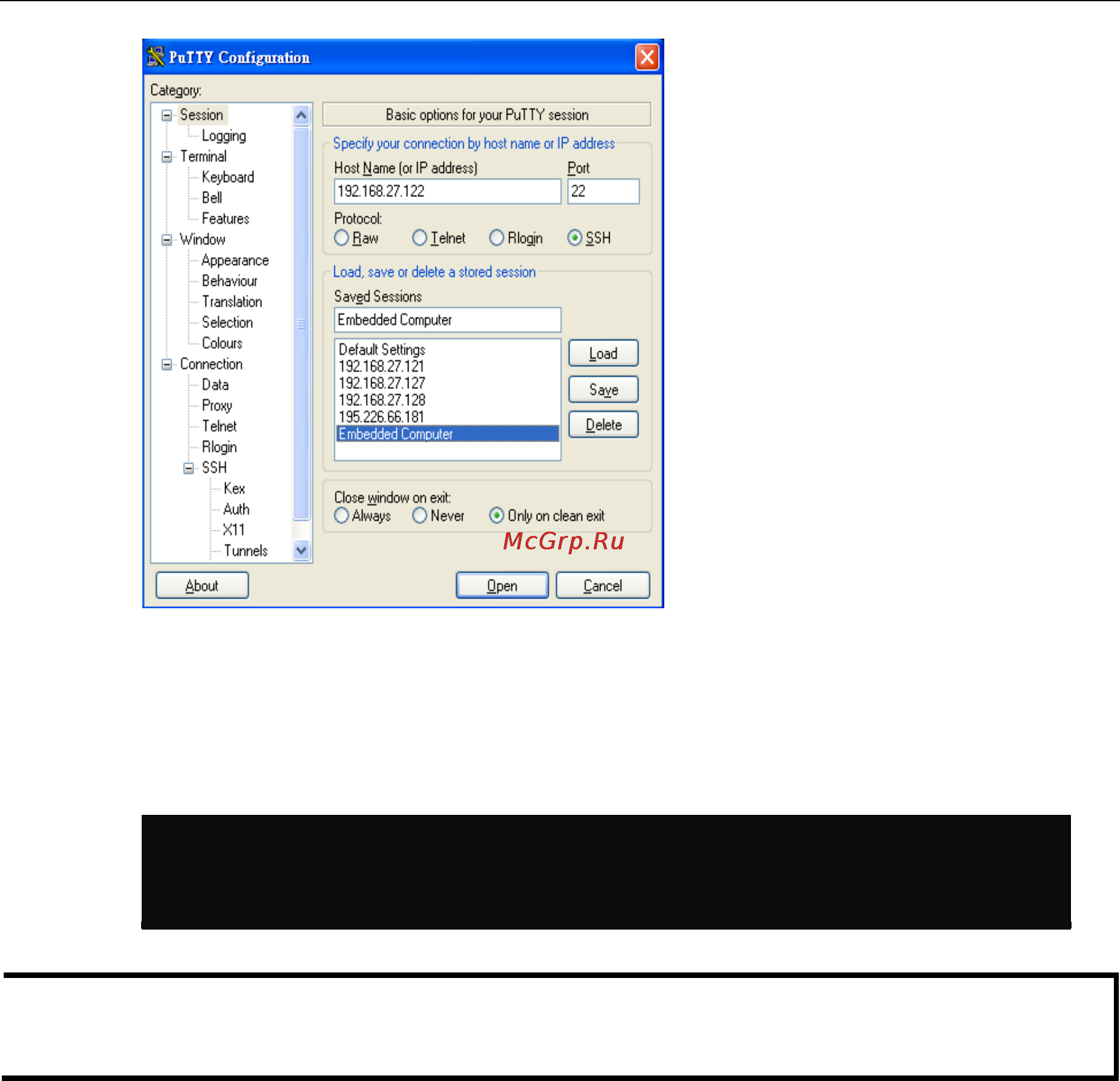

Linux Users

From a Linux machine, use the “ssh” command to access the IA3341’s console utility via SSH.

#ssh 192.168.3.127

Select yes to complete the connection.

[root@localhost root]# ssh 192.168.4.127

The authenticity of host ‘192.168.4.127 (192.168.3.127)’ can’t be established.

RSA key fingerprint is 8b:ee:ff:84:41:25:fc:cd:2a:f2:92:8f:cb:1f:6b:2f.

Are you sure you want to continue connection (yes/no)? yes_

NOTE SSH provides better security compared to Telnet for accessing the IA3341’s console utility over

the network.

Configuring the Ethernet Interface

The network settings of the IA3341 can be modified with the serial console, or online over the

network.
