IA3341 Linux User’s Manual Getting Started
2-7
Installing the Tool Chain (Linux)
The Linux Operating System must be pre-installed in the PC before installing the IA3341 GNU
Tool Chain. Fedora core or compatible versions are recommended. The Tool Chain requires
approximately200 MB of hard disk space on your PC. The IA3341 Tool Chain software is located
on the IA3341 CD. To install the Tool Chain, insert the CD in your PC and then issue the
following commands:
#mount /dev/cdrom /mnt/cdrom
#sh /mnt/cdrom/tool-chain/linux/install.sh
The Tool Chain will be installed automatically on your Linux PC within a few minutes. Before
compiling the program, be sure to set the following path first, since the Tool Chain files, including
the compiler, link, library, and include files are located in this directory.
PATH=/usr/local/arm-linux/bin:$PATH
Setting the path allows you to run the compiler from any directory.

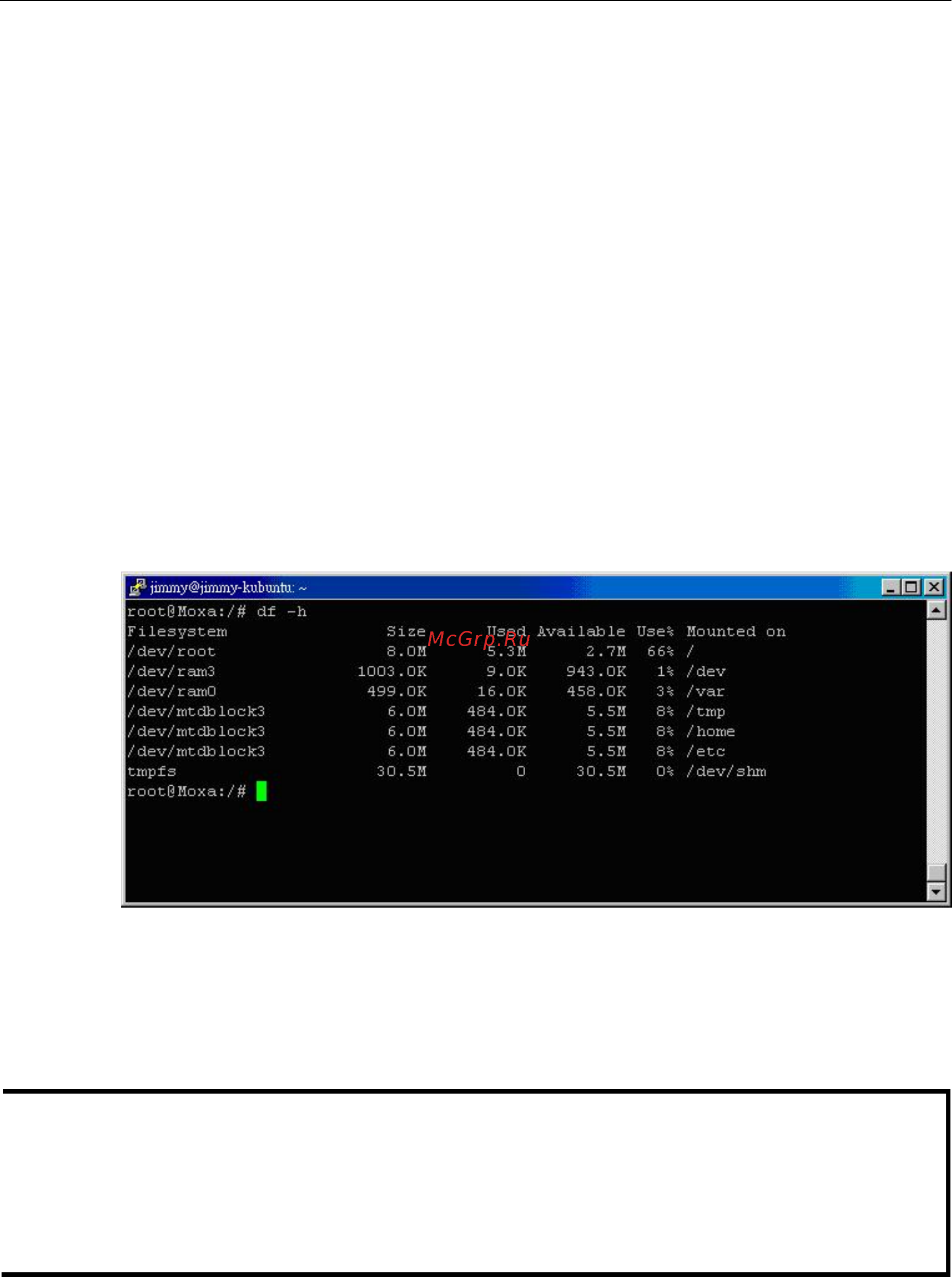

Checking the Flash Memory Space
If the flash memory is full, you will not be able to save data to the Flash ROM. Use the following
command to calculate the amount of “Available” flash memory:
/>df –h
If there isn’t enough “Available” space for your application, you will need to delete some existing
files. To do this, connect your PC to the IA3341 with the console cable, and then use the console
utility to delete the files from the IA3341’s flash memory. To check the amount of free space
available, look at the directories in the read/write directory /dev/mtdblock3. Note that the
directories /home and /etc are both mounted in the directory /dev/mtdblock3.
NOTE If the flash memory is full, you will need to free up some memory space before saving files to
the Flash ROM.
You can ONLY write files in /home, /tmp, /etc, /var directories. Files in /var directory will not
be kept after reboot. Users are not allowed to have write privilege in other directories, including
the directory /root.
