IA3341 Linux User’s Manual Managing Communications

4-16

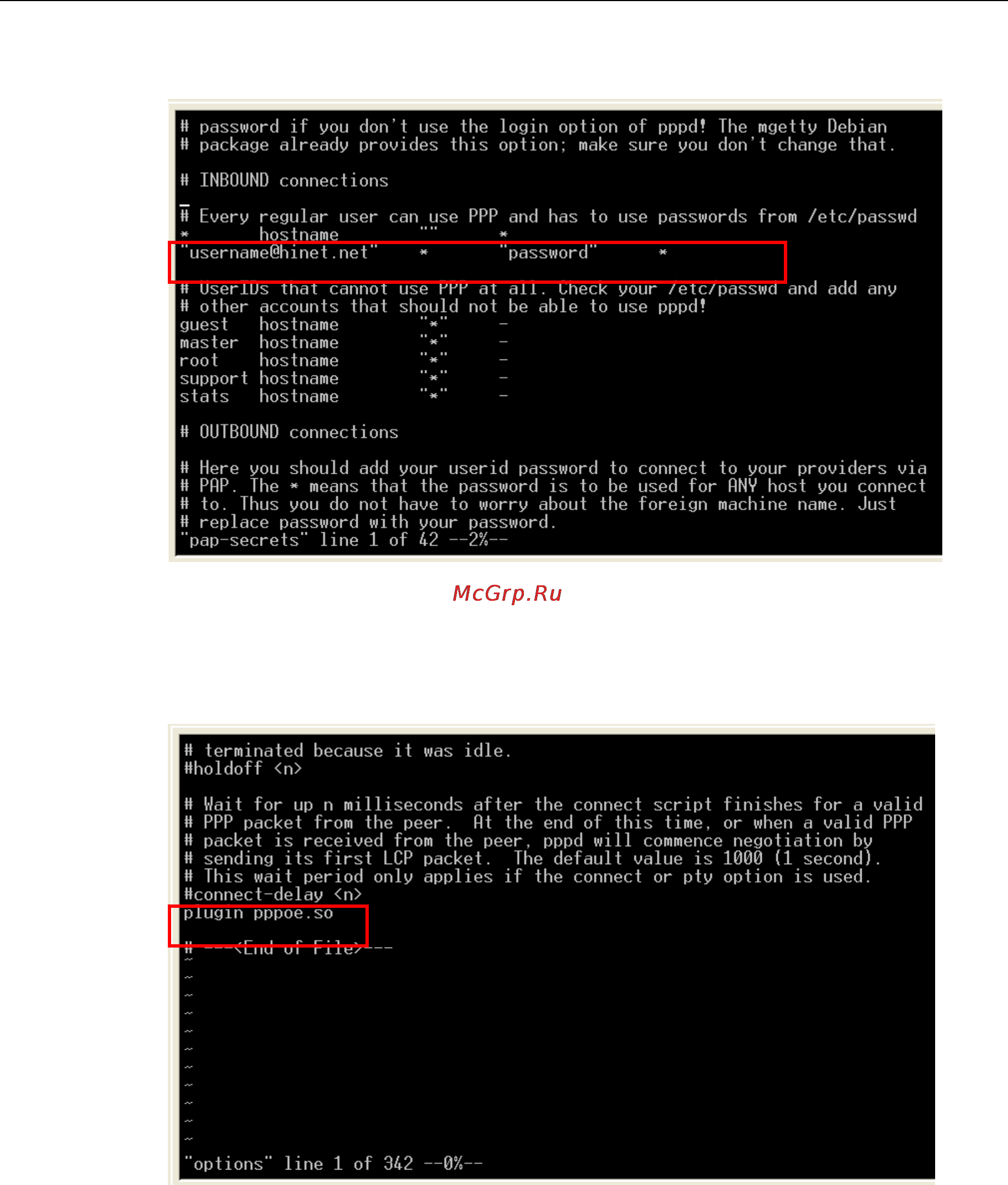

4. Edit the file /etc/ppp/pap-secrets and add the following text:

“username@hinet.net” * “password” *

“username@hinet.net” is the username obtained from the ISP to log in to the ISP account.

“password” is the corresponding password for the account.

5. Edit the file /etc/ppp/options and add the following line:

plugin pppoe
