V2616A Linux System Recovery

7-8

7. After the computer has powered down, remove the USB drive and store it in a safe place.

Step 4: Reset the BIOS to its Original State

Now you will need to return the boot priority to its original configuration so that the system will boot from the

original disk. This is done for two reasons; the first is security, so that the machine may not be rebooted from

unauthorized USB drives

The second reason, however, is functional: currently, if the V2616A is set to boot from the USB drive, then the

V2616A will hang any time a USB data drive (i.e.: non-bootable image) is inserted in the machine

at boot time. The V2616A does not currently have the capacity to distinguish between simple USB data drives

and boot-capable OS drives.

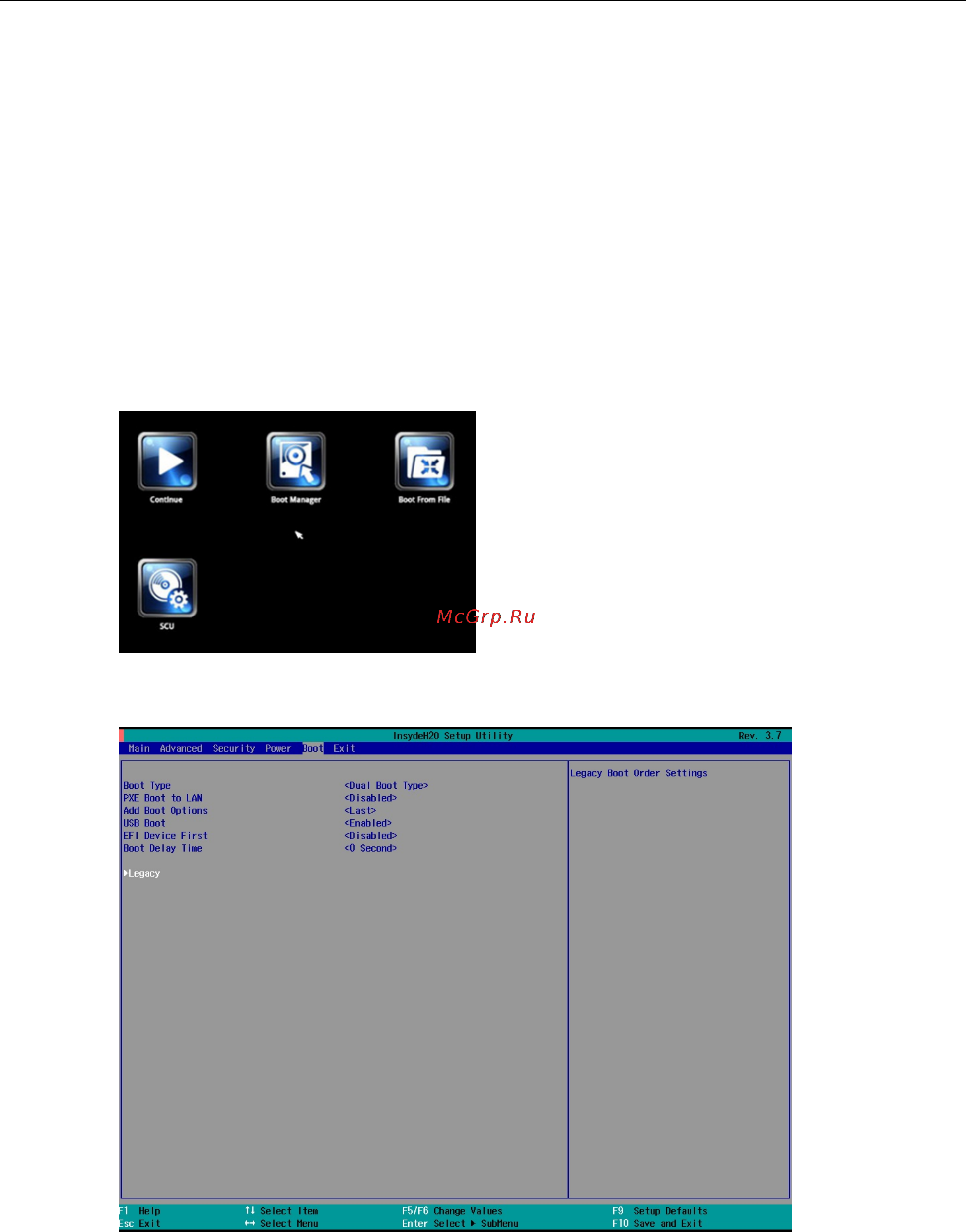

2. Reboot the system, and, during the POST process, press F2 until you hear a long beep. You should then

enter the BIOS setup menu. Select SCU to enter the BIOS setup menu.

5. Use the left/right arrow keys to navigate to the Boot tab, and then press Enter.

6. Use the up/down arrows to highlight Legacy in the boot tab’s menu, and press Enter.

7. Use the up/down arrow keys to navigate to the Boot Type Order link, and then press Enter.
