V2616A Linux System Recovery
7-9

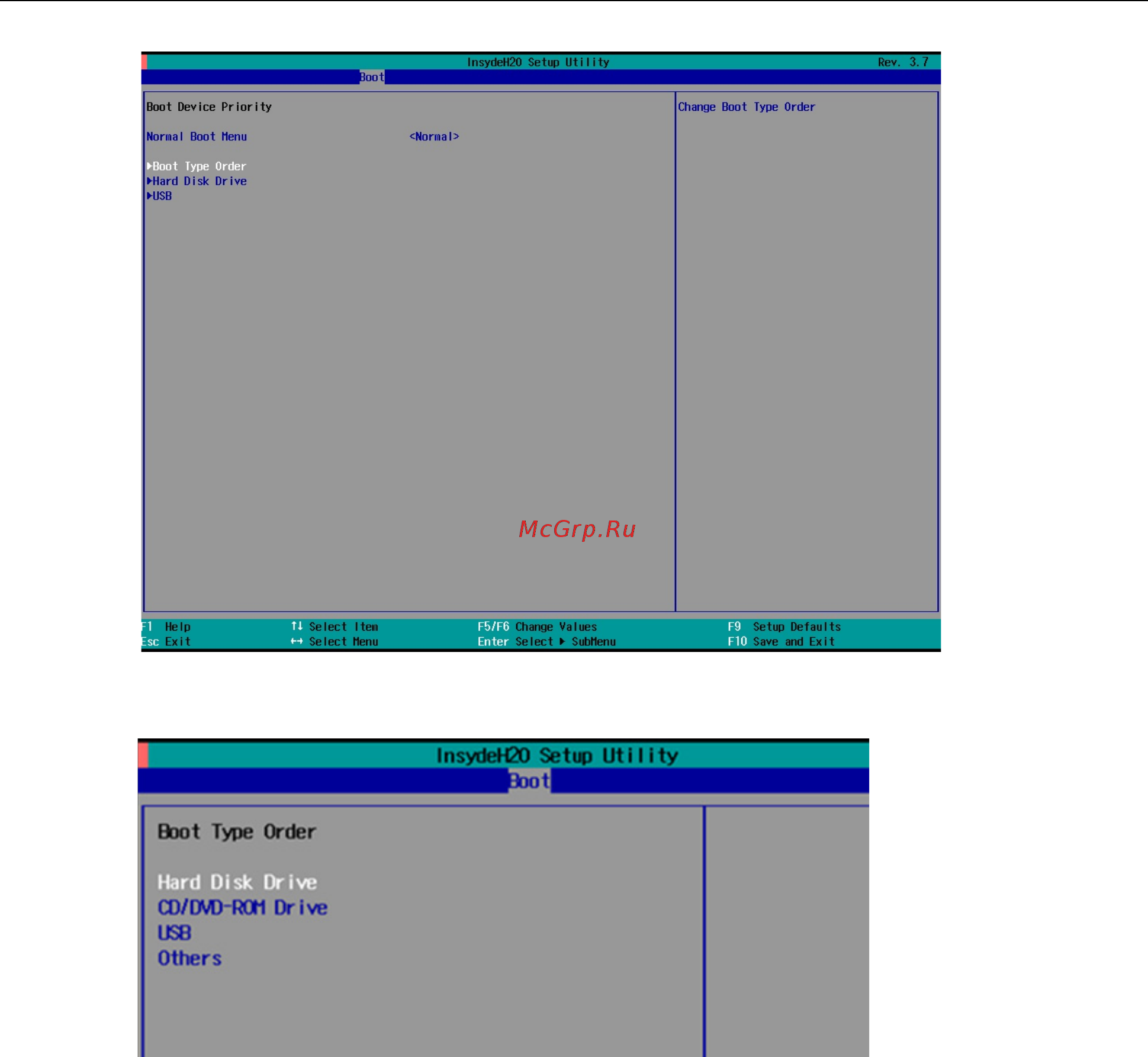

8. Use the up/down arrows to highlight Hard Disk Drive and then use the plus/minus signs (+ -) to move it
to the first boot priority position
9. Press F10 and then press Enter to save and exit the BIOS configuration interface. This should initiate the
next reboot, and your system should now boot from the USB drive.
