Autel MaxiCheck PRO [15/76] Unit of measure

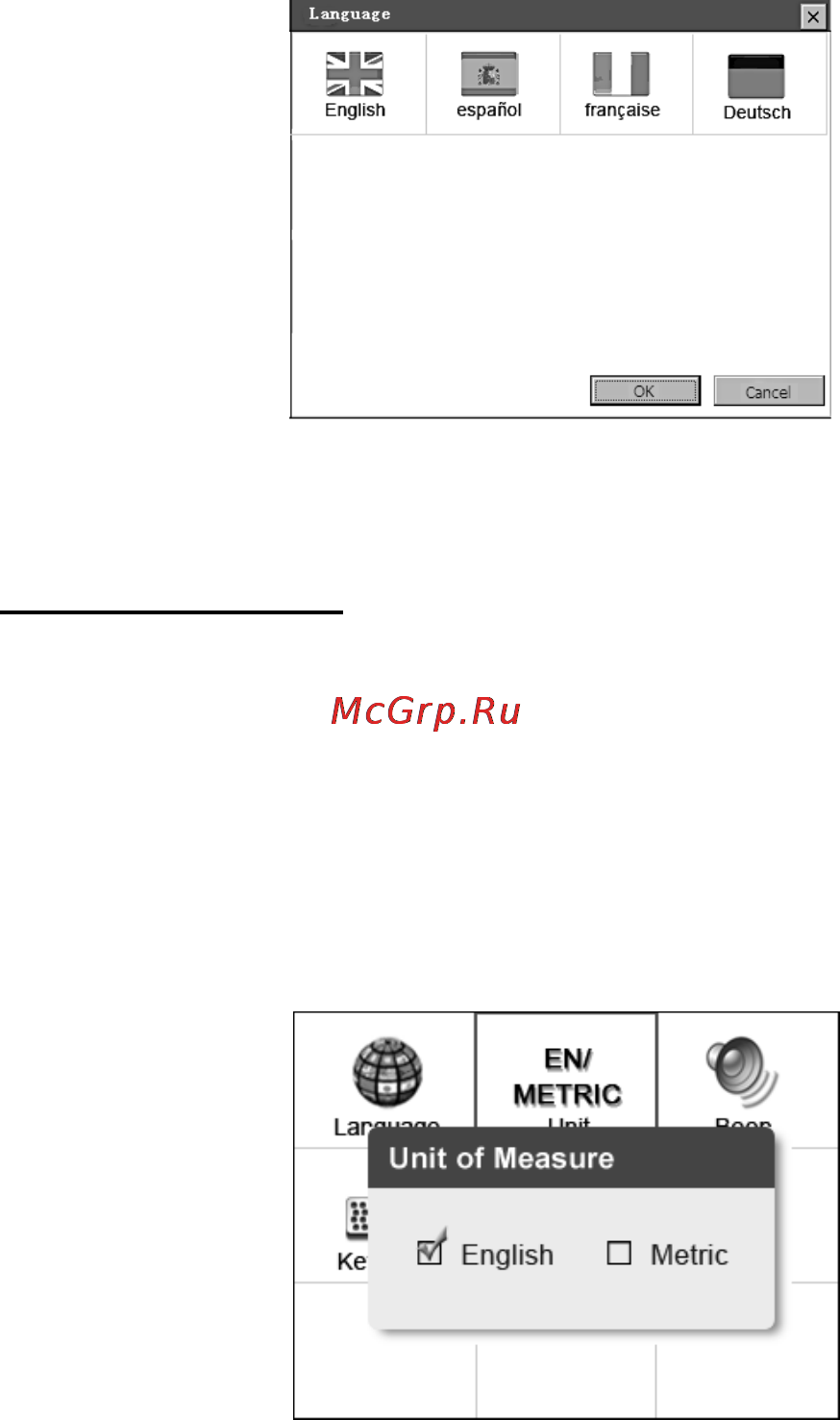

Figure 3.3

Unit of Measure

 Metric is the default measurement unit.

1) From System Setup screen, use the LEFT/RIGHT scroll button

to select EN/METRIC and press the OK button.

2) From Unit of Measure screen, use the LEFT/RIGHT scroll

button to select the desired unit of measurement. (Figure 3.4 )

Figure 3.4

3) Press the OK button to save your selection and return to previous

menu. Or, press the ESC button to exit without saving.
