Autel MaxiCheck PRO [17/76] Lcd test

LCD Test

The LCD Test function checks if the LCD display is working

normally.

1) From System Setup screen, use the UP/DOWN scroll button

and LEFT/RIGHT scroll button to select LCD Test, and press

the OK button.

2) Look for missing spots in the red, green, blue, black and white

LCD display.

3) When completed, press the ESC button to exit.

About

The About function allows viewing of some important information

such as serial number and software version number of the scanner.

1) From System Setup screen, use the UP/DOWN scroll button

and LEFT/RIGHT scroll button to select About and press the

OK button; wait for the About screen to appear.

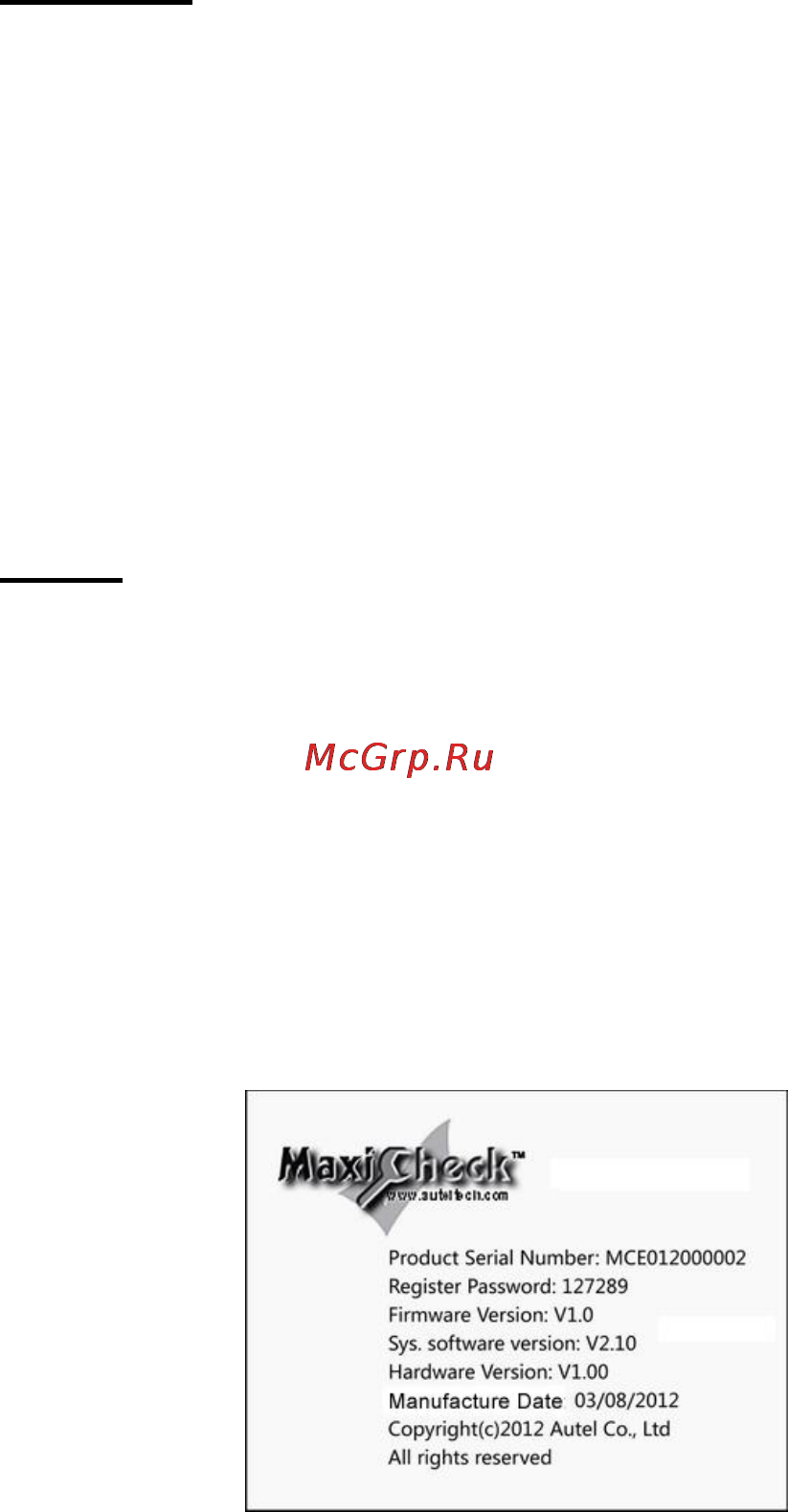

2) View tool information on screen. (Figure 3.6) Press the ESC

button to exit without saving.

Figure 3.6
