ioLogik W5300 Planning and Assistance
5-24
SMS Escalation and Acknowledgement
Scenario: In this example we describe how to use the SMS alarm function to configure escalation and
acknowledgement.
Setup Procedure

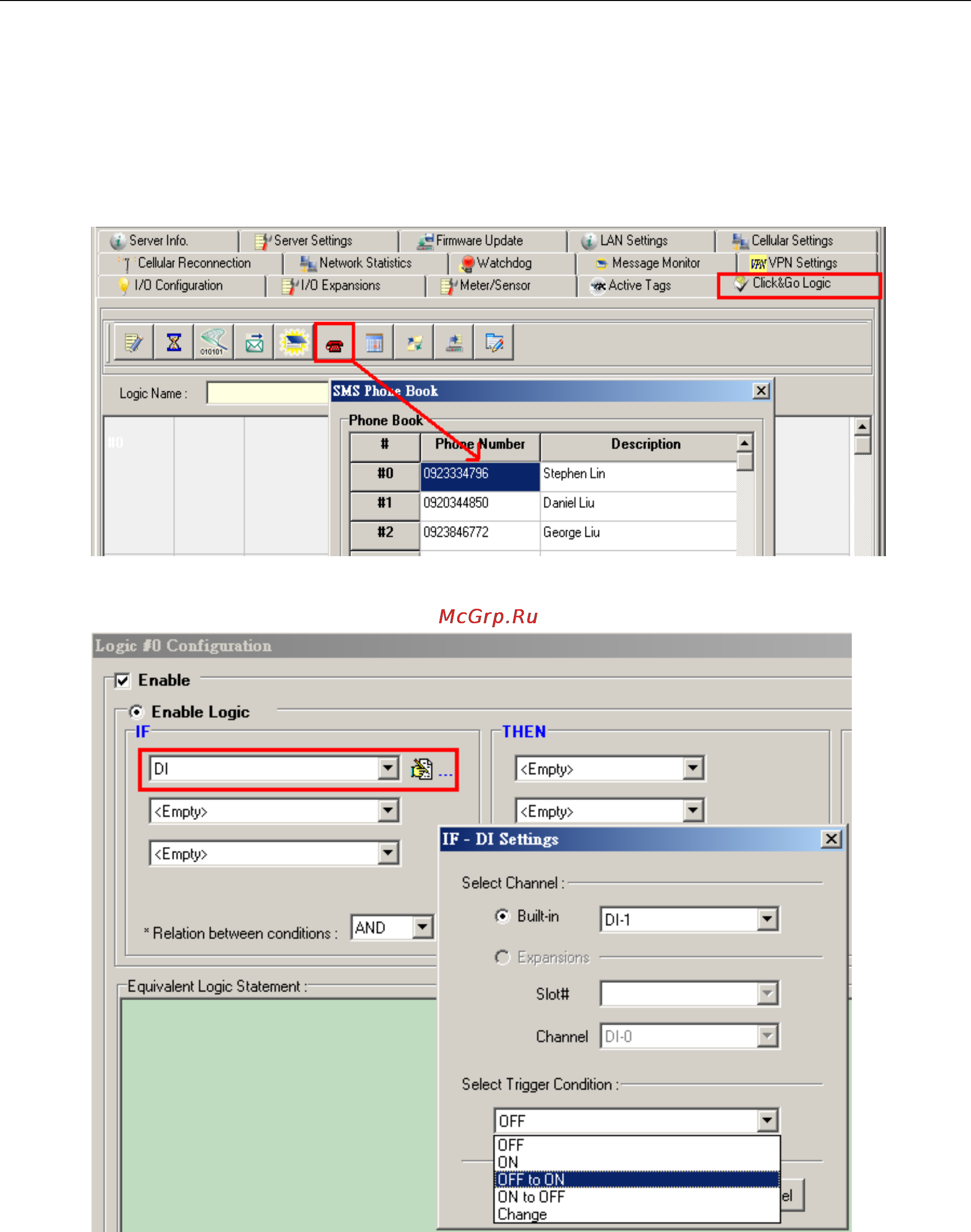

Step 1: First specify the SMS Phone Book on the Click&Go Logic panel.
Step 2: Double click the 1st rule to configure the logic to send out an SMS. In this example, DI = Off-to-On
triggers the SMS.
