ioLogik E2200 Series Initial Setup
2-5
Activating ioAdmin and Connecting to the ioLogik
1. Open ioAdmin: Click Start Program Files MOXA IO Server Utility ioAdmin.

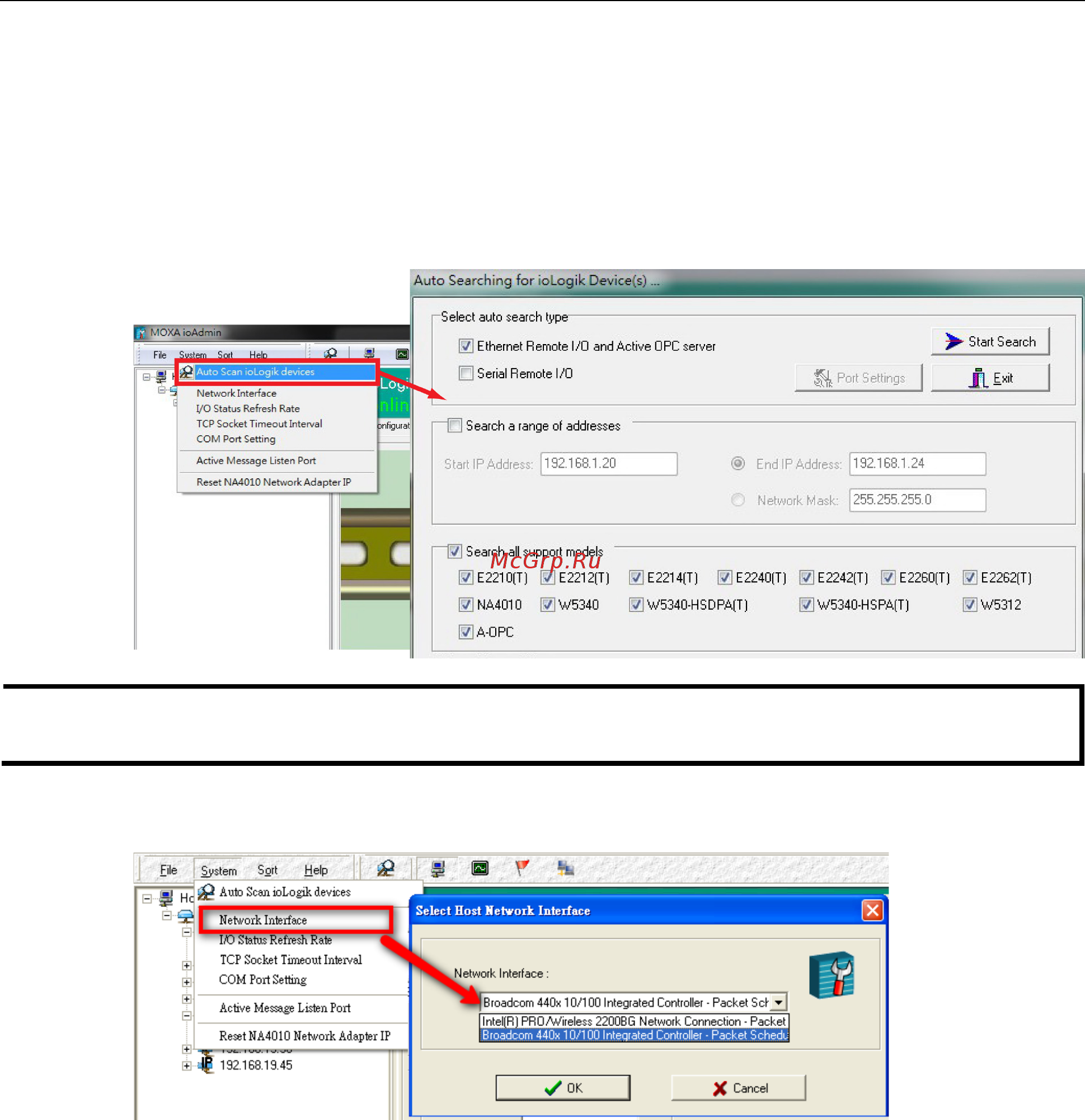

2. Search the network for the ioLogik: When ioAdmin is started, it will automatically run the auto search
program. You may also click System Auto Scan ioLogik device on the menu bar. A dialog window will
appear. Click Start Search to begin searching for your unit. Once the ioLogik has been detected, modify
the settings as needed for your network environment, and then restart the device.
NOTE
When setting up a previously configured ioLogik, first restore it to factory default settings by using the RESET
button
(see Chapter 1 for details). Then use the ioAdmin utility to configure the ioLogik device.
3. If the host computer supports multiple network interfaces, be sure to select the correct interface before
searching the network.
