ioLogik E2200 Series Initial Setup
2-7

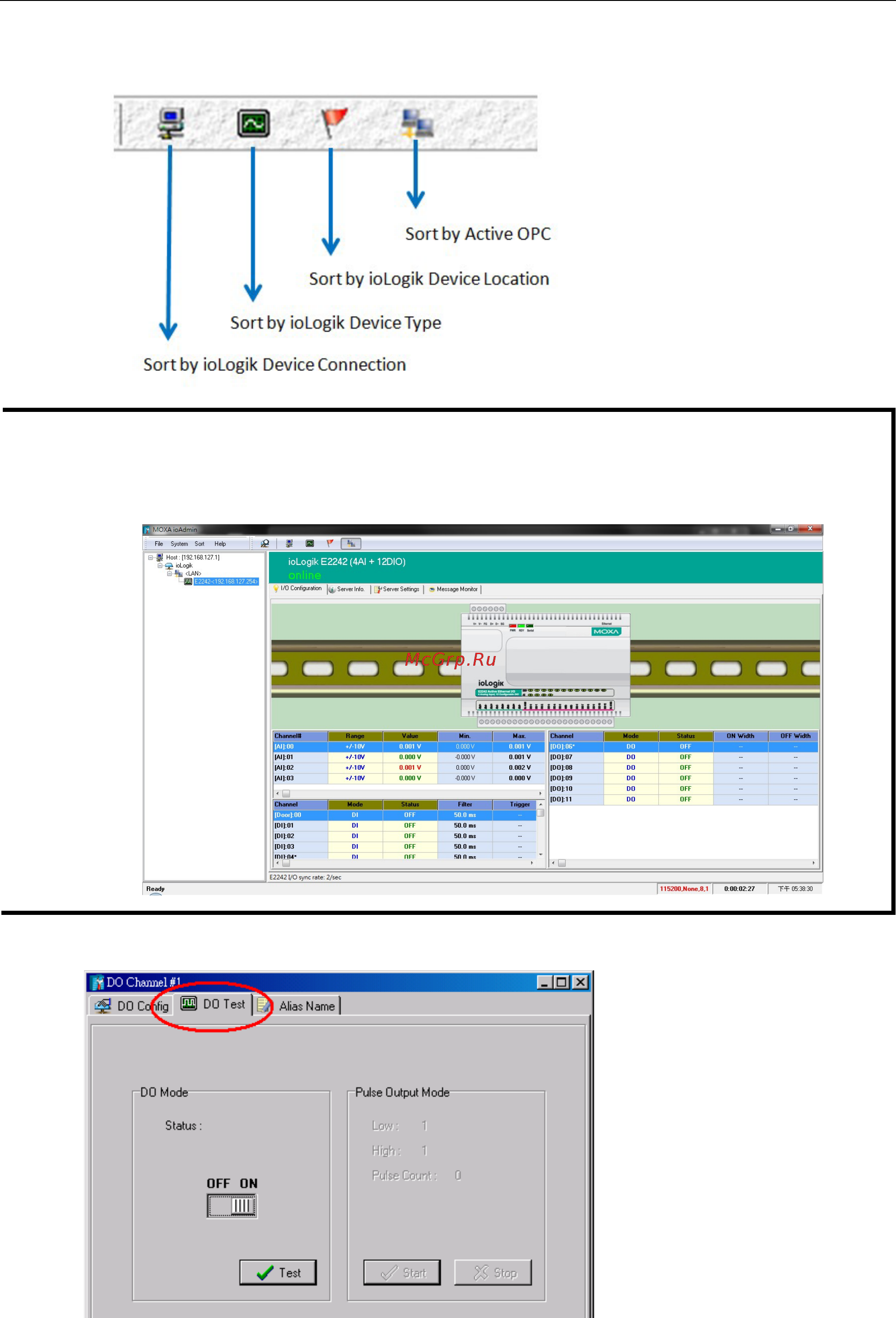

5. Monitoring and Testing I/O statuses: Once your unit has been detected by ioAdmin, you can view the
status of all connected I/O modules and devices on the ioAdmin main screen.
NOTE
ioAdmin supports four viewing options for the navigation panel. If you select
Sort by Active OPC Server
, the
ioLogik will appear in the Active OPC Server group.
Simultaneously, the same devices will be shown under the
<LAN>
group if the host computer is connected to the ioLogik’s Ethernet port instead of remote
ly over the
network.
You can test each DO channel by opening the channel’s configuration window and selecting the Test tab.
